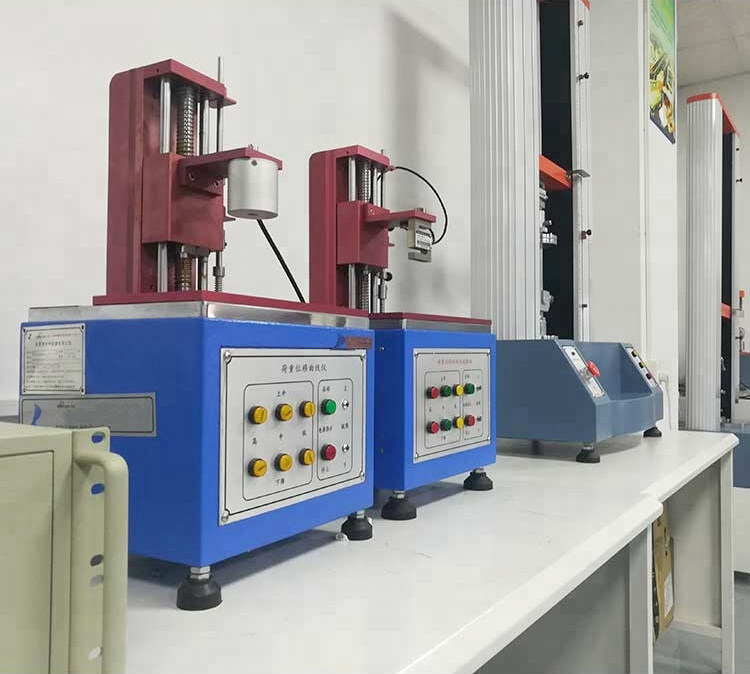

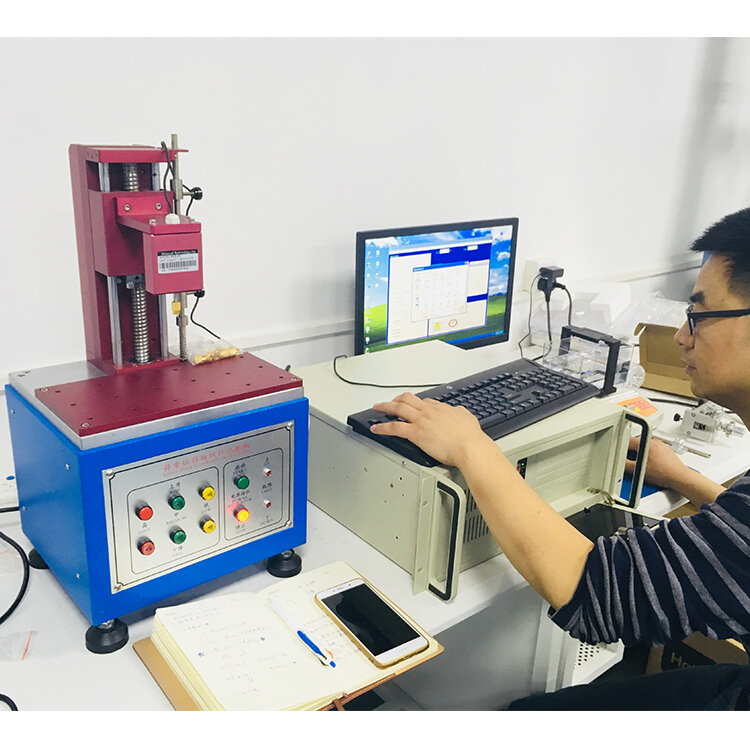

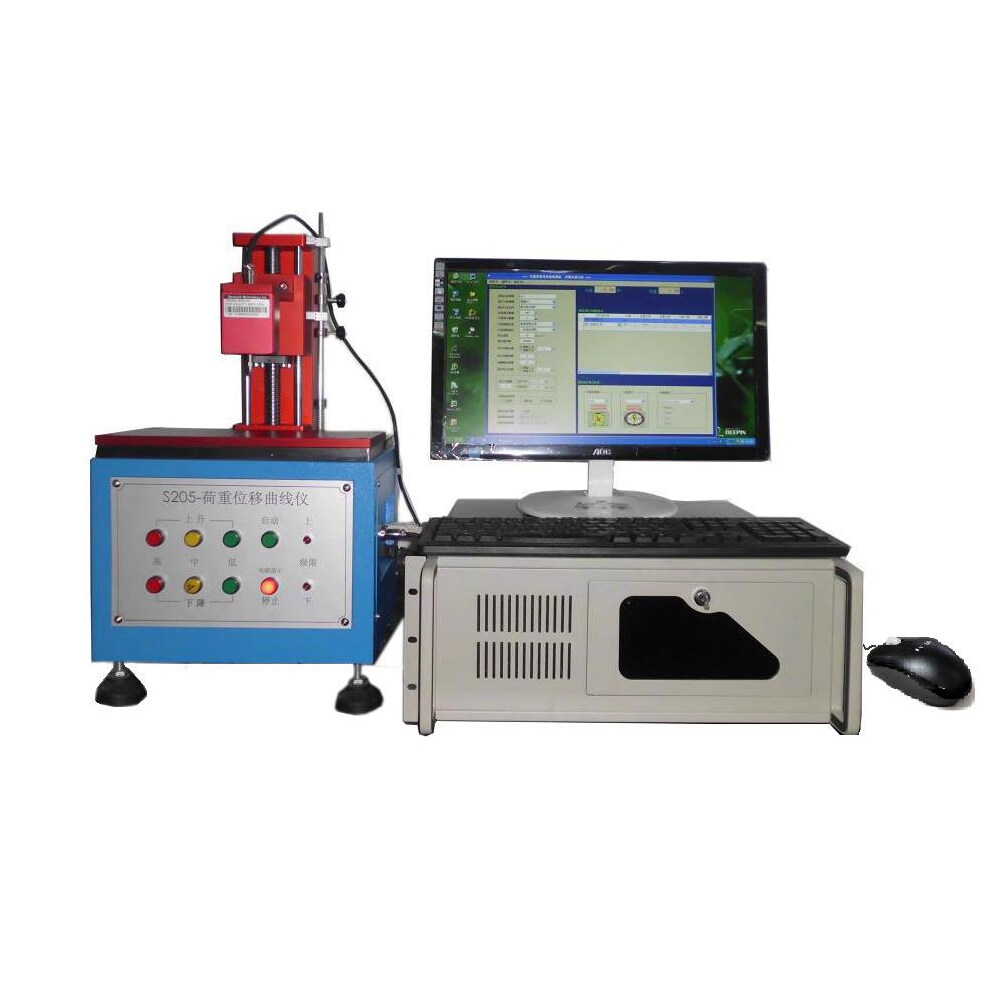

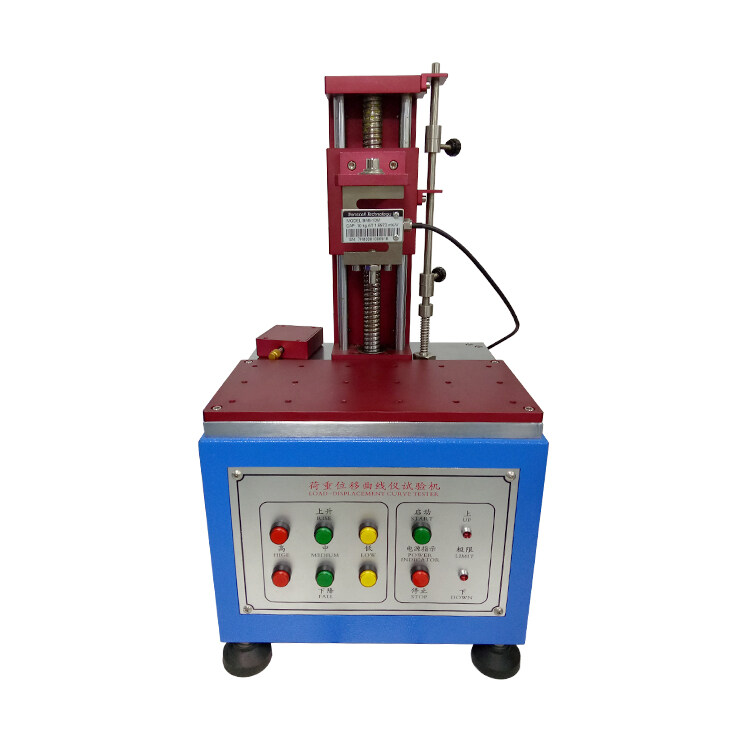

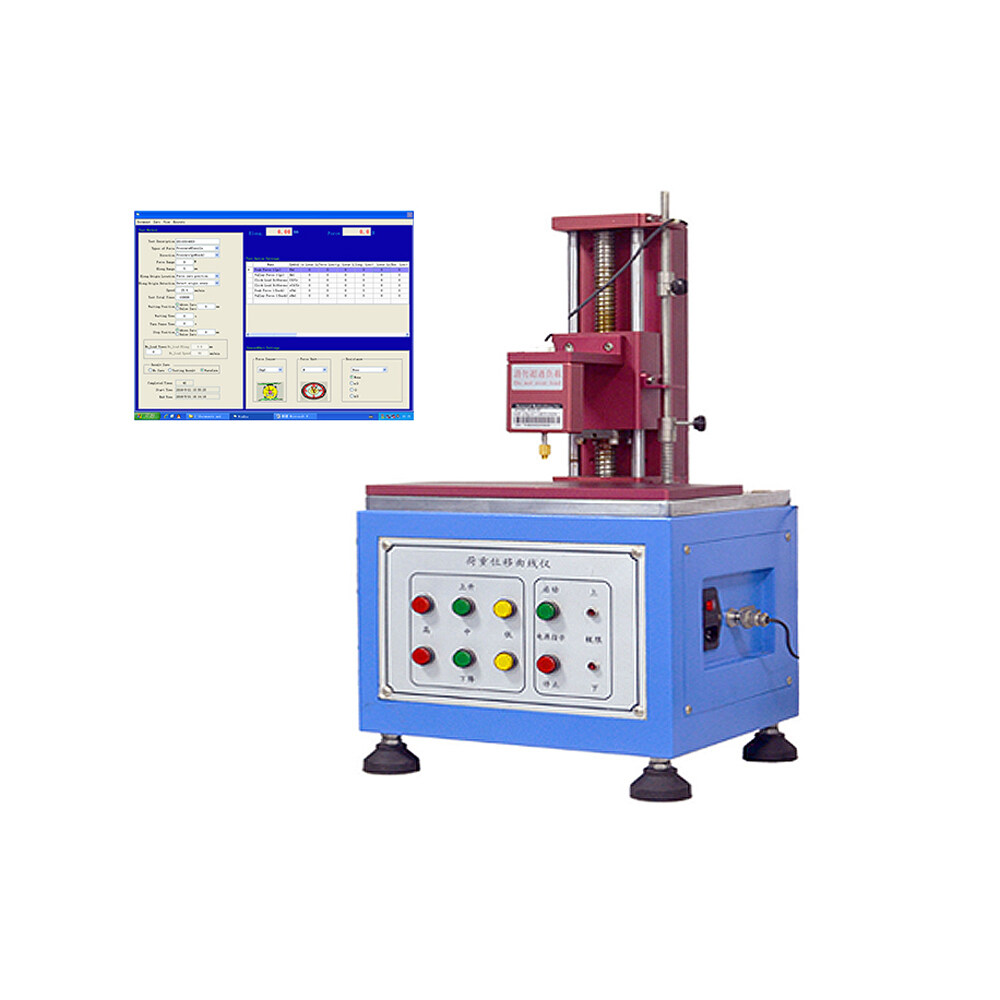

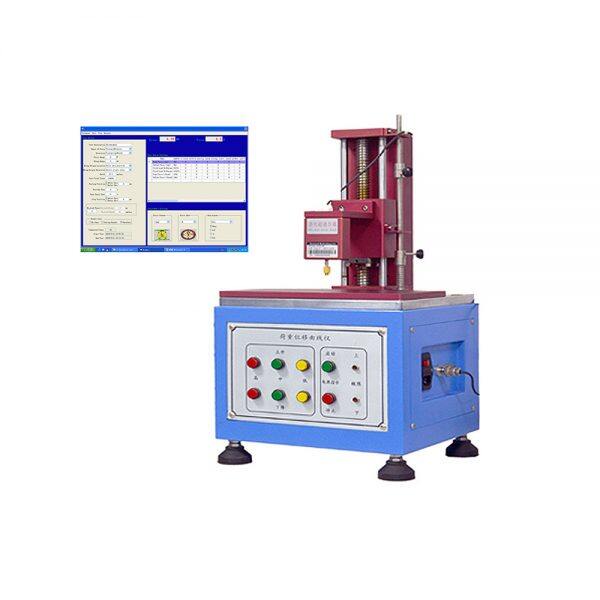

ZL-2816 Load Displacement Curve Testing Machine （for Key-switch）

Summary:

Key-switch load displacement curve tester is applicable to various keys and switches (load-displacement)

Test, simple and convenient operation, all data can be stored (test conditions, displacement curves, life curves, inspection reports —- etc.)

This machine is driven by a servo motor, which can provide high-precision(Load-displacement) measurement, you can get a completely accurate button and switch curve test.

Features:

1. PEAK FORCE, RETURNFORCE, DISTANCE and CLICK rates can be displayed directly on the graph without manual calculation.
2. The measurement curve is remembered by the computer and can be zoomed in and out at any time. An A4 paper can be placed arbitrarily designated N graphs.
3. Measurement items can be entered in the upper and lower specification values. The measurement results can be automatically determined OK or NO.
4. It can input the maximum measurement stroke and load, and the computer automatically controls.
5. Test reports can be converted to other report formats such as EXCEL.
6. Inspection reports can be generated automatically.
7. The inspection report header can be modified at any time.
8. The test conditions are set by the computer screen, convenient and fast.
9. Test data is stored on the hard disk. (Each data can be stored, unlimited times)
10. The computer prints and stores the force displacement curve directly and checks the report. (Not requiredSquare paper, usually A4 paper)
11. Load unit shows N, Ib, g, kg, can be switched freely.

Technical Parameter:
