Implementation Standard: IEC60851-5

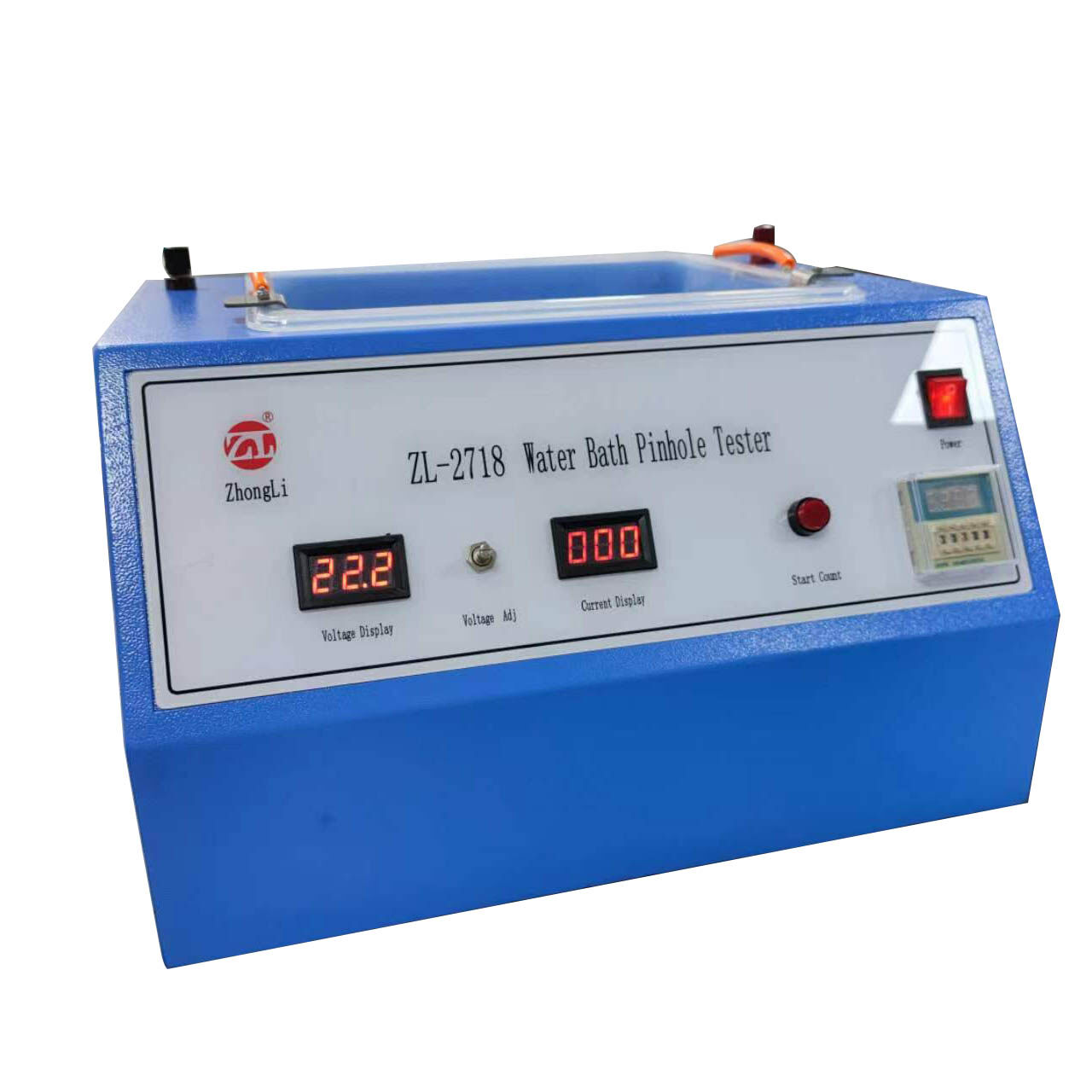

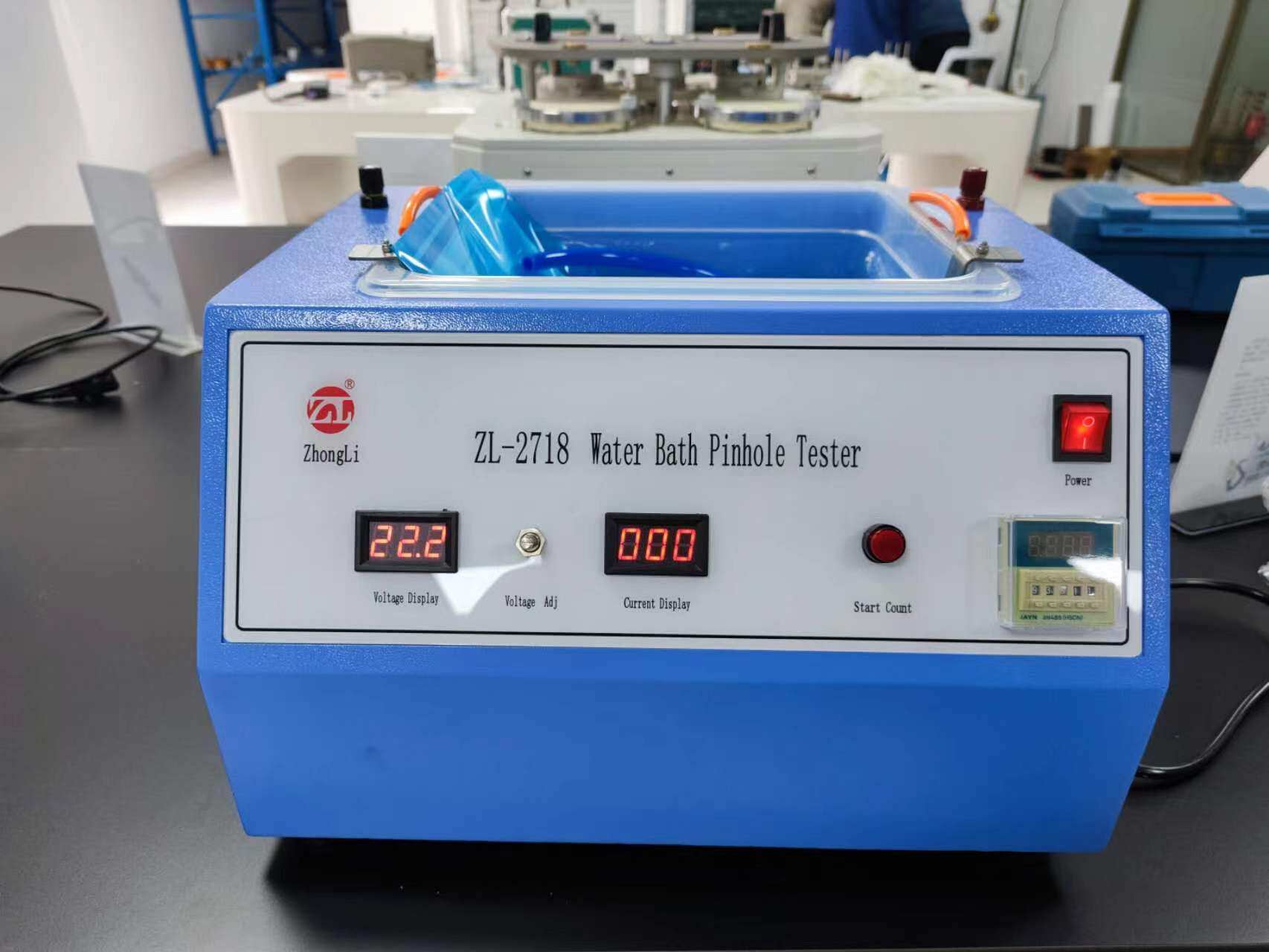

It is a prompt, simple and convenient tester applied to test pinholes of enameled wires.
It is applied to all enameled wires without limitation of the wire diameter or specification.
It operates simply. Its testing results are direct, stable and reliable.
Product Description:
Implementation Standard: IEC60851-5
It is a prompt, simple and convenient tester applied to test pinholes of enameled wires.
It is applied to all enameled wires without limitation of the wire diameter or specification.
It operates simply. Its testing results are direct, stable and reliable.
The Main Technical Parameters:
|
Testing Voltage |
DC3-24V Preset |
|
Density of Sodium Chloride |
2g/L |
|
Phenolphthalein Ethanol Solution |
30g/L |
|
Short-Circuit Current |
<150mA |
|
Cubage of Salt Water Bath |
2500ml |
|
Time of Sample Immersed |
1s-99min59s Preset |
|
Input Power Supply |
AC220V±10% 50Hz |
|
Consumed Power |
≤50W |
|
Dimension |
520×350×340mm(L×W×H) |
|
Weight |
17kg |
