Features:

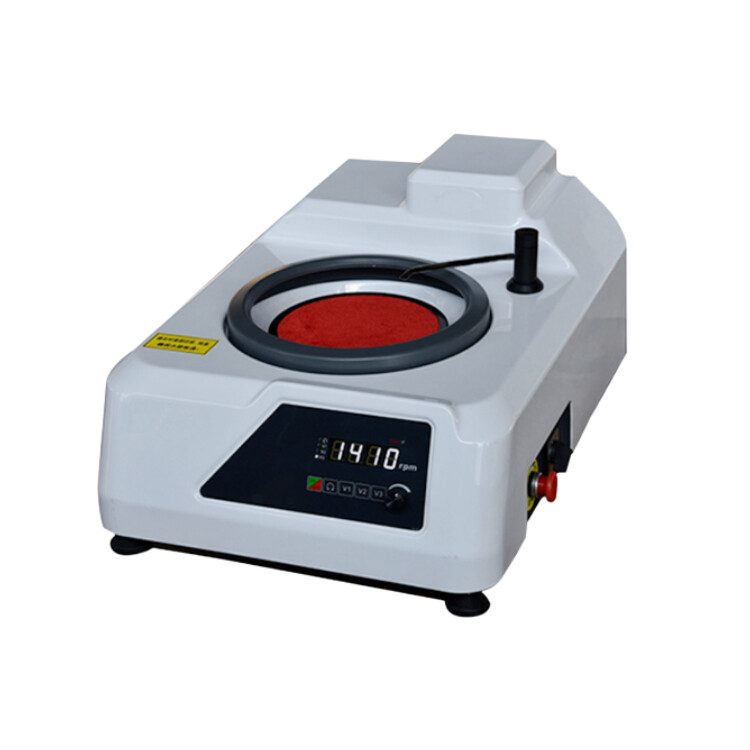

MPS-1B series grinding and polishing machine is a newly developed grinding and polishing machine with grinding and polishing function for the current market. It has the characteristics of simple and fashionable appearance, strong practical function and so on. One design patent and one utility model patent have been obtained.
Using ABS shell mold forming, thickened steel bottom plate, the whole machine is firm and beautiful;
u The control part adopts 3 versions:
1) Fixed speed switch direct drive;
2) 0.8-inch large LED screen display, non-contact touch switch, stepless speed regulation;
3) 5-inch 32-bit true color screen, touch screen speed regulation.
The speed regulating type is equipped with an AC servo motor, which has the characteristics of large torque at low speed, low noise, and stable high speed;
The top of the grinding and polishing plate has a water cooling device, the bottom has a dirt washing device, and the double-disc and double-drainage ports are not easy to be fouled and blocked;
The cooling water nozzle adopts a floating type, which can be used for all-round cleaning of the grinding and polishing disc and workpiece after being pulled out, which is convenient and practical;
The whole machine adopts modular design, which is convenient for maintenance and repair.
Technical Parameters:
|
Grinding and polishing disc diameter
|
φ203mm (standard), φ250mm (customized)
|
|
Grinding and polishing disc speed
|
V1: 300 r/min V2: 600 r/min V3: 0-1400 r/min(stepless adjustable)
|
|
Turning of grinding and polishing disc
|
Left and right rotation adjustable
|
|
Water inlet pressure
|
0.6MPa
|
|
Input voltage
|
AC220V (other standard voltages can be customized)
|
|
Machine power
|
Less than 750W
|
|
Dimensions
|
820mm×660mm×303mm (length×width×height)
|
|
Quality of the whole machine
|
25kg
|
