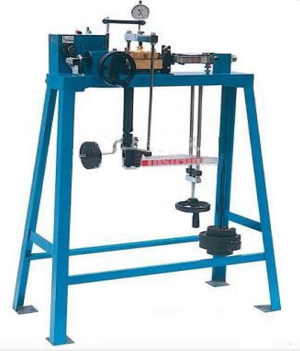

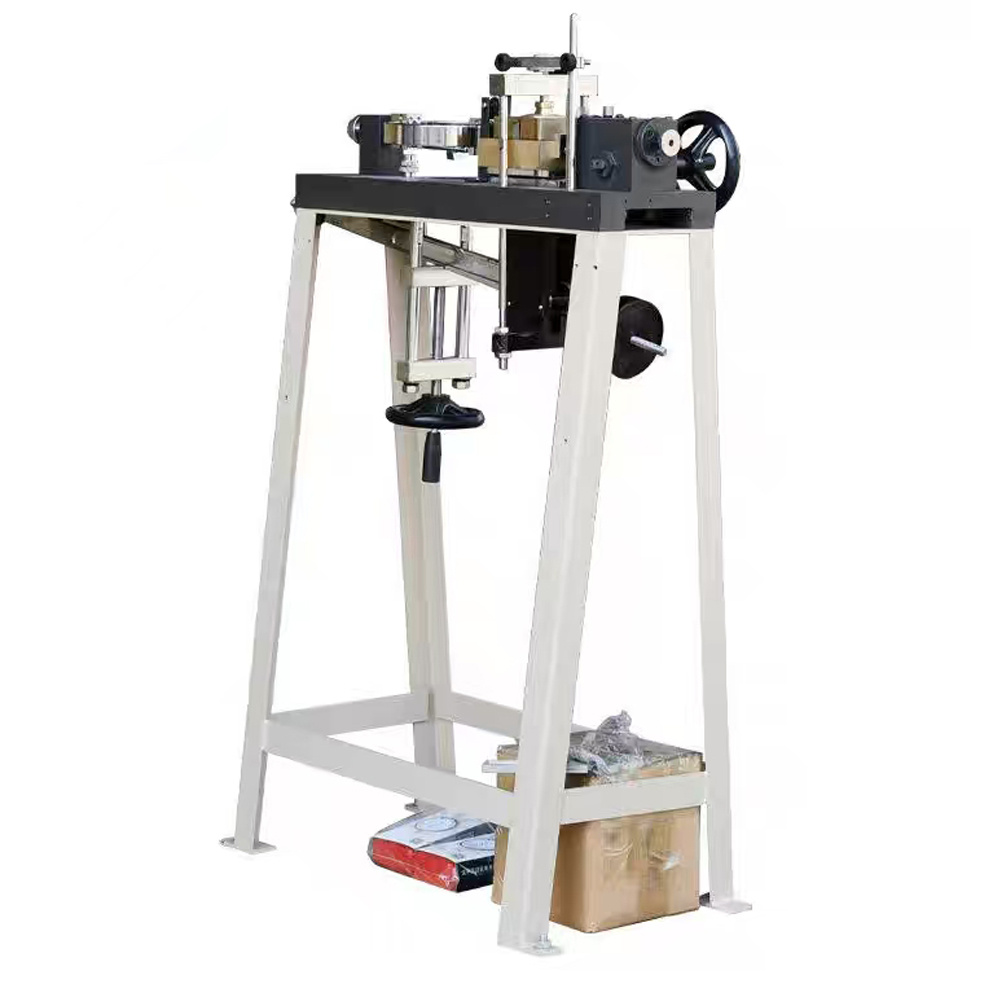

ZL-2416 Soil Strain Type Direct Shear Instrument

This instrument is primarily used to determine the shear strength of soil. Typically, four soil samples are tested. Each sample is subjected to different vertical pressures (selectable from 400 kPa, 300 kPa, 200 kPa, 100 kPa, and 50 kPa), and a horizontal force is applied to induce shear failure. The shear stress at failure is measured, and the shear strength parameters of the soil—the angle of internal friction and cohesion—are determined according to Coulomb’s law.

(Compliant with standards: T0140-1993/T0141-1993/T0142-1993/T0143-1993/T0176-2007 of JTG E40-2007).

Portable instrument net weight (including weights): 40 kg, dimensions (430*270*700) mm

Manual instrument net weight (including weights): 55 kg, dimensions (630*350*1050) mm

Purpose:

This instrument is primarily used to determine the shear strength of soil. Typically, four soil samples are tested. Each sample is subjected to different vertical pressures (selectable from 400 kPa, 300 kPa, 200 kPa, 100 kPa, and 50 kPa), and a horizontal force is applied to induce shear failure. The shear stress at failure is measured, and the shear strength parameters of the soil—the angle of internal friction and cohesion—are determined according to Coulomb’s law.

(Compliant with standards: T0140-1993/T0141-1993/T0142-1993/T0143-1993/T0176-2007 of JTG E40-2007).

Portable instrument net weight (including weights): 40 kg, dimensions (430*270*700) mm

Manual instrument net weight (including weights): 55 kg, dimensions (630*350*1050) mm



Technical Specifications:

  1. Sample area: 30 cm², height: 20 mm.
  2. Lever ratio: 1:20
  3. Maximum horizontal load: 1.2 kN
  4. Vertical graded loading: 50, 100, 200, 300, 400 kPa (the hanging tray serves as the first load). Refer to the table below:



Direct Shear Instrument

Soil Sample (Vertical Pressure) Loading Sequence Table

30cm²                            i=1:20

Number

Load weight

Quantity (cumulative)

pressure value

Kg

Piece

Kpa

1

0.765(Hanging plate)

1

50

2

0.765

1

100

3

1.53

1

200

4

1.53

1

300

5

1.53

1

400



Features:

  1. The push rod advances by 0.2 mm per revolution of the handwheel, driving the shear box for shearing.
  2. The shear box specimen has an area of 30 cm² and a height of 20 mm.
  3. The lever ratio is 1:20. Additional weights include three 1.53 kg weights and two 0.765 kg weights (one of the 0.765 kg weights is placed on the hanging tray). The lever pivot is equipped with a rolling bearing. During horizontal shear force application, the load ring deforms, causing the loading frame to shift. The rolling bearing tracks this movement to prevent frame tilting and avoid changes in vertical pressure orientation.
  4. The instrument uses a circular load ring with a maximum capacity of 1.2 kN. Rolling bearings are employed for guidance and positioning.



Packing List:

  1. 1.53 kg Weight × 3 pcs
  2. 0.765 kg Weight × 1 pc
  3. Hanging Tray (0.765 kg) × 1 pc
  4. Cutting Ring (φ61.8 mm) × 1 pc
  5. Steel Ball × 15 pcs
  6. User Manual × 1 copy
  7. Load Ring Calibration Chart × 1 copy
  8. Container Mold (30 cm²) × 1 set
  9. Load Ring × 1 set
  10. Gauge Clamp Column × 1 pc
  11. Gauge Clamp Column × 1 pc
  12. φ61.8 mm Porous Stone × 2 pcs
  13. Right Angle Ruler × 1 pc
