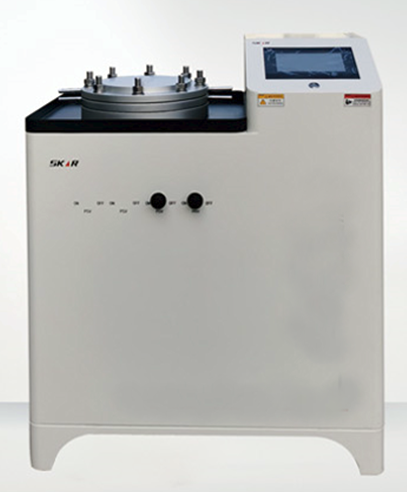

Geosynthetic material hydrostatic pressure tester is also called geomembrane impermeability tester, geosynthetic impermeability tester. It is suitable for testing the permeability coefficient of geomembrane and geocomposite material under the specified hydraulic pressure difference. Stable performance, convenient and practical.
Technical Parameter
|
Test accuracy |
0.5% |
|
Through hole diameter of perforated plate |
ф3mm |
|
Diameter of water collector |
ф200mm |
|
Pressure adjustment range |
2.5MPa |
|
Sample size |
ф200mm, effective cross-sectional area ≥200cm2 |
|
Dimensions |
600×750×1200mm |
|
power supply |
AC380V |
|
Total Weight |
87kg |
