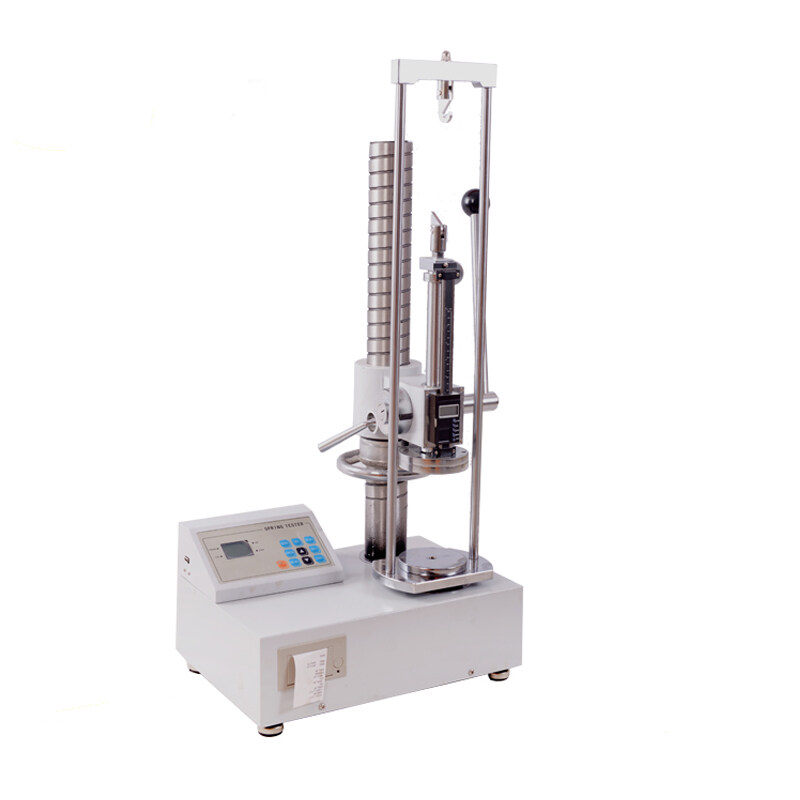

ZL-2106 Manual Liquid Crystal Display Spring Tension

Categories:

Manual type spring tension and compression testing machine name:(1000, 2000) N manual liquid crystal display spring tension and compression testing machine

According to the spring and a pressure spring of different sizes, we put the spring testing machine is divided into manual spring testing machine and electric spring testing machine (including automatic spring tester and microcomputer controlled spring testing machine);

According to different detection of spring each manufacturer requirements, we also divided into liquid crystal digital display type spring testing machine and computer control type spring testing machine;

We have been committed to R & D and manufacturing of spring testing equipment, and according to the different requirements of customers and the development suited to their use of unconventional spring detection device, as long as the detection and spring related please give us to do, look forward to your call letters!

Product overview

TLS-S-I high precision spring tension and compression testing machine is based on the requirements of JB/T 7796-1995 spring tension and compression testing machine standard production technology. Is mainly on various spiral spring tensile and compression tests, in addition to piston ring tension of the elastic test.Determination of test force of the spring in the displacement under a certain amount of determination, or the spring in the test force under a certain amount of deformation, can also be used to test other elastic element and small mechanical properties, mainly used for spring factory, low voltage electrical appliance factory,power machinery factory, universities and scientific research units.

Maximum testing load

10N

20N

30N

50N

100N

150N

200N

300N

500N

1000N

2000N

3000N

5000N

Minimum resolution

0.001N

0.01N

0.1N

Diameter of the platen

34mm

48mm

108mm

Maximum free length of measurable spring

80mm

150mm

200mm

Length of travel of the displacement scale

60mm

90mm

150mm

Division value of the displacement scale

0.01mm

Indication error

±1%

Power Supply

AC 110-220V, 50HZ-60HZ

Power capability (without printer)

13W

Power capability (with printer)

20W

Working temperature

20±10℃

Temperature of storage and transportation

-27℃～+70℃

Relative temperature

15%～80%RH
