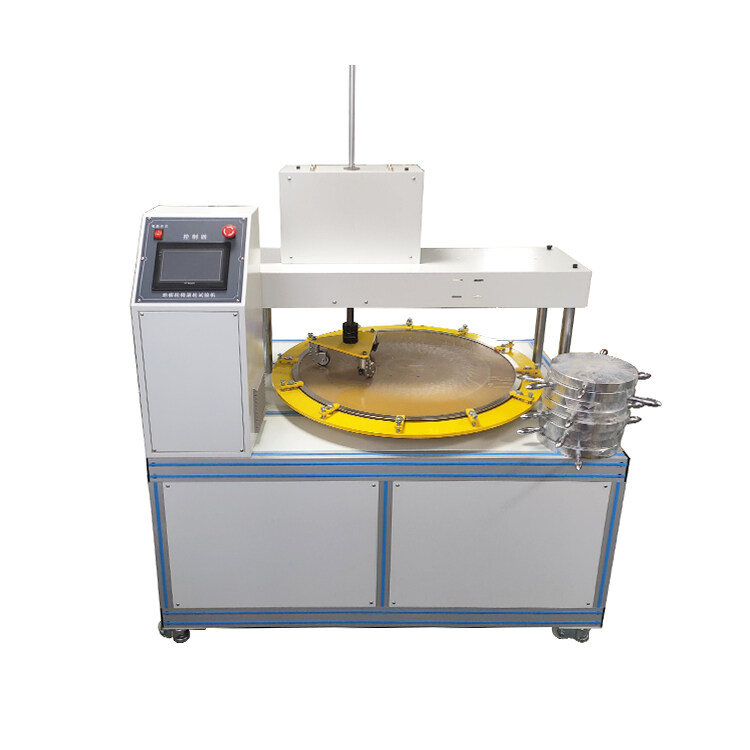

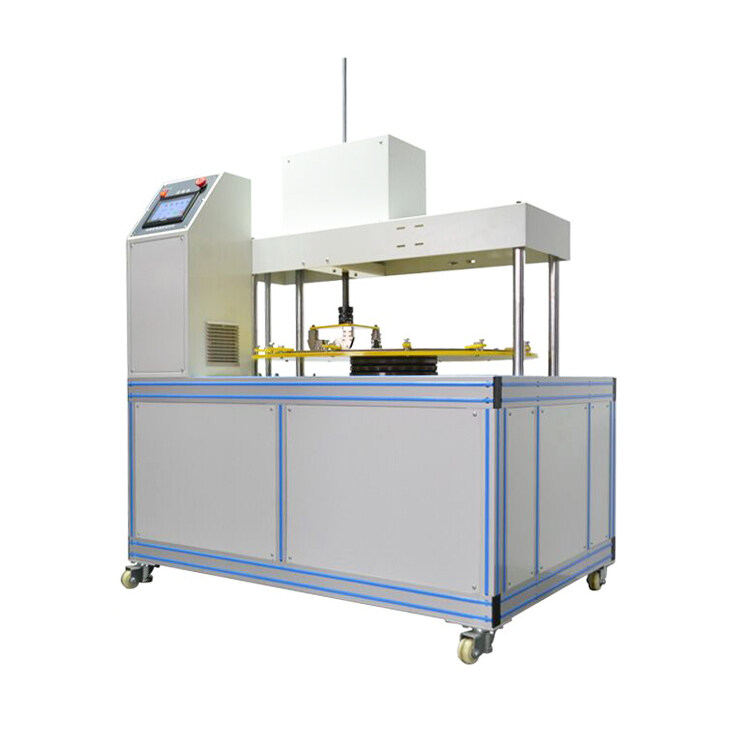

Caster abrasion tester, also known as caster floor tester, floor surface caster method tester, caster simulation method floor performance tester, etc.
This testing machine through the automatic lifting and landing of 3 standard specification wheels on the turntable, to test the state of no load and full load wheels and its contact with the bottom plate wear, really reflect the characteristics of the floor.After the test was completed, 800mm away from the specimen under the standard light source, the specimen was observed from the direction of 45° Angle, and the observation table was slowly rotated to observe whether there were delamination, cracking, joint unbuttoning and other damages in each direction of the specimen.
Overview:
Caster abrasion tester, also known as caster floor tester, floor surface caster method tester, caster simulation method floor performance tester, etc.
This testing machine through the automatic lifting and landing of 3 standard specification wheels on the turntable, to test the state of no load and full load wheels and its contact with the bottom plate wear, really reflect the characteristics of the floor.After the test was completed, 800mm away from the specimen under the standard light source, the specimen was observed from the direction of 45° Angle, and the observation table was slowly rotated to observe whether there were delamination, cracking, joint unbuttoning and other damages in each direction of the specimen.
Main technical parameters :
|
Load |
90KG (can be adjusted) |
|
The platform diameter |
750mm |
|
Test speed |
rotary table: (20 + 0 / -1) r / min, caster assembly (50 ± 1) r / min |
|
The counter |
is up to 25,000 times (can be set) |
Features:
The test machine is equipped with automatic counting and automatic transmission functions, the test base can be convenient to replace the test floor, the turntable is equipped with 3 roller mounting card, convenient to disassemble and install the roller, the machine structure is made of steel, abrasion resistance, high strength, to ensure that the flatness and verticality of the frame in the state of full load experiment within the tolerance range.
Working principle:
The movable and adjustable chair casters are controlled by the caster abrasion test machine, and the elastic floor and laminated floor coverings are placed on the test bench. The device activates the casters to act on the elastic floor and laminated floor coverings already placed on the test bench. On the object, and do the friction test for multiple times. After the specified test time or number of times, it will automatically stop and remove the sample to see its change!
Test requirements:
