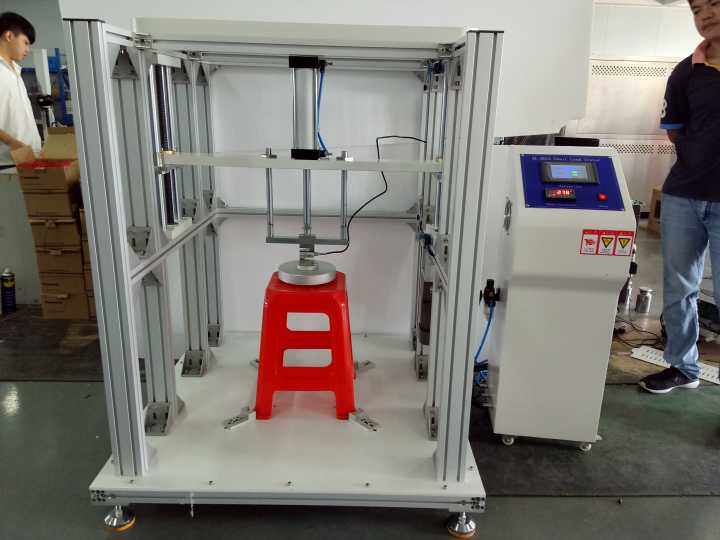

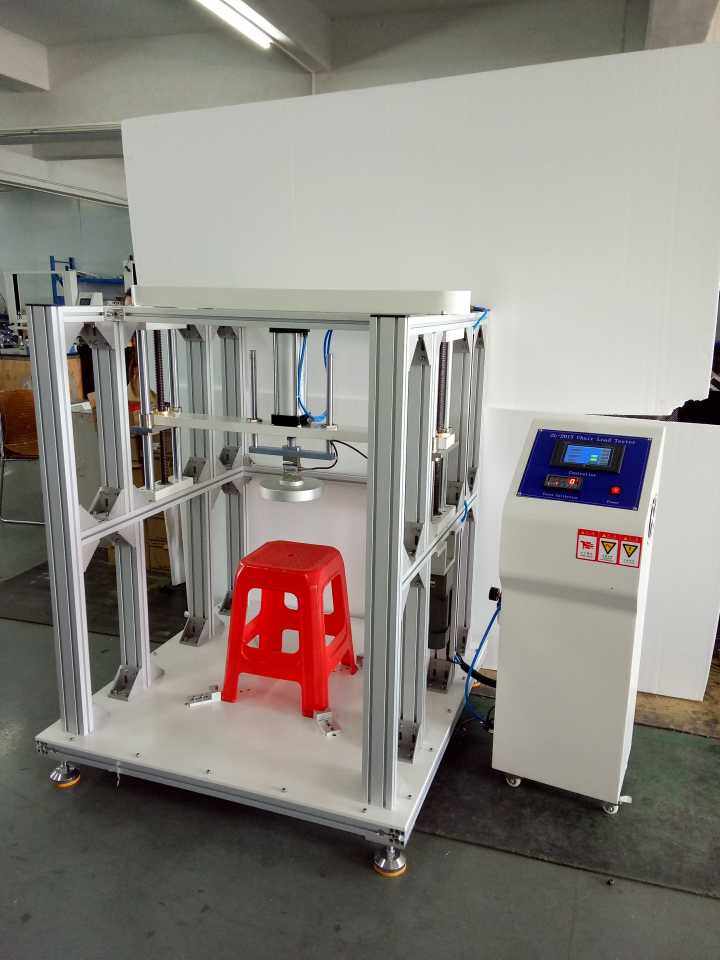

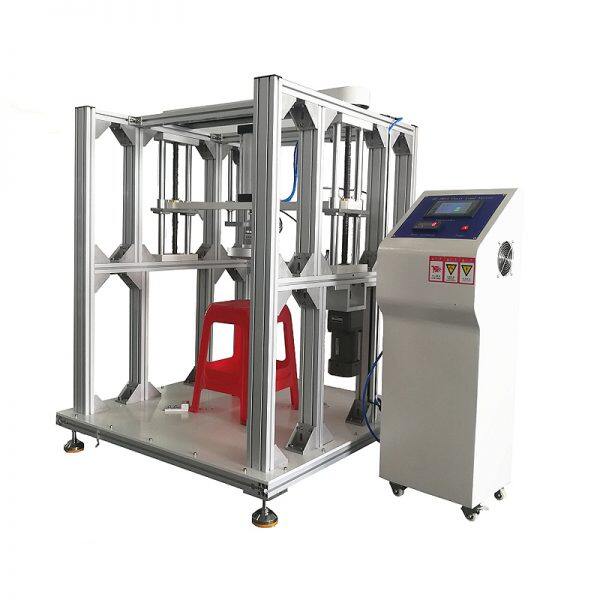

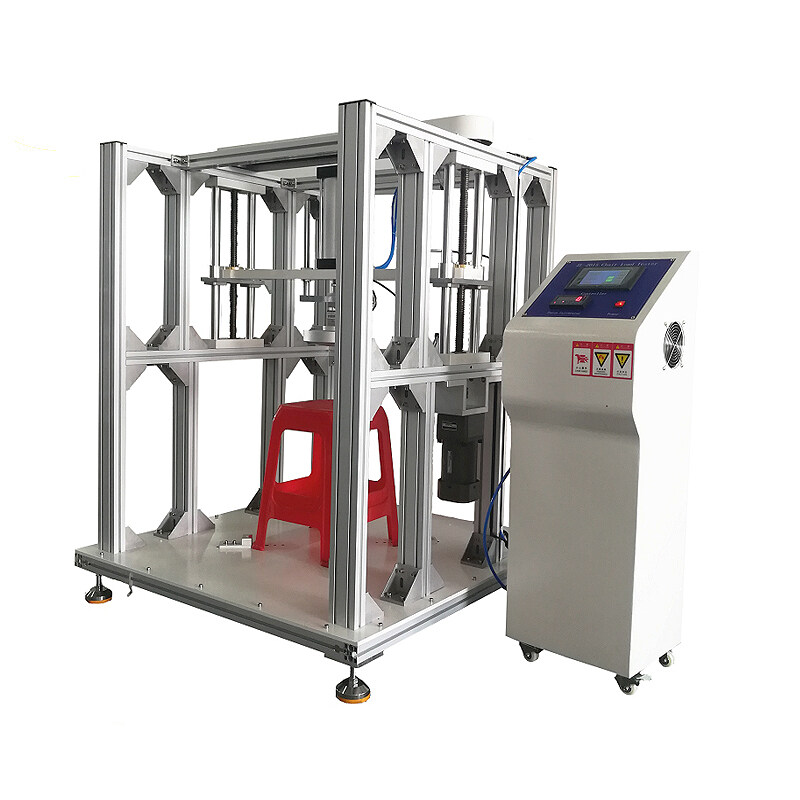

This testing machine uses aluminum profiles to make the frame, which is beautiful and elegant;
This testing machine is suitable for impact testing of the finished products of various furniture used in households, hotels, restaurants and other occasions, simulating the strength of the desktop when the furniture is accidentally subjected to impact loads during normal daily use and habitual misuse.
Introduction:
This testing machine uses aluminum profiles to make the frame, which is beautiful and elegant;
This testing machine is suitable for impact testing of the finished products of various furniture used in households, hotels, restaurants and other occasions, simulating the strength of the desktop when the furniture is accidentally subjected to impact loads during normal daily use and habitual misuse.
Reference Standard:
QB/T2280 BIFMA X5.1
Technical Parameter:
|
Impact Bag Diameter |
400mm |
|
Impact Head Specifications |
Φ=200mm, spherical radius=300mm, rounding radius=12mm |
|
Coil Compression Spring Assembly Coefficient Of Elasticity |
6.9±1N/mm |
|
Helical compression spring assembly pre-compression force |
1040±0.45N |
|
helical compression spring assembly in compression |
≥60mm |
|
Friction of the moving part of the helical compression spring assembly |
0.25-0.45N |
|
Impactor Quality |
25±0.1KG |
|
Test Height |
0mm to 300mm adjustable |
|
Power Supply |
AC 220V 50Hz 5A |
|
Overall Size (length*width*height) |
1460*1260*2400mm |
|
Weight |
500KG |
|
Air Source |
7kgf/cm^2 stable air source |
