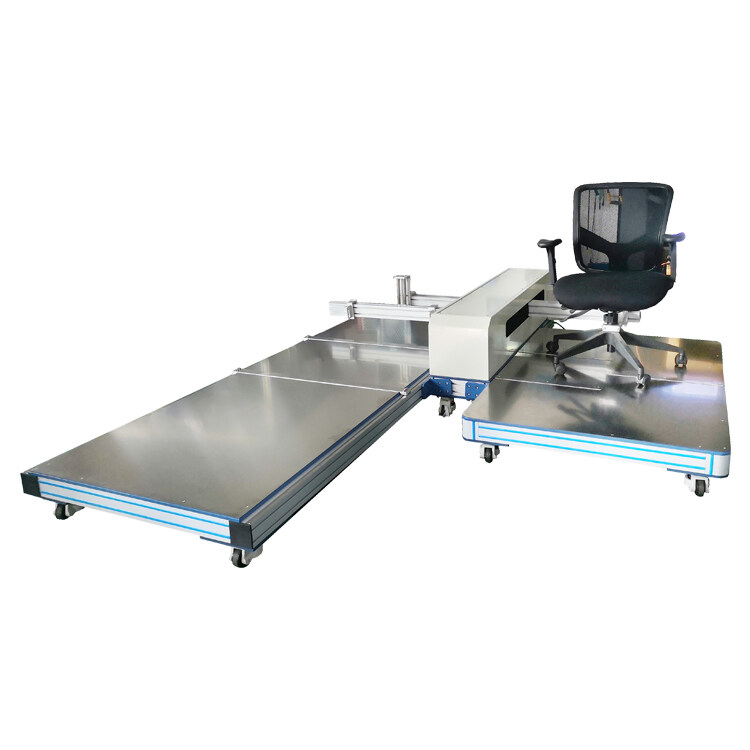

This machine is suitable for all office chairs with casters or chair wheels. It evaluates the ability of casters and chair frames to withstand the fatigue pressure and wear caused by the chair moving forward and backward. A load (113 kg) is placed on the seat surface, and the clamping fixture is driven by a motor and a synchronous belt to make the office chair or chair frame move back and forth to evaluate the wear life of the casters. The stroke, speed and number of times can be set.
Introduction:
This machine is suitable for all office chairs with casters or chair wheels. It evaluates the ability of casters and chair frames to withstand the fatigue pressure and wear caused by the chair moving forward and backward. A load (113 kg) is placed on the seat surface, and the clamping fixture is driven by a motor and a synchronous belt to make the office chair or chair frame move back and forth to evaluate the wear life of the casters. The stroke, speed and number of times can be set.
Reference Standard:
Design criteria: Bifma x 5.1 clause 17 Durability test of casters/chair frames with foot chairs.
Product acessories:
Technical Parameter:
|
Drive mode |
variable frequency motor and timing belt |
|
Stroke |
762mm (+ 50 mm) |
|
Rate |
8～12 times/min |
|
Up and down adjustment range of clamp |
80mm～500mm |
|
Control mode |
PLC and large LCD display |
|
Voltage |
220V single phase, 900W |
|
Starting point: |
self-adjustable |
