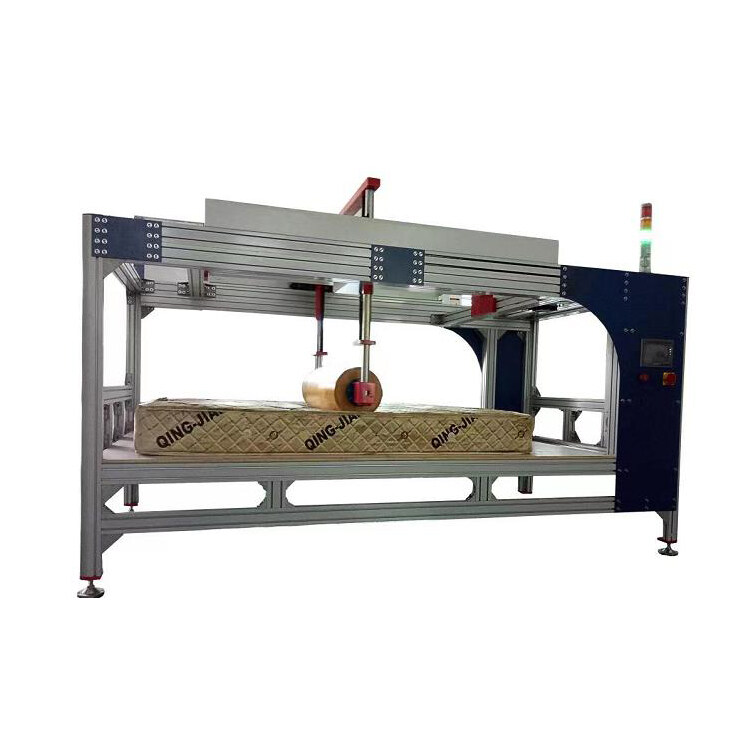

The mattress rolling fatigue test machine test is a machine designed to simulate the continuous rolling of human sleep. The rolling durability is to use a rolling loading module placed on the horizontally placed mattress loading part, rolling at a certain frequency, and the mattress Reciprocating loading is performed to test the ability of the mattress to withstand long-term repetitive rolling loads. It is used to determine the quality and service life of mattresses, and strictly abide by the requirements of national standards for mechanical testing. Suitable for strong spring mattresses, ordinary spring mattresses, foam mattresses, brown fiber elastic mattresses, etc.
1.Equipment introduction:
The mattress rolling fatigue test machine test is a machine designed to simulate the continuous rolling of human sleep. The rolling durability is to use a rolling loading module placed on the horizontally placed mattress loading part, rolling at a certain frequency, and the mattress Reciprocating loading is performed to test the ability of the mattress to withstand long-term repetitive rolling loads. It is used to determine the quality and service life of mattresses, and strictly abide by the requirements of national standards for mechanical testing. Suitable for strong spring mattresses, ordinary spring mattresses, foam mattresses, brown fiber elastic mattresses, etc.
2.Standards compliant:
QB/T 1952-2012、BS EN 1957-2012、ASTM 1566-014
3.Specifications:
Equipment model: ZL-2008
Machine size (approx.): 2950*2500*1650 mm (W)× D × H )
4.Main technical parameters of the equipment
|
1. Control mode |
PLC programming control |
|
2. Maximum size of sample |
2300mm*2300mm*500mm |
|
3. Drum Hex Length |
36 ± 3in (915 ± 75mm) |
|
4. Hexagon weight |
240 ± 10Lb (109 ± 4.5kg) |
|
5. Hexagon rim distance |
17 ± 1in (430 ± 25mm) |
|
6. Length of round drum |
1000±2mm |
|
7. Weight of round drum |
1400±7N |
|
8. Diameter of round drum |
300±1mm |
|
9).Test distance |
ASTM 1566 maximum mattress width, minimum 70% of mattress width or 38in (965mm), whichever is smaller; BS EN 1957, 250mm in the middle of mattress; |
|
10. Left and right rolling distance |
1000mm (distance can be set) |
|
11. Mattress height can be tested |
50mm—600mm can be adjusted |
|
12. Test speed |
less than 20r/min (adjustable) |
|
13.Power supply |
1∮, AC220V, 3kW |
