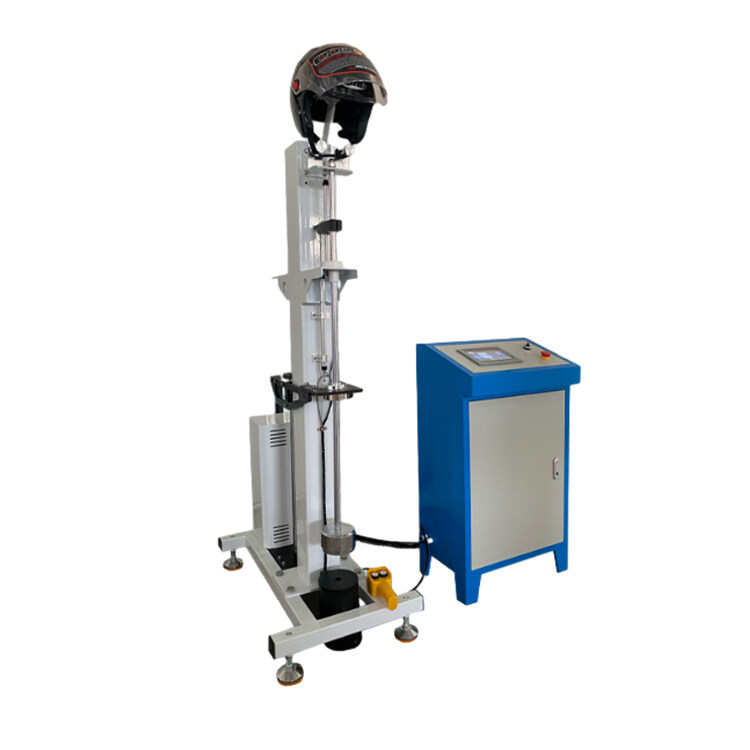

ZL-1826 Helmet Wearing Device Dynamic Strength Testing Machine

Main Uses:

Designed and produced according to helmet-related standards, it is mainly used for stability testing of fixed devices such as motorcycle helmets, electric bicycle helmets, and sports helmets. It is widely used in the production, research and development, quality supervision and other units of motorcycle helmets, electric bicycle helmets, and sports helmets. It can also be used to test the stability of other fixtures such as rescue helmets, fire helmets, ski helmets, military and police helmets, etc.

Main Features:

1. The whole machine consists of a load carrier, horizontal guide device, pulley, drop weight, head bracket, lever structure, loading device, PLC touch screen electric control box, etc.
2. PLC touch screen operation control, relevant operations can be completed through touch screen operation.
3. The whereabouts are automatically collected and processed by the encoder, and the touch screen displays the height in real time.
4. The impact height is automatically collected and processed by the encoder, and the touch screen displays the height in real time.
5. The weight movement adopts PLC touch screen electric control.
6. The carrier can be installed with cutters and sandpaper as needed.
7. The helmet bracket can adjust the position and angle of the helmet, and the head shape can be rotated 360° to facilitate testing in different positions.
8. Equipped with professional imported speed measuring tooling and high-precision load measuring sensors to test the loading force. .
9. The loading force uses an air compressor as the power source. The loading force can be manually adjusted and displayed in real time to ensure that the loading force is accurate and stable.
10. The lifting speed and height of the head support can be adjusted by adjusting the air pressure.
11. Pneumatic release weight, safe and reliable, avoids sudden release of electromagnetic force due to power outage.

Main Indicators:

Applicable Standards:

GB811-2022, GB24429-2009, ECE R22.05
