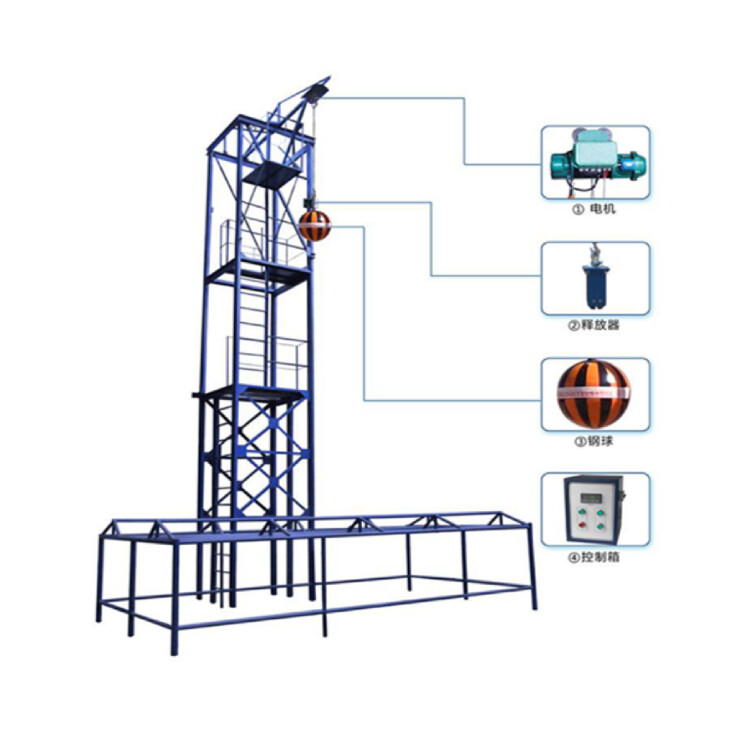

ZL-1819 Safety Net Impact Penetration Tester

Products

ZL-1819 Safety Net Impact Penetration Tester

Application:



Professionally used to test the impact resistance and penetration strength of safety nets, widely used in special labor protective equipment supervision and inspection stations, construction science institutes, construction engineering inspection stations and safety net production enterprises.

Application:

Professionally used to test the impact resistance and penetration strength of safety nets, widely used in special labor protective equipment supervision and inspection stations, construction science institutes, construction engineering inspection stations and safety net production enterprises.



Detailed parameters:

  • LED real-time display of lifting height; also can preset lifting height, when the test object reaches the preset height will automatically stop
  • Impact steel ball: 14mm thick steel plate stamping and welding, diameter (500±10)mm, weight (100±1)kg (can be self-weighted)
  • Adjustable impact height: up to 7m from the test surface; total height of impact frame 10m (LED digital display of lifting height)

The penetration object: 50mm diameter, 5kg mass of stainless steel round bar

  • The penetration test frame and the horizontal plane angle: 30 °
  • Penetration test height: 1m from the center of the penetrated net
  • Adopt universal joint positioning device to ensure that the test rod is free fall vertical fall, to ensure the reliability of test data

Test frame: Unique design of the whole structure, reasonable use of support points, simple and reliable operation

  • Lifting and releasing device: Adopt electric lifting and electric releasing function

Power supply: AC 220V, 50Hz



Application Standard:



GB 5725-2009 “Safety net
