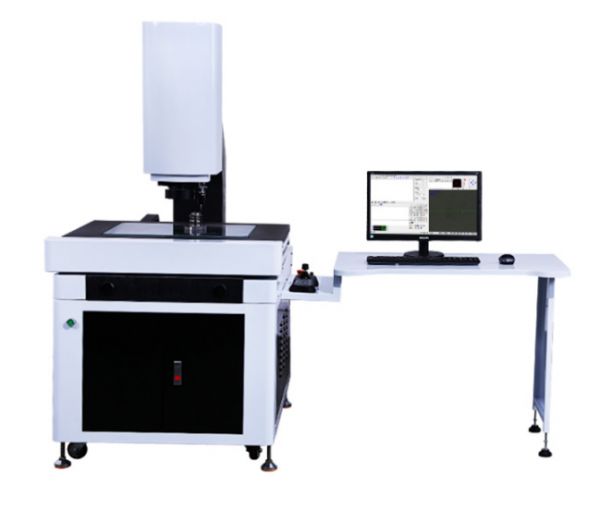

ZL-1508B Video Measurement Machine (Automatic type)

Products

ZL-1508B Video Measurement Machine (Automatic type)

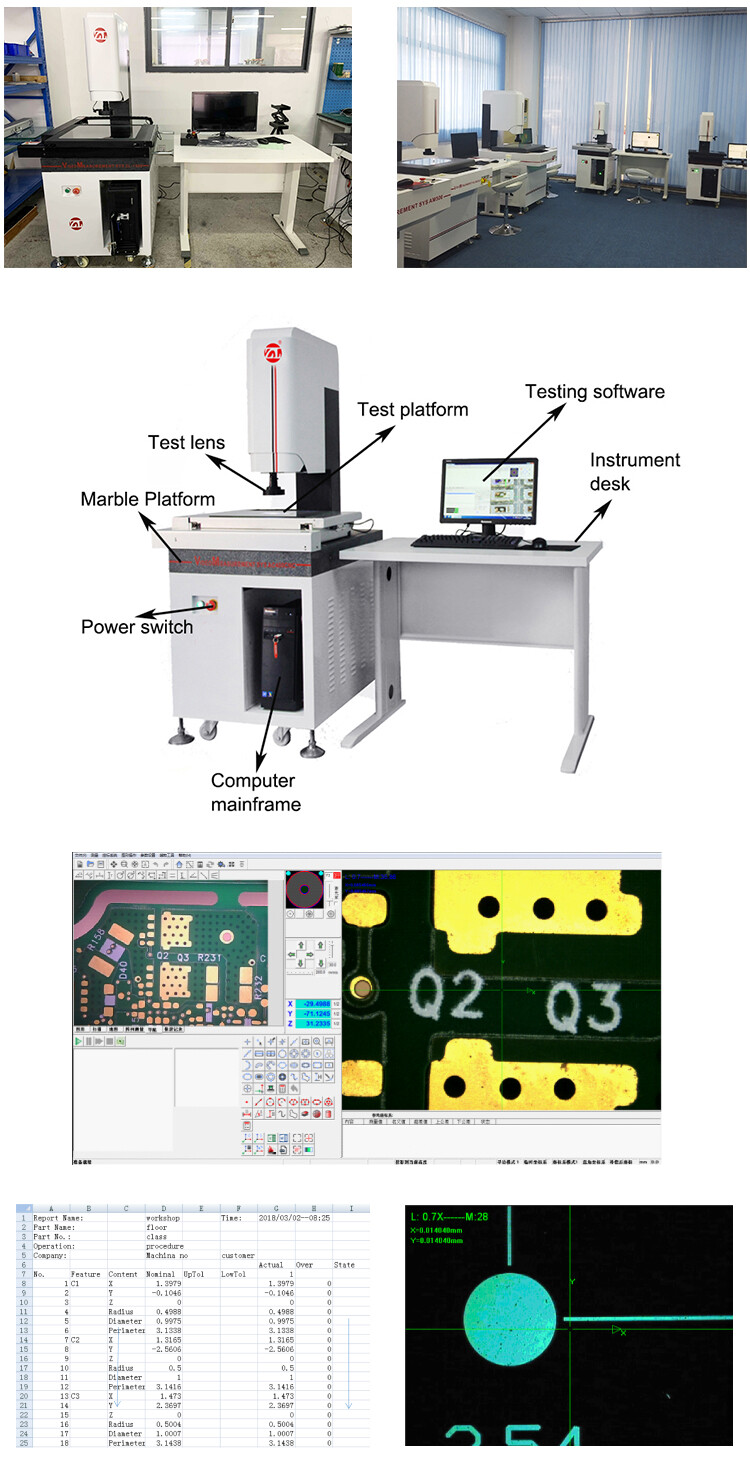

Video Measurement Machine , derived from outstanding image instrument hardware technology, is equipped with the industry’s most powerful automatic image measurement software, which can achieve precise measurement of points, lines, circles and other elements, and has powerful report output functions, especially suitable for Measurement of many types and large quantities of products, widely used in machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, terminals, mobile phones, home appliances, computers (computers) ), liquid crystal TV (LCD), printed circuit board (circuit board, PCB), automobile, medical equipment, clocks, instruments and other industries.

Inquiry
Youtube Whatsapp

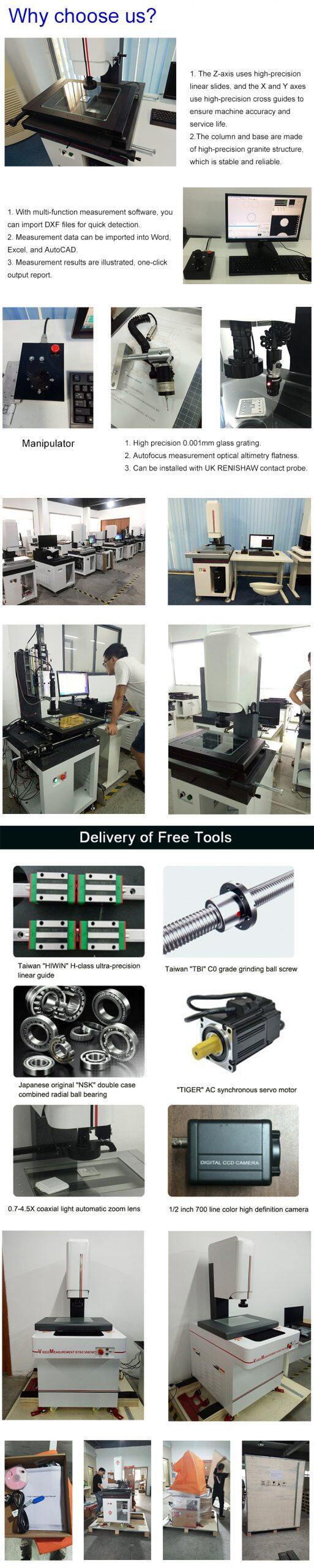

Quality Characteristics:

  1. Adopting marble base and column and worktable to ensure high precision and stability, never deformed.
  2. Adopt Taiwan Shangyin linear guide rail and Taiwan TBI ball screw, fast running speed and more stable precision.
  3. Adopt high intelligent full closed-loop servo motor and controller, large torque, fast acceleration, accurate positioning.
  4. Adopt customized high-resolution color camera to ensure high-quality measurement screen, fast frame rate, no shading.
  5. Adopt continuous zoom lens 0.7-4.5X, can be multi-magnification continuous change.
  6. Adopting programmable five-ring eight-zone LED surface cold light source and straight-axis contour cold light source, which makes the light source more suitable for the measurement requirements.
  7. Adopt closed precision optical ruler, high precision, high stability, dustproof, moisture-proof, oil-proof, corrosion-resistant.
  8. Adopt self-developed powerful automatic 3D measurement software, can be fully automatic measurement.
  9. Z-axis adopts parallel rail structure design with brake servo motor to improve the positioning accuracy and stability of z-axis.
  10. Optional lifting table light, spectrum, probe, positioning laser and so on.



Technical Parameters:

Model

ZL-1508B

Travel(mm)

600*600*200

Overall dimension(mm)

1680*1080*1580

Table size(mm)

1080*980

Weight(kg)

750

Load capacity(kg)

60

Z-axis lifting distance(mm)

200

Working distance(mm)

90

Measuring accuracy (um)

XY-axis ≤ (3+L/200)um , Z-axis ≤ (5+L/200) (L is the length of the measured object)

Maximum speed

300mm/s

Raster scale resolution

0.5um

CCD resolution

Industrial Grade: Hikvision 1.3 Megapixel HD Color CCD

Zoom objective magnification

0.7-4.5X

Total Magnification

30X-230X

Field of view

7-1.1MM

Light source

Surface light, contour light: white LED, brightness continuously adjustable

Power source

220 V ± 10%, 50 Hz Electrical equipment required to be grounded reliably: grounding resistance less than 4 ohms

Working Environment

Temperature 20℃±5℃ Temperature change﹤2℃/hr Humidity 30-80% Vibration﹤0.002g Less than 15Hz
