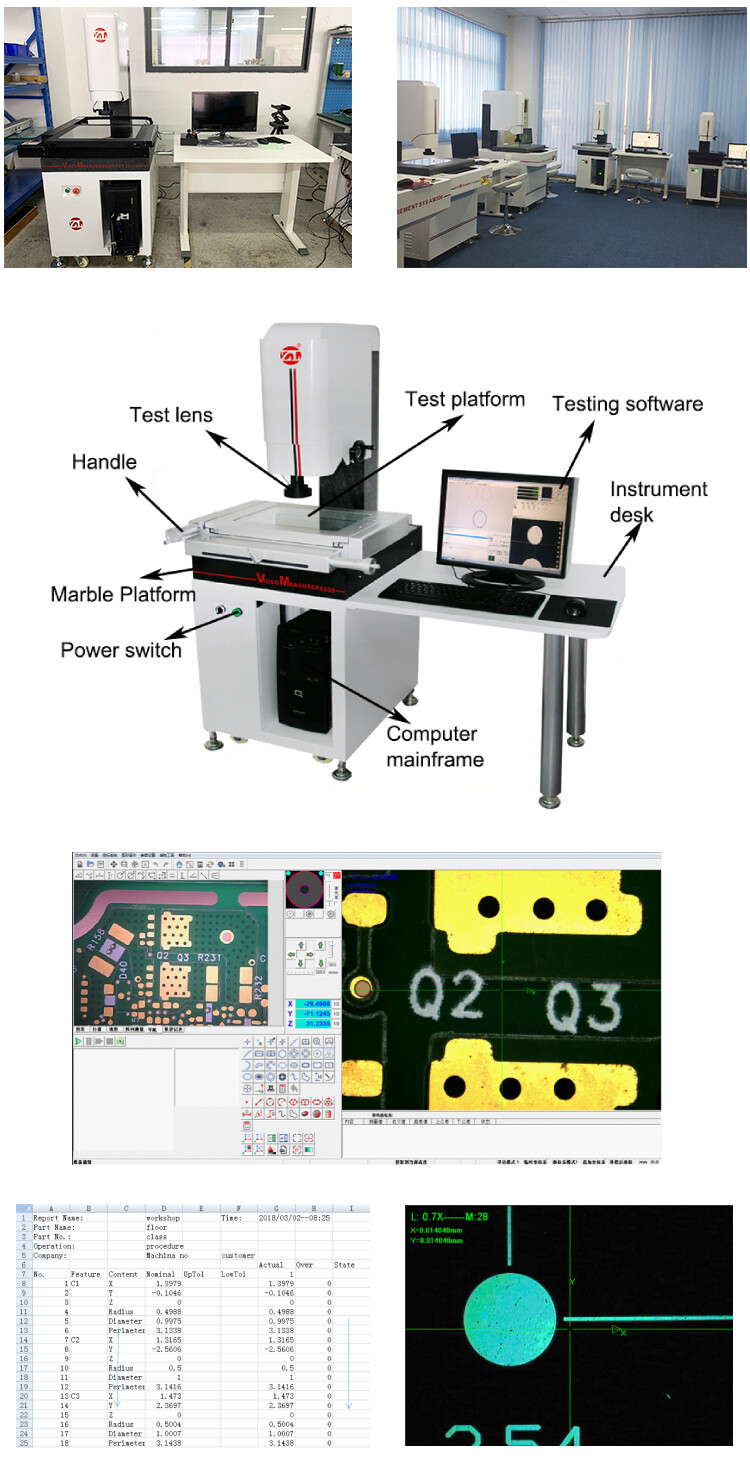

The Video Measurement Machine is equipped with the industry’s most powerful manual image measurement software, which can achieve precise measurement of points, lines, circles and other elements, and has a powerful report output function, which is especially suitable for measuring various types of products in small batches. Widely used in mold, machinery, electronics and other precision hardware industries.
Technical Parameters:
|

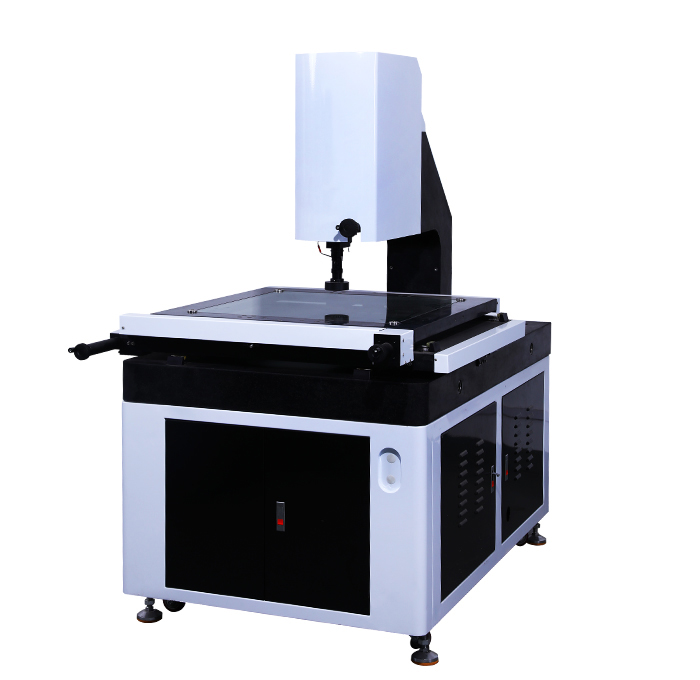

Model |
ZL-1508A |
|
Travel(mm) |
600 *600*200 |
|
Overall Dimension(mm) |
1100*1600*1680 |
|
Working table(mm) |
1080*960 |
|
Weight(kg) |
780 |
|
Glass weight(kg) |
20 |
|
Z-axis lifting distance(mm) |
200 |
|
Working distance(mm) |
90 |
|
Measuring accuracy(um) |
XY≤（3 + L / 200）um (L is the length of the object to be measured) |
|
Resolution of Raster Scale |
0.5um |
|
CCD resolution |
Industrial grade: Germany COMST brand high-definition color CCD |
|
Zoom objective magnification |
0.7-4.5X |
|
Total Magnification |
30-230 times |
|
Field of view |
7-1.1MM |
|
Light source |
Surface light, outline light: white LED, brightness continuously adjustable |
|
Power source |
220 V ± 10%, 50 Hz Electrical equipment required to be grounded reliably: grounding resistance less than 4 ohms |
|
Working Environment |
Temperature 20℃±5℃ Temperature change﹤2℃/hr Humidity 30-80% Vibration﹤0.002g Less than 15Hz |
