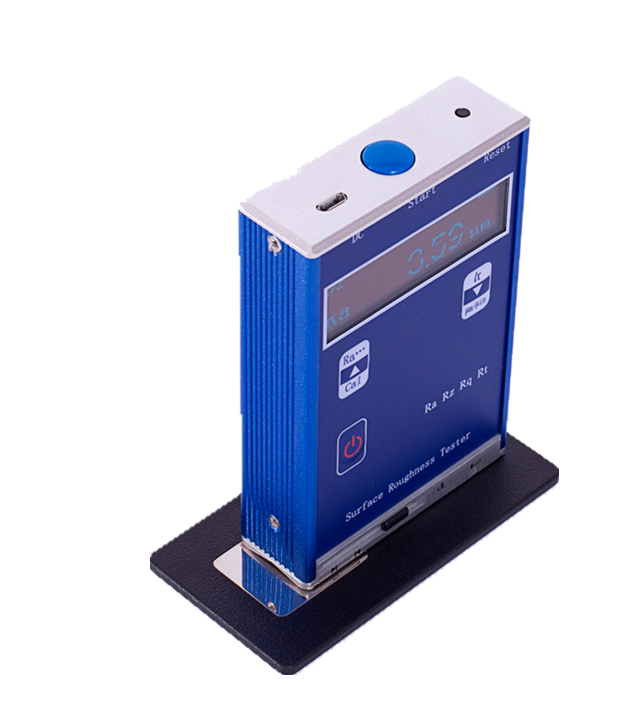

ZL-1506C Surface ROUGHTNESS TESTER-Dongguan Zhongli Instrument Technology Co., Ltd.

Products

New design, more light-weight and portable size.
Adapts high speed DSP processor to get fast reaction .
OLED color display, high light, no visual angle and wide temperature, could be used at each workplace.
Built-in li-ion rechargeable battery
Auto power off and low power consumption design.
Transducer has production gate to guarantee the accuracy of testing .
Optimized electric circuit design with transducer structure design, high integrate power, driver and display.
Select freely with Ra, Rz, Rq, Rt parameters.
It could test flat surface, and groove with length and width larger than 80*30mm.

Parameter:

Roughness parameter	Ra、Rz、Rt、Rq
Resolution	0.01μm
Cut-off lengths	0.25mm / 0.8mm / 2.5mm
Evaluation length	1.25mm / 4mm / 5mm
Tracing length	6mm
Standard	ISO、DIN、ANSI、JIS
Accuracy	≤±10%
Repeat ability	<6%
Sensor	Piezocrystal
Power supply	3.7V Li-Ion battery
Weight	200g
Dimensions	105×72×22mm
Standard configuration	Main Unit,Standard sensor,Model for multi-standard groove,Power adapter

Functions & Features:

New design, more light-weight and portable size.
Adapts high speed DSP processor to get fast reaction .
OLED color display, high light, no visual angle and wide temperature, could be used at each workplace.
Built-in li-ion rechargeable battery
Auto power off and low power consumption design.
Transducer has production gate to guarantee the accuracy of testing .
Optimized electric circuit design with transducer structure design, high integrate power, driver and display.
Select freely with Ra, Rz, Rq, Rt parameters.
It could test flat surface, and groove with length and width larger than 80*30mm.
