Product Introduction:

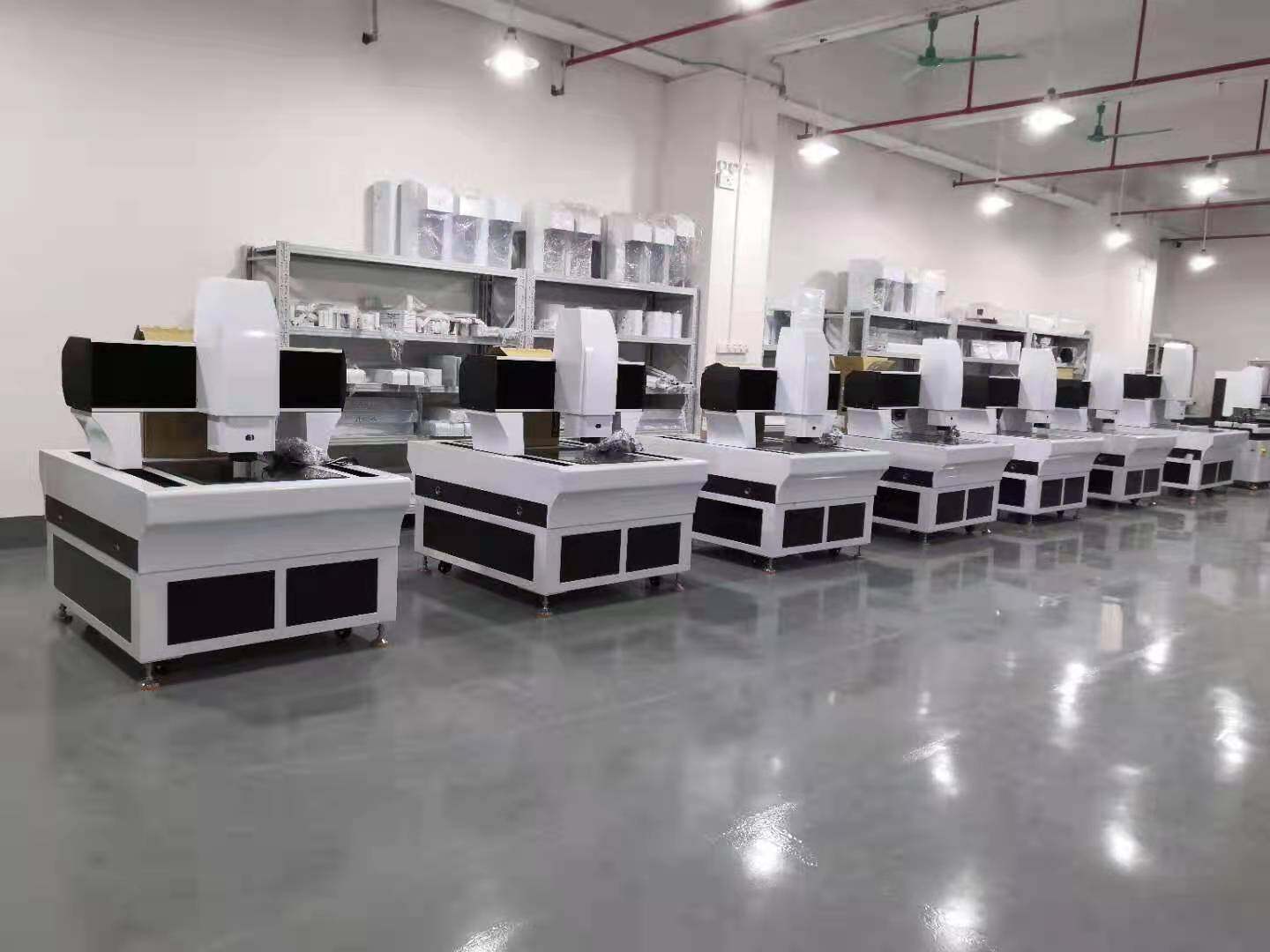

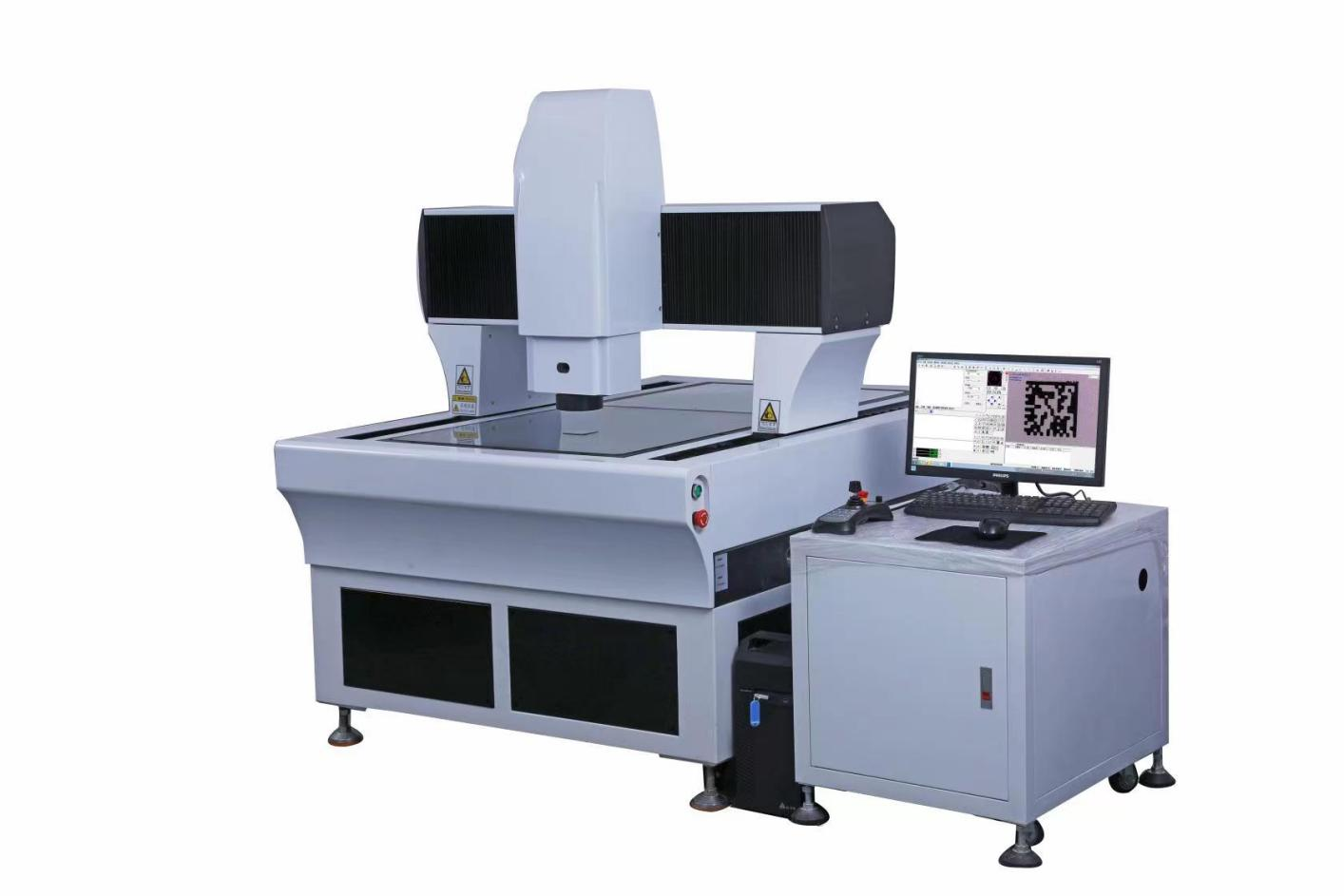

Image measuring instrument, derived from outstanding image instrument hardware technology, is equipped with the industry’s most powerful automatic image measurement software, which can achieve precise measurement of points, lines, circles and other elements, and has powerful report output functions, especially suitable for Measurement of many types and large quantities of products, widely used in machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, terminals, mobile phones, home appliances, computers (computers) ), liquid crystal TV (LCD), printed circuit board (circuit board, PCB), automobile, medical equipment, clocks, instruments and other industries.
Measurement Objects:
LCD, FPC, PCB, circuit boards, screws, springs, clocks, watches, instruments, connectors (connectors, terminal blocks), gears, cams, threads, radius templates, thread templates, wires and cables, cutting tools, bearings, hardware , stamping parts, screens, test sieves, cement screens, mesh plates (steel mesh, SMT templates), etc.
Measuring elements: length, width, height, hole spacing, spacing, pin spacing, thickness, arc, diameter, radius, groove, angle, R angle, etc.
Quality Characteristics：
Precise transmission equipment design enables fast movement.

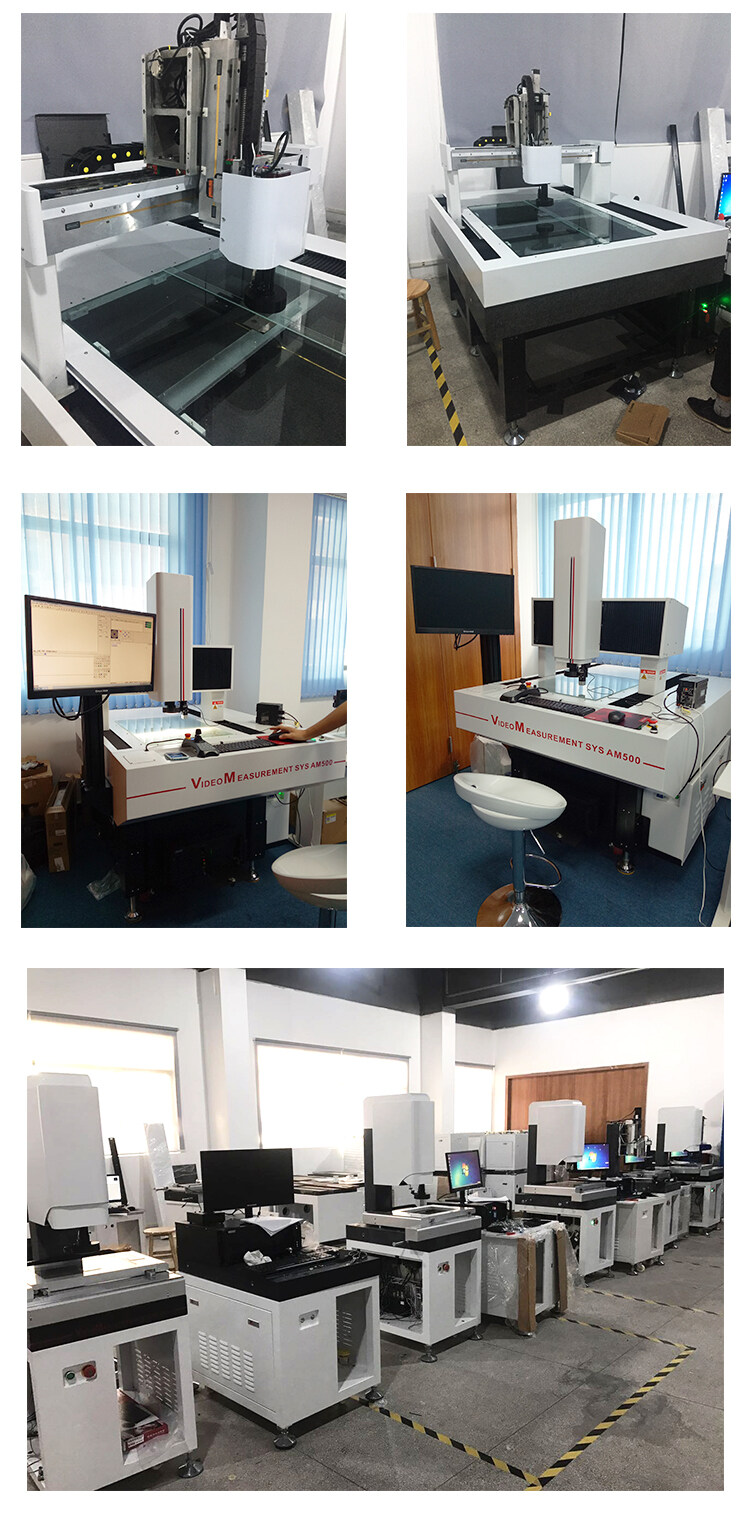

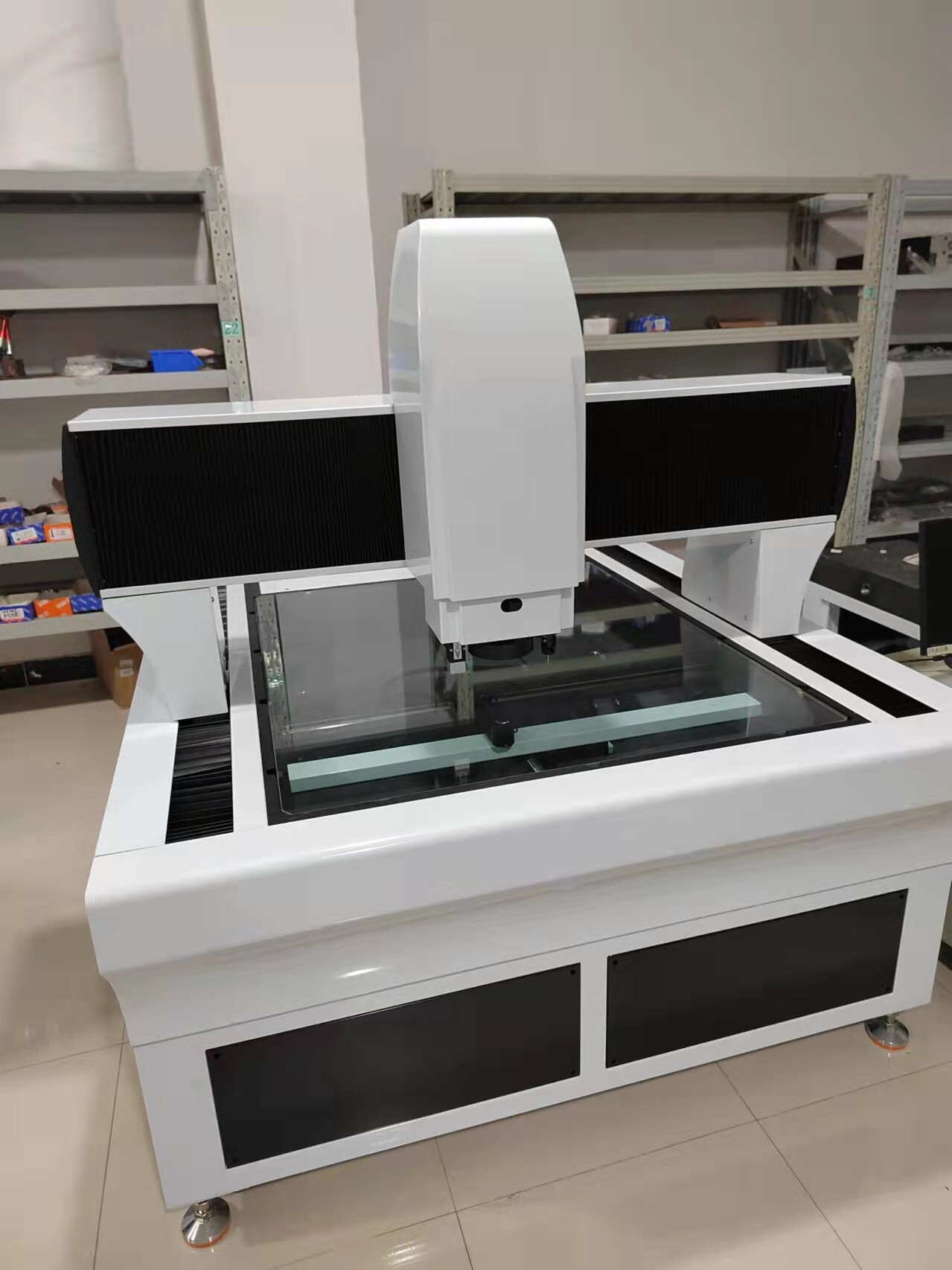

The column and base are made of high-precision granite structure, which is stable and reliable.
Equipped with multifunctional measurement software to meet different measurement needs.
Can import DXF files for quick detection.
Measurement data can be imported into Word, Excel, and AutoCAD.
The report output function with illustrations and text makes it easy to output detection results.
Three axis high-precision linear slide and high-precision ball screw, ensuring machine accuracy and service life.
High definition lens and high-resolution CCD to achieve high-definition measurement of products.
Industry advanced navigation camera, easy programming and program measurement.
Technical Parameters:
|
Model |
LM-DL542-DCC |
LM-DL652-DCC |
LM-DL862-DCC |
LM-DL1080-DCC |
|
Stroke (mm) |
500 *400*200 |
600 *500*200 |
800*600*200 |
1000*800*200 |
|
Overall Dimensions (mm) |
1500*1000*1580 |
1680*1100*1580 |
1880*1300*1580 |
2080*1500*1580 |
|
Workbench Size (mm) |
740*630 |
840*730 |
1040*830 |
1240*1030 |
|
Weight (kg) |
1080 |
1280 |
1480 |
1600 |
|
Load Bearing (kg) |
60 |
60 |
60 |
60 |
|
Z-axis Lifting Distance (mm) |
200MM |
|||
|
Working Distance(mm) |
90 mm |
|||
|
Measurement Accuracy(um) |
XY≤(3.0 + L/200)um, Z≤(5.0+L/200)um (L is the length of the object to be measured) |
|||
|
Maximum Speed(mm |
450mm/s |
|||
|
Grating Scale Resolution |
0.5 um |
|||
|
CCD Resolution |
Industrial grade: Hikvision 1.3 million pixel high-definition color CCD |
|||
|
Zoom Objective Lens Magnification |
0.7-4.5X |
|||
|
Total Magnification |
18-180 times |
|||
|
Object Field Of View |
7-1.1MM |
|||
|
Light Source |
Surface light, contour light: white LED, brightness continuously adjustable |
|||
|
Power Supply |
220 V ± 10%, 50 Hz electrical equipment requires reliable grounding: the ground resistance is less than 4 ohms |
|||
|
Working Environment |
Temperature 20℃±5℃ Temperature change﹤2℃/hr Humidity 30-80% Vibration﹤0.002g Less than 15Hz |
|||
