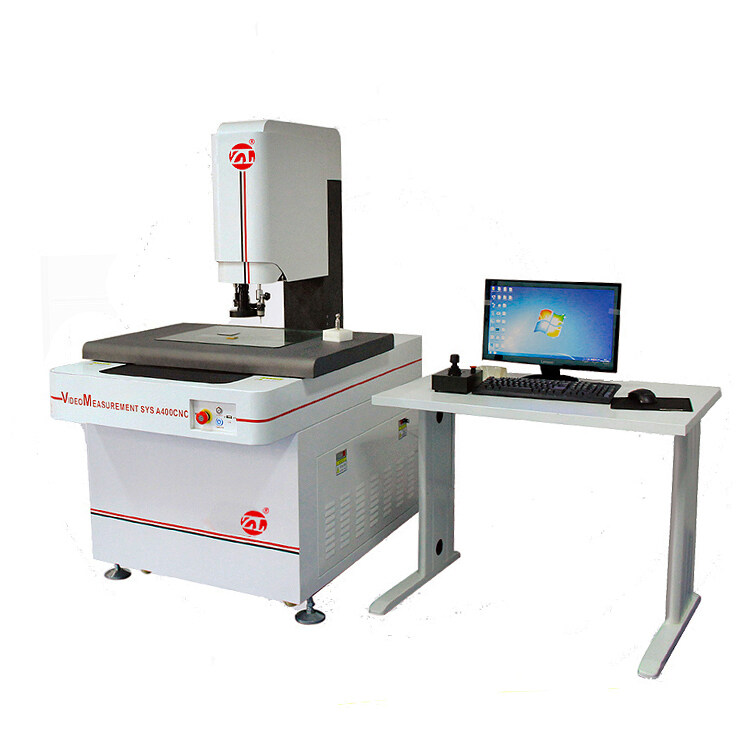

Video Measurement Machine , derived from outstanding image instrument hardware technology, is equipped with the industry’s most powerful automatic image measurement software, which can achieve precise measurement of points, lines, circles and other elements, and has powerful report output functions, especially suitable for Measurement of many types and large quantities of products, widely used in machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, terminals, mobile phones, home appliances, computers (computers) ), liquid crystal TV (LCD), printed circuit board (circuit board, PCB), automobile, medical equipment, clocks, instruments and other industries.

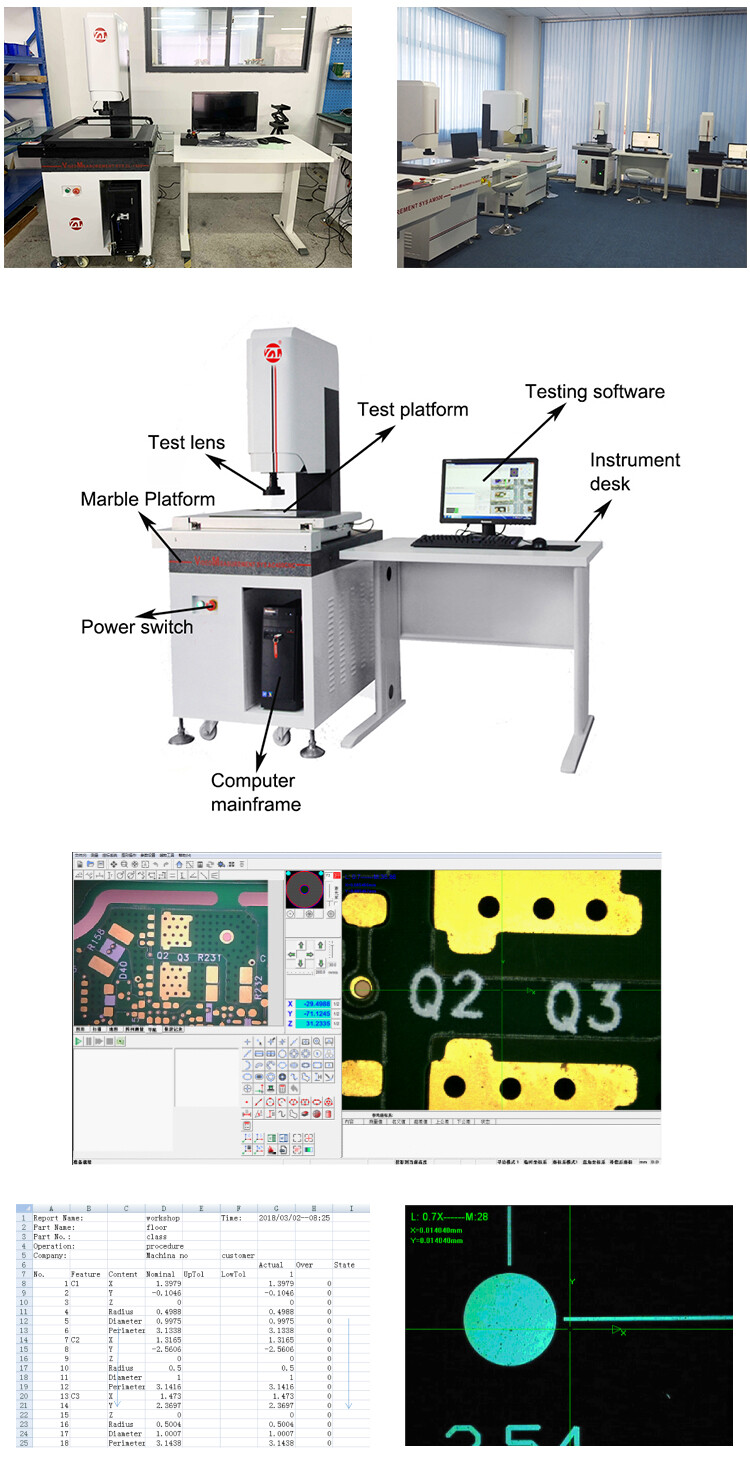

Product Introduction:
Video Measurement Machine , derived from outstanding image instrument hardware technology, is equipped with the industry’s most powerful automatic image measurement software, which can achieve precise measurement of points, lines, circles and other elements, and has powerful report output functions, especially suitable for Measurement of many types and large quantities of products, widely used in machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision hardware, precision stamping, connectors, terminals, mobile phones, home appliances, computers (computers) ), liquid crystal TV (LCD), printed circuit board (circuit board, PCB), automobile, medical equipment, clocks, instruments and other industries.
Measurement Objects
LCD, FPC, PCB, circuit boards, screws, springs, clocks, watches, instruments, connectors (connectors, terminal blocks), gears, cams, threads, radius templates, thread templates, wires and cables, cutting tools, bearings, hardware , stamping parts, screens, test sieves, cement screens, mesh plates (steel mesh, SMT templates), etc.
Measuring elements: length, width, height, hole spacing, spacing, pin spacing, thickness, arc, diameter, radius, groove, angle, R angle, etc.

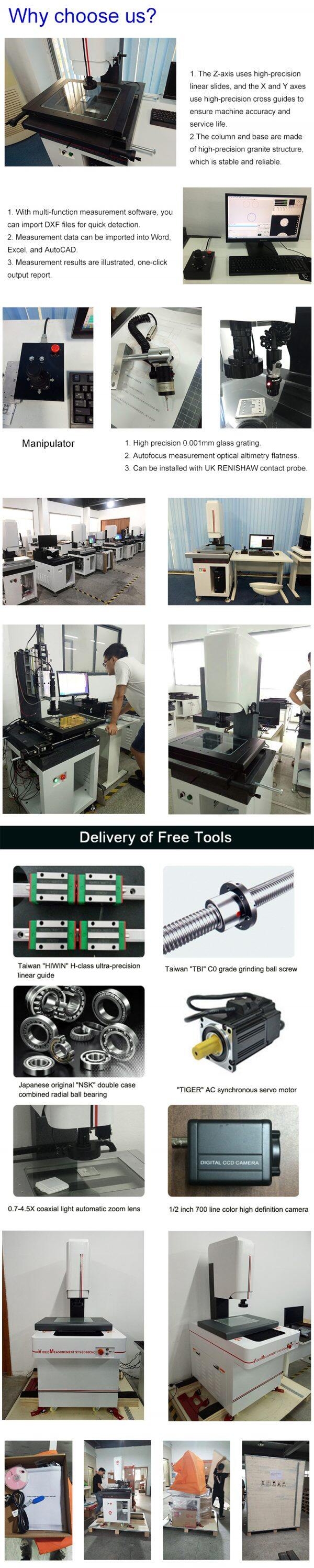

Quality Characteristics:
The marble base and columns ensure extremely high stability and rigidity.
Precision V-shaped guide rail and Taiwan Shangyin ball screw, equipped with highly intelligent servo motor fully closed-loop control, high stability, high precision and fast speed.
High-resolution 1.3 million-pixel high-definition color camera ensures high-quality measurement images.
Continuous zoom lens can continuously change multiple magnifications.
The five-ring and eight-zone LED surface cold light source and straight-axis contour cold light source can be programmed to make the light source more adaptable to measurement requirements.
Open precision optical ruler, high precision and stability.
Independently developed powerful fully automatic 3D measurement software, capable of fully automatic measurement.
Optional lifting surface light, spectrum, probe, positioning laser, etc.
Technical Parameters:
|
Model |
ZDL3020-DCC |
ZDL4030-DCC |
ZDL5040-DCC |
|
|
Parameters |
||||
|
Measuring Range (mm) |
300*200*200 |
400*300*200 |
500*400*200 |
|
|
Overall Dimensions (mm) |
730*670*1680 |
930*820*1680 |
1130*920*1680 |
|
|
Workbench（mm） |
Cast Iron Workbench |
460*360 |
560*460 |
710*610 |
|
Glass Countertop |
339*239 |
439*339 |
539*439 |
|
|
Load Bearing/Weight (kg) |
25/280 |
25/380 |
25/520 |
|
|
Imaging and Measurement Systems |
Measurement Speed |
MAX:250mm/s |
||
|
CCD Resolution |
Hikvision 1.3 million pixel HD color camera |
|||
|
Zoom Objective |
PMS manual zoom autofocus lens 0.7-4.5X |
|||
|
Video Magnification |
30－180X |
|||
|
Object Field Of View |
7-1.1mm |
|||
|
Working Distance |
90mm |
|||
|
Grating Scale Resolution |
0.5u metal optical ruler |
|||
|
Measurement Accuracy (μm) |
XY axis ≦ (3+L/200)um, Z axis ≦ (5+L/200)um (L is the length of the object being measured) |
|||
|
Lighting (Low Light And Surface Light) |
Programmable five-ring and eight-zone LED surface light and straight-axis contour light |
|||
|
Power Supply |
220V±10% (AC) 50 Hz electrical equipment requires reliable grounding: the grounding resistance is less than 4 ohms |
|||
|
Working Environment |
Temperature 23℃±5℃ Temperature change﹤2℃/hr Humidity 30-80% Vibration﹤0.002g Less than 15Hz |
|||
|
Warranty Period |
12 months |
|||
