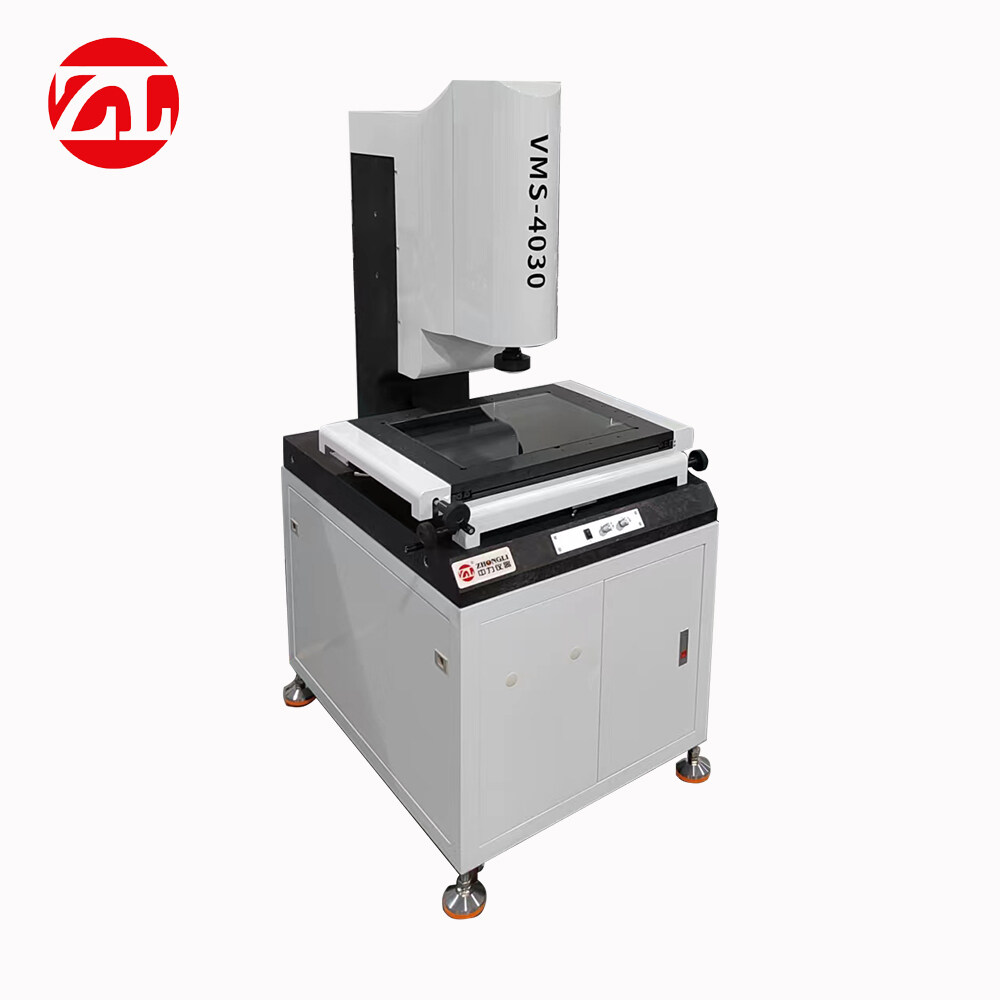

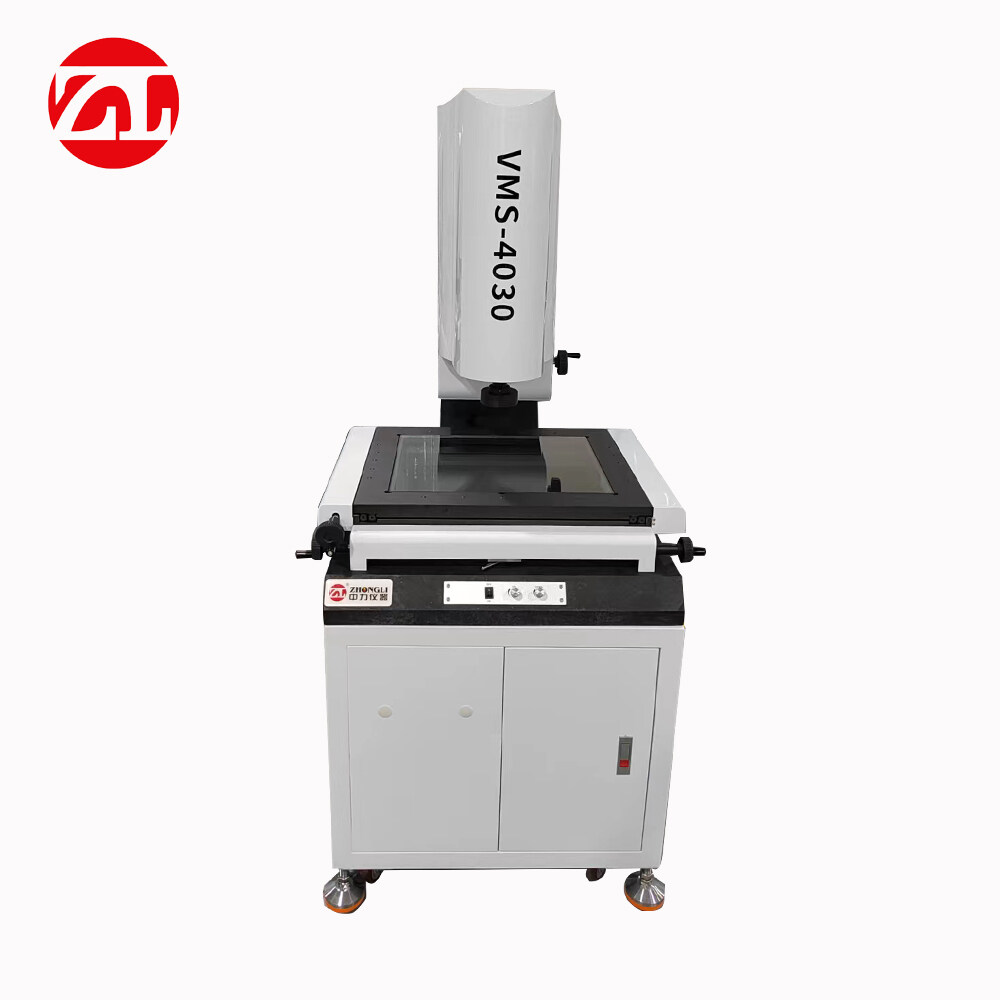

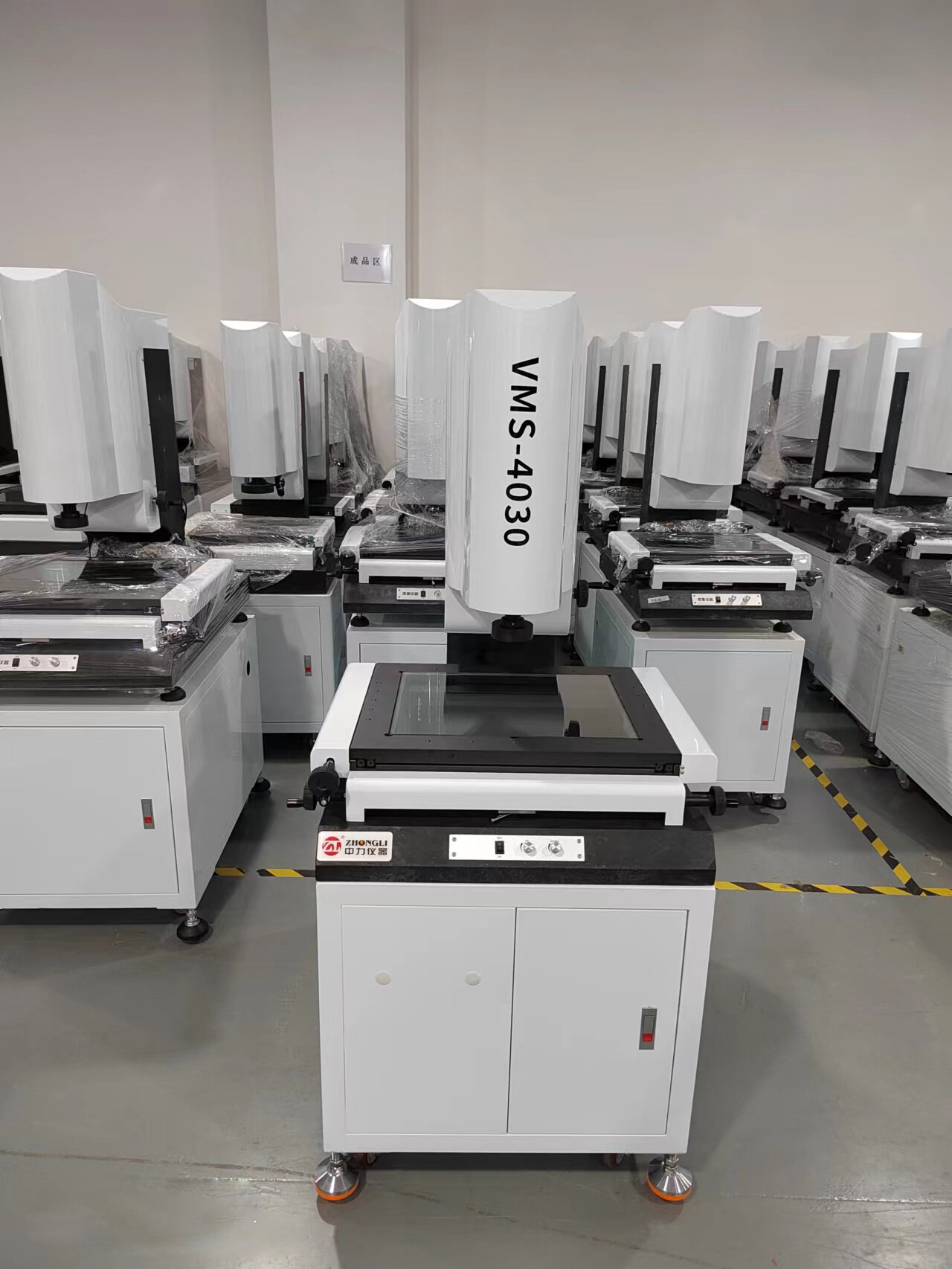

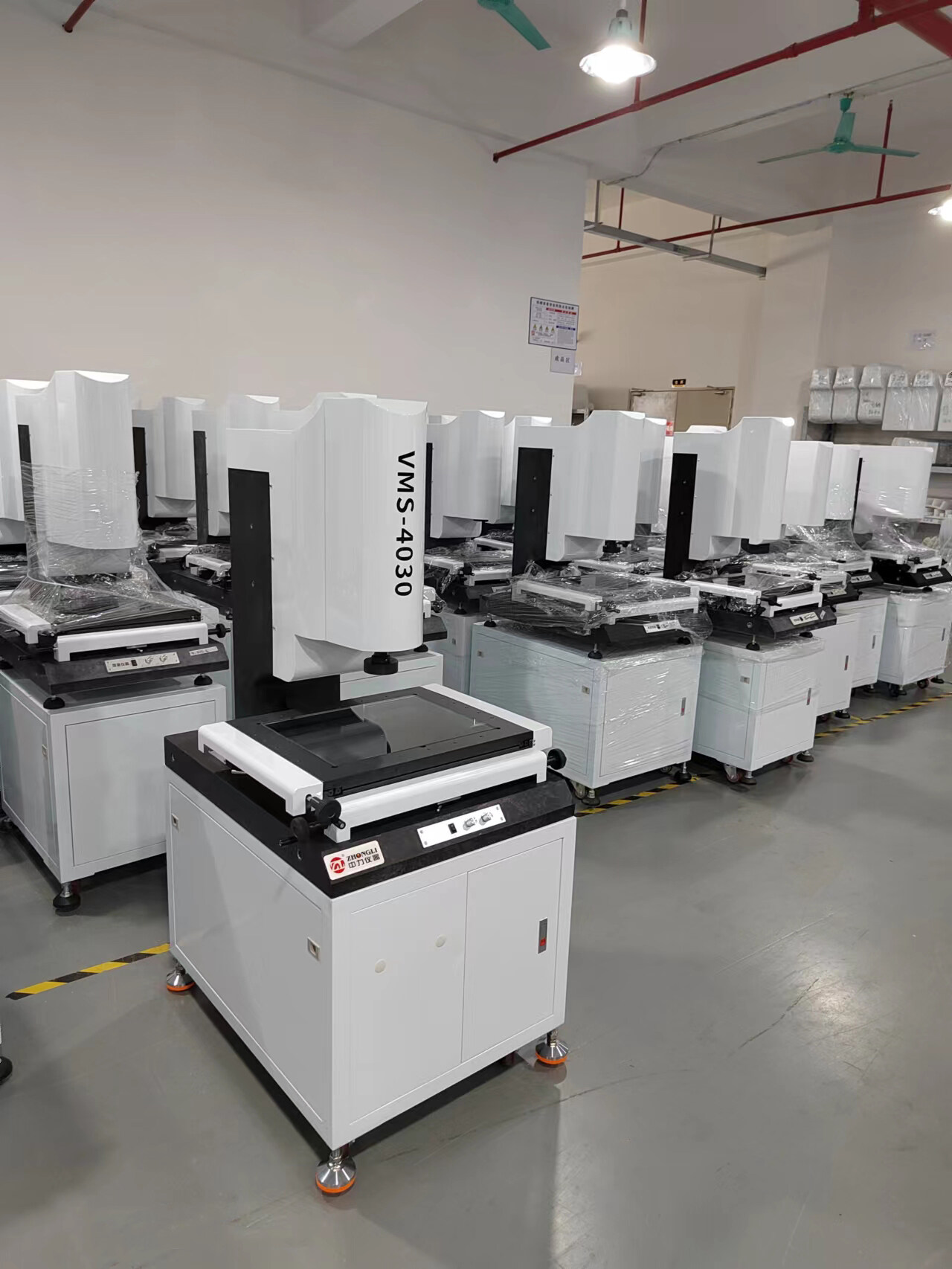

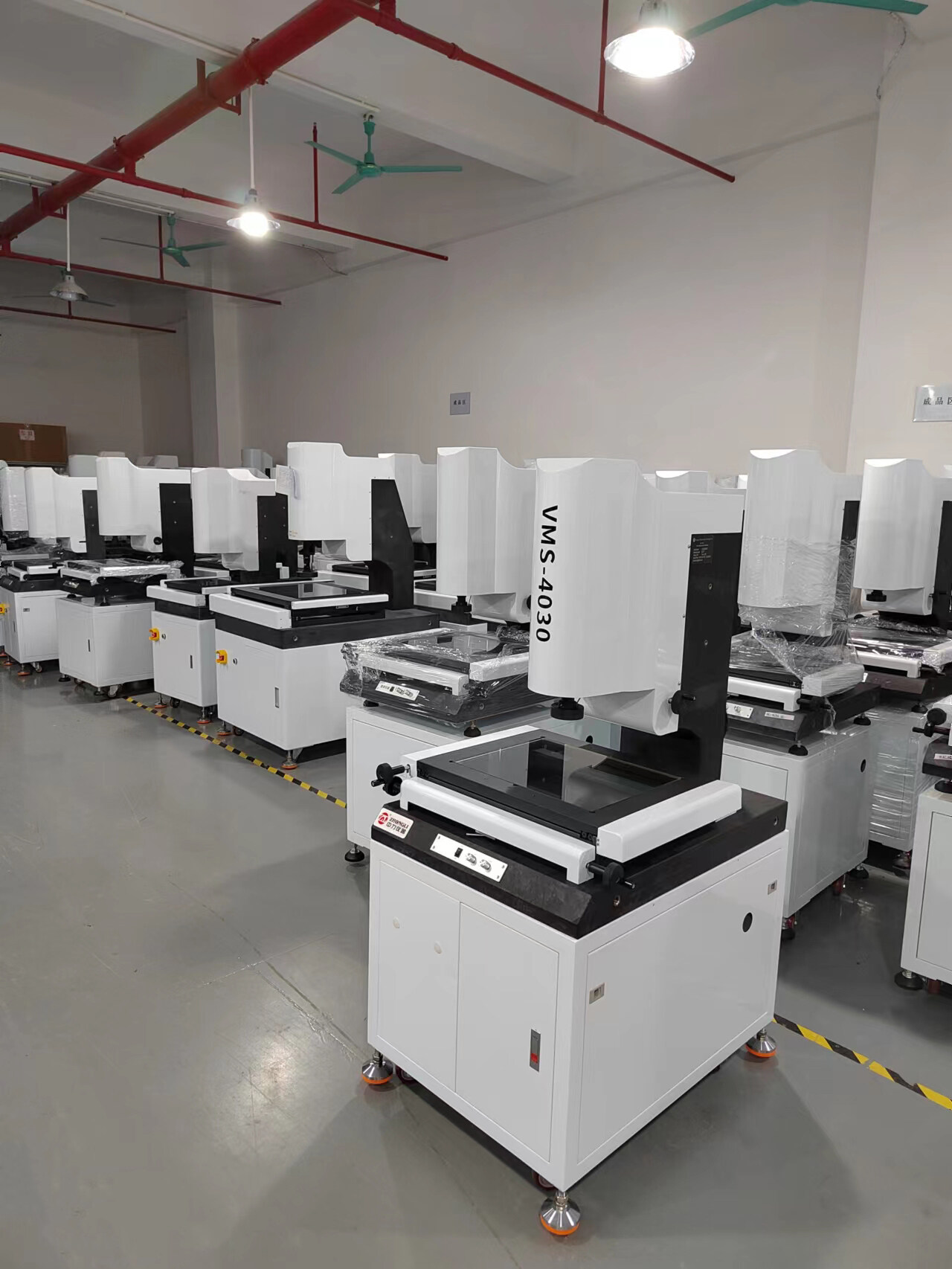

The Video Measurement Machine is equipped with the industry’s most powerful manual image measurement software, which can achieve precise measurement of points, lines, circles and other elements, and has a powerful report output function, which is especially suitable for measuring various types of products in small batches. Widely used in mold, machinery, electronics and other precision hardware industries.
Product Introduction:
The Video Measurement Machine is equipped with the industry’s most powerful manual image measurement software, which can achieve precise measurement of points, lines, circles and other elements, and has a powerful report output function, which is especially suitable for measuring various types of products in small batches. Widely used in mold, machinery, electronics and other precision hardware industries.
The Characteristics:
Using optical principles, non-contact test measurement.
Applicable to all fields where two-coordinate measurement is the purpose.
It is the best measurement solution for small, thin, soft and components.
It can achieve precise measurement of points, lines, circles, angles, and other elements.
And has powerful report output function, high quality, economical and practical.
Technical Parameters:
|
Model |
ZDL2010 |
ZDL3020 |
ZDL4030 |
ZDL5040 |
|
Stroke(mm) |
200*100*200 |
300*200*200 |
400*300*200 |
500 *400*200 |
|
Overall Dimensions (mm) |
525*677*980 |
625*777*1080 |
725*877*1180 |
825*1077*1280 |
|
Workbench(mm) |
360*260 |
460*360 |
560*460 |
660*560 |
|
Machine Weight (kg) |
220 |
280 |
350 |
420 |
|
Glass Load-Bearing (kg) |
25 |
25 |
25 |
25 |
|
Z-axis Lifting Distance (mm) |
200 |
|||
|
Working Distance(mm) |
90 |
|||
|
Measurement Accuracy(um) |
XY（3 + L / 200）um (Z-axis optical height measurement accuracy 0.02MM) |
|||
|
Grating Scale Resolution |
0.5um |
|||
|
CCD Resolution |
Industrial grade: 800-line high-definition color CCD |
|||
|
Zoom Objective Lens Magnification |
0.7-4.5X |
|||
|
Total Magnification |
30-180 times |
|||
|
Object Field Of View |
7-1.1MM |
|||
|
Light Source |
Surface light, contour light: white LED, brightness continuously adjustable |
|||
|
Power Supply |
220 V ± 10%, 50 Hz electrical equipment requires reliable grounding: the ground resistance is less than 4 ohms |
|||
|
Working Environment |
Temperature 20℃±5℃ Temperature Change﹤2℃/hr Humidity 30-80% Vibration﹤0.002g Less than 15Hz |
|||
