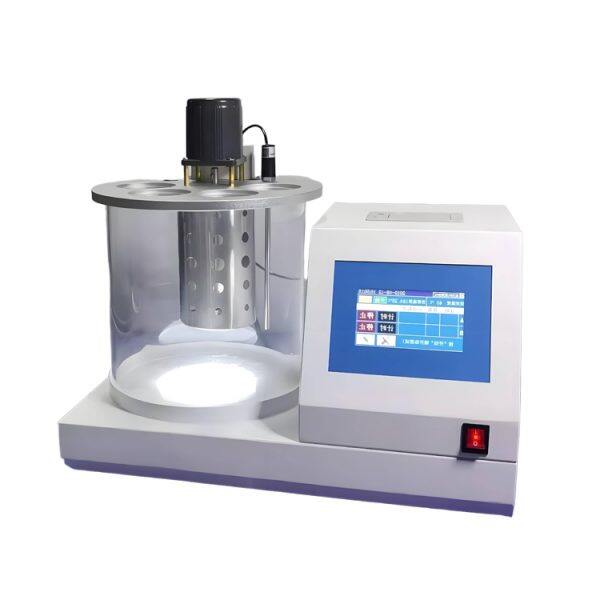

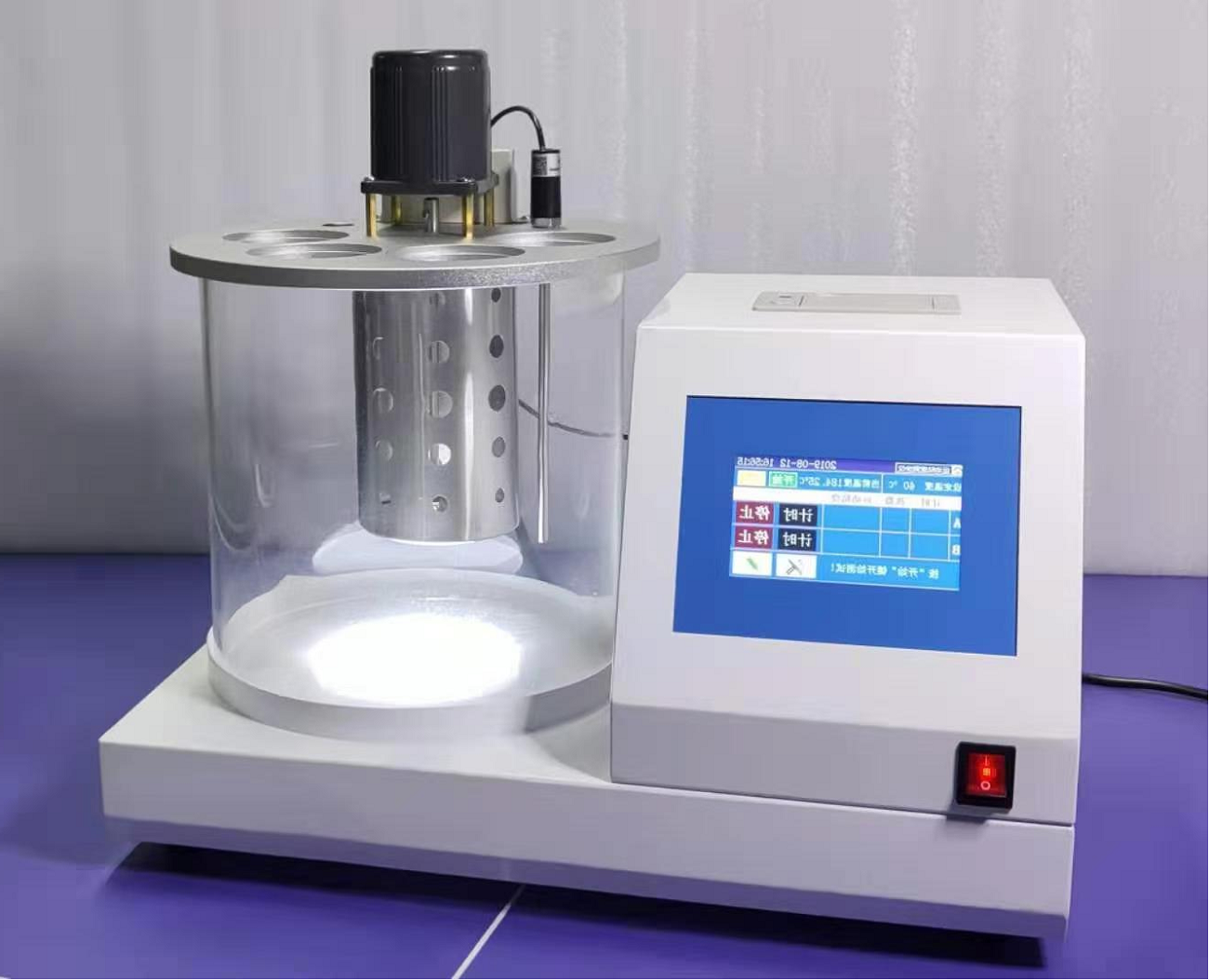

ZL-1309 Dynamic Viscosity Meter

This instrument complies with standards such as “GB265-88 Method for Determining Kinematic Viscosity of Petroleum Products” and ASTM D445, and is widely used in industries such as electrical oil, power, chemical engineering, railway, and scientific research.

Main features:

1. It adopts advanced single-chip microcomputer intelligent temperature control and a 5-inch LCD color touch screen to display the instrument’s working status such as temperature, time and parameters in real time.
2. Unique modular technology enables measurement in both low and high viscosity ranges.
3. Automatically calculate the kinematic viscosity value and the average test value, and automatically print and store the test results;
4. The outer layer of the constant temperature bathtub is covered with an organic glass insulation cover, ensuring uniform temperature distribution inside the bath and excellent temperature control effect.
5. The heater and other components are made of stainless steel, which is corrosion-resistant and durable. The ring-shaped fluorescent lamp lighting makes it easy to observe.
6. The number of tests can be freely adjusted from 1 to 6 times, allowing for parallel tests on more than two oil samples simultaneously.
7. The capillary meter card adopts a three-point vertical type, which is flexible and convenient to operate and reliable in clamping.

Parameter：

1. Standard:GB265、ASTM D445、IP71
2. display mode:5-inch LCD touch screen
3. Temperature range:Room temperature to 200℃(Adjustable)
4. The measurement range of kinematic viscosity :0.5 to 20,000 mm ² /s
5. temperature control accuracy:±0.1℃
6. timing accuracy:±0.1S
7. Display Timer Range:1 seconds -999.9 seconds
8. thermostatic water bath:250×250mm double-layer
9. Low-energy thermal printer, paper width 56mm
10. temperature measurer:Imported precision platinum resistance
11. stirring rate:1350 rpm/min
12. Power:1.2KW
13. Quantity of device samples：4
14. operating environment：Ambient temperature: 15- 35℃, ambient humidity: less than 85%
15. Voltage：220V,50HZ
