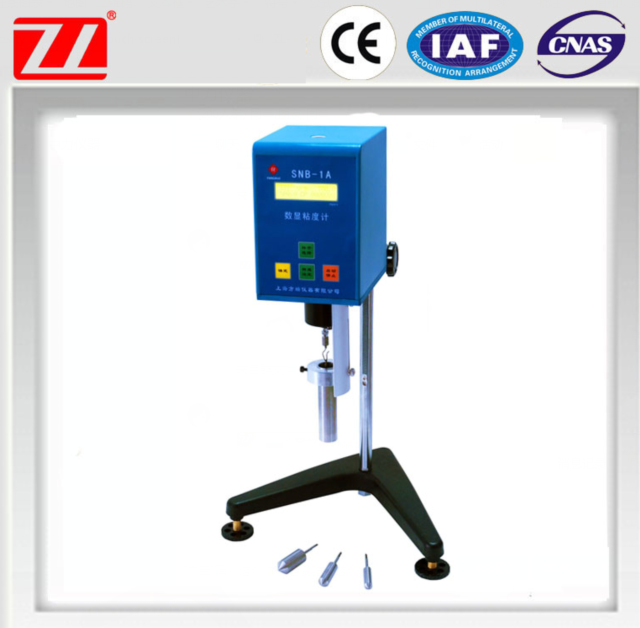

ZL-1306A Viscosity Meter ( Digital)

1. Measurement data directly on the LCD screen does not require a second calculation;
2. Standard sample adapter, test sample viscosity only 18 – 20ml sample volume;
3. Using 16-bit microcomputer processor as the core stepper with high subdivision drive, LCD backlight display.
4. The use of program-controlled motor control, mains frequency does not affect the measurement accuracy;
5. Machine a machine design, easy to operate;
6. With RS232 interface, can output data, connect the computer;
7. Standard data processing software, real-time record of viscosity with shear rate, time, temperature changes caused by different, which understand the non-Newtonian liquid viscosity, rheological properties provide a good method.

Basic parameters：

Display :Backlit LCD, digital display

Speed (r / min) :0.5 / 1/2/5/10/20/50 21, 27, 28,

Measuring range (mPa.s) :10 to 20 million

Measurement error (Newtonian liquid) :± 1%

Repeatability (Newtonian liquid) :± 0.5%

LCD screen small screen, English display

Temperature measurement interface

Thermostatic:option

Data output :interface

Data processing software :standard

Dimensions (mm): 300 × 300 × 450

Standard configuration:

Host : 1 set

Sample adapter 1 set (including outer tube, 21 #, 27 #, 28 #, 29 # rotor)

Warranty card, certificate

user’s Guide

Options:

High temperature furnace

Constant temperature cup

Viscometer for constant temperature water bath (oil bath)

Low temperature bath for viscometer

Standard silicone oil
