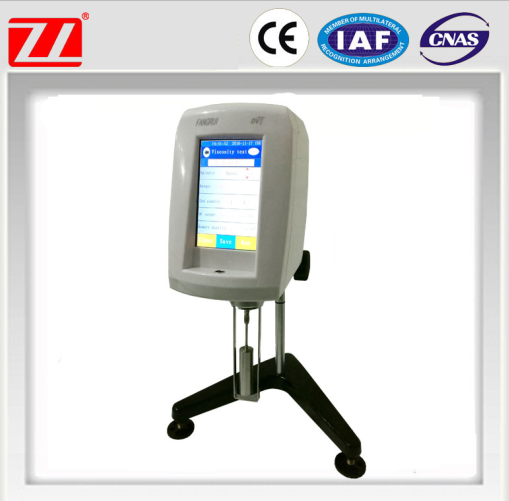

ZL-1305B Viscosity Meter ( LCD touch screen)

① using ARM technology, built-in Linux system. The user interface is straightforward and easy to understand, through the creation of test programs and data

Analysis, fast and easy to carry out viscosity testing;

② viscosity measurement accuracy, each range are automatically calibrated with a computer, high precision, small error;

② display content: In addition to viscosity, there are temperature, measured value of full scale value percentage (graphical display), range overflow alarm, the current rotor speed combination of the maximum measurement range, date, time and so on. And can display the kinematic viscosity at the known density, which greatly satisfies the user’s different measurement requirements;

③ full-featured, regular measurement, self-built 30 test procedures, access to 30 sets of measurement data, real-time display of viscosity

Curves, print data and curves;

⑤ front level, intuitive level of convenience;

⑥ optional temperature probe, viscometer dedicated constant temperature bath, constant temperature cup, printer, standard viscosity samples (standard silicone oil);

⑦ Chinese and English operating system.

In this case,

Basic parameters：

Control / Display: 5-inch color touch screen

Speed (r / min): 0.5 / 1/2/5/10/20/50

Measuring range mPa.s: 10 ~ 200000 (200 thousand)

Rotor: 21/27/28/29 # Rotor

Measurement error (Newtonian liquid): ± 1%

Timing function: standard

Display of the maximum measuring range: Automatic display of the selected combination of rotor and speed Measurable viscosity range

Auto-display kinematic viscosity: Enter the density of the sample

Self-built measurement program: up to 30 groups can be saved (including the rotor, speed, temperature, time, etc.)

Save the measurement results: up to 30 sets of data can be saved

(Including viscosity, temperature, rotor, speed, time, density, kinematic viscosity, etc.)

Viscosity curve: real-time display viscosity curve

Print: data, curves can be printed (standard with a print interface, need to buy printer)

Data output interface: standard

Thermostatic components: Options (including a variety of viscometer thermostat, constant temperature cup,)

Working power: wide voltage work (110V / 60Hz or 220V / 50Hz)

Dimensions: 300 × 300 × 450 (mm)

Options:

1. Micro thermal printer
2. Viscometer for constant temperature bath
