Essential details
Place of Origin:Guangdong, China
Brand Name:ZL
Model Number:ZL-1117C
Power:Electronic

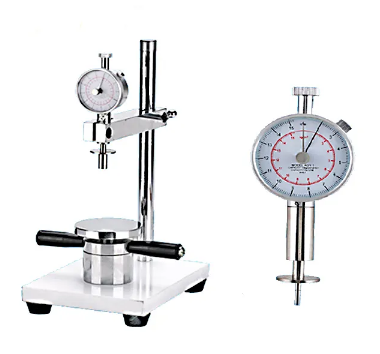

Product name:Apple Pear Fruit Hardness Tester
Indication scale:2-15kg/cm2 (*105Pa)
Pressure Head size:3.5mm
Precision:±0.1
Insertion Depth:10 mm
Size:140*60*30mm
Weight:0.3 kg
Warranty:12 months
Packaging & delivery
Selling Units:Single item
Single package size: 30X32X45 cm
Single gross weight:15.000 kg
Package Type:
Apple Pear Fruit Hardness Tester is packed in a polybag, then packed as export safety wooden case
1.Functions and Characteristic:
Fruit Hardness Tester use to testing apple, pear, strawberry, grape’s fruit’s hardness. It is suitable for the fruit
tree scientific research department, the fruits company, the fruit tree farm, unit and so on technical college
agriculture colleges and universities, to cultivate the improved variety, the harvest storage, the product
transportation and the processing and so on by the fruits hardness. Thus judge fruit’s mature degree. This
instrument volume small, the weight is light, straight reads the type, carries conveniently, specially is suitable for
the scene determination, the result came out direct.
2.Principle:
The hardness of fruit can express by the unit area (s) could undertake the pressure of dynamometer (N),their
specific value is just as the hardness(P).
P=N/S
P—the hardness value of fruit 105Pa or (kg/cm2)
N—pressure of dynamometer (N) N or (kg)
S—the area of pressure m2 or (cm2)
Technical Parameters:
|
Product Name |
ZL-1117C Fruit Sclerometer |
|
|
Indication scale |
0.5-12kg/cm2 (×105Pa) |
0.5-24kg/cm2 (×105Pa) |
|
Pressure Head size |
Φ11mm |
Φ8mm |
|
Precision |
±0.1 |
|
|
Insertion Depth |
10mm |
|
|
Size |
140*60*30mm |
|
|
Weight |
0.3kg |
|
