Parameter

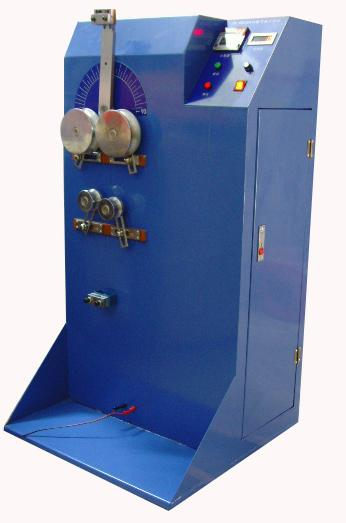

Made according to the requirements of Figure 9 in the GJB-1916 standard. It is suitable for relevant manufacturers and quality inspection departments to conduct bending (bending) tests on cables. The test method is to fix the cable on the fixture. During the test, the fixture swings left and right. After a certain number of times until power is no longer available, the testing machine automatically stops operating, and then checks the total number of swings.
Parameter
Made according to the requirements of Figure 9 in the GJB-1916 standard. It is suitable for relevant manufacturers and quality inspection departments to conduct bending (bending) tests on cables. The test method is to fix the cable on the fixture. During the test, the fixture swings left and right. After a certain number of times until power is no longer available, the testing machine automatically stops operating, and then checks the total number of swings.
Main Parameters:
|
test rate |
Adjustable from 6 to 20 times/min (LED display) |
|
total counter |
0～999999 can be preset |
|
bending angle |
5°～180°±10° |
|
Sample diameter |
1～30mm (can be made according to customer requirements) |
|
steel roller |
3 sets |
|
Roller diameter |
57mm,87.5mm,100mm |
|
Test station |
Group 1 |
|
Heavy hammer |
1, 2, 3, 5, 10, 15Kg each |
|
Working power supply |
AC220V 50HZ ±10% |
|
Dimensions |
700×600×1300mm |
