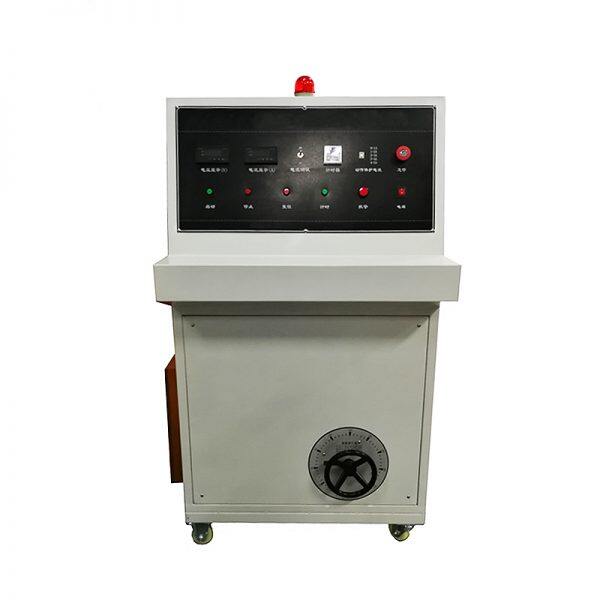

ZL-1038 High Power Wire And Cable Voltage Tester

Usage:

ZL-1038 High power wire and cable withstand voltage testing machine, is designed according to the latest national power industry standards, advanced performance withstand voltage test equipment.ZE8022 high power wire and cable voltage resistance testing machine is a large capacity high voltage self-starting frequency voltage resistance test, control of high voltage test boost and drop, balance and load protection control equipment, is an important test equipment to ensure cable products.

Scope of application:

Suitable for high voltage test of motors, household appliances, instruments, electronic devices, insulating materials, wires and cables.When the power frequency withstand voltage test is carried out on the wire and cable, the transformer with large capacity is needed because of the large capacitance between the electrodes and the large capacitive current when applying the processing frequency voltage.The larger the cable, the longer the cable and the larger the capacitance, the larger the transformer capacity is required.At the maximum test voltage of 5kV, the machine can withstand the capacitive current of less than 5A and the capacity is up to 25kVA.

Technical parameters:

Conditions of use:

The altitude shall not exceed 1000 meters.

The ambient humidity shall not exceed +40°C and shall not be lower than -10°C.

The maximum relative humidity of the air is 85%.

need to install in no explosion gas, no rain and snow invasion, no strong vibration and dry occasions.

Installation and use

1. Before using the equipment, it is necessary to check whether the equipment is damaged, damp and missing parts, screws are loose or not during transportation.
2. The operating platform shall be installed in a safe and convenient place.
3. The safety switch in the high-voltage test site shall be installed reliably to ensure that it is in good condition.
4. Please refer to the schematic drawings for installation wiring.
5. Before conducting the cable high voltage test, it is necessary to check whether the corresponding wiring is correct, whether the safety protection device is intact, whether the grounding is good and reliable, and whether the sound alarm is normal.After confirmation, no-load operation inspection shall be conducted, and normal use shall be put into operation after it is in good condition.
