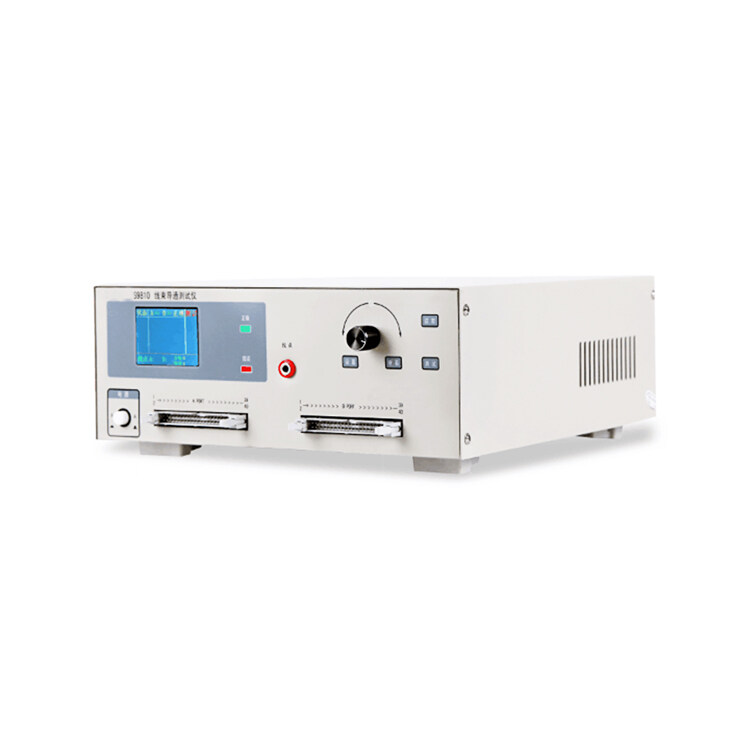

Smart Harness Switching Tester is an instrument used for performance testing on various standard or non-standard cables.
The instrument has the advantages of simple test, high reliability and fast test speed.
The instrument uses a high-performance processor, and a protection circuit is designed in each test port to ensure reliable measurements for users under various conditions. At the same time, the instrument increased the communication function and classification function, and realized the external equipment and instrument. Direct interaction greatly facilitates the customer’s mechanized measurement.
Introduction:
Smart Harness Switching Tester is an instrument used for performance testing on various standard or non-standard cables.
The instrument has the advantages of simple test, high reliability and fast test speed.
The instrument uses a high-performance processor, and a protection circuit is designed in each test port to ensure reliable measurements for users under various conditions. At the same time, the instrument increased the communication function and classification function, and realized the external equipment and instrument. Direct interaction greatly facilitates the customer’s mechanized measurement.
Application:
Main Specification:
|
Display |
2.4 inch TFT true color LCD screen |
|
Points |
80pin/128pin |
|
Speed |
100W P-P/SEC |
|
Function |
Short circuit, open circuit, misalignment, short/open circuit (sway test mode) |
|
Measurement Mode |
Automatic or manual |
|
Measurement Method |
The comparison between the tested wire and the standard wire |
|
Storage |
It can realize the permanent storage of three sets of different standard wire connection data, preventing the |
|
Statistics |
Can count the total number of qualified, the total number of errors, to facilitate statistical yield |
|
Power Supply |
AC50/60Hz 220V±5% |
|
Sorting Output |
NG,PASS,active low |
|
Working Environment |
0℃~40℃,RH≤80% |
|
Interface |
RS232(optional),PLC(optional) |
Performance Characteristics:
Color LCD Chinese and English operation interface
Up to 1 million point-to-point measurements per second
Self-standard wire learning and storage
Supports manual and automatic dual mode
Has a quick point-finding function that makes it easy to find points
Has a powerful counting function and good product rate statistics
Qualified and unqualified sound and light alarm function
Provides advanced short circuit, open circuit, misalignment and momentary open circuit test.
Professional communication interface for data communication with PC and remote control of the instrument.
