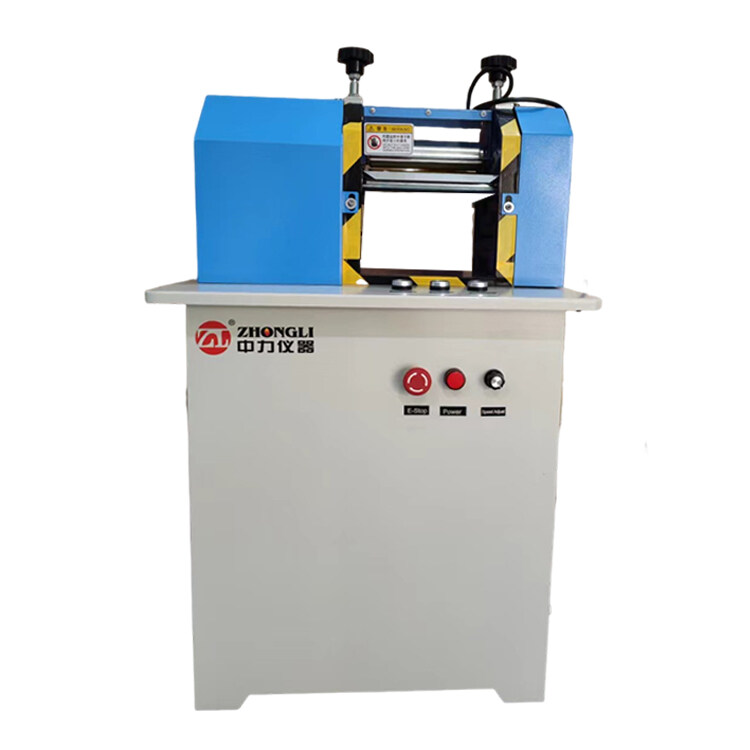

This machine is suitable for testing the mechanical and physical properties of polymer insulation and sheath materials in the GB/T2951.11-2008 standard “General Test Methods for Wire, Cable and Sheath Materials”.
Complete the thermal extension test and tensile test of the sample to meet the standard requirements of the product.
This machine is suitable for testing the mechanical and physical properties of polymer insulation and sheath materials in the GB/T2951.11-2008 standard “General Test Methods for Wire, Cable and Sheath Materials”.
Complete the thermal extension test and tensile test of the sample to meet the standard requirements of the product.
Technical Parameters:
|
Maximum Working Width |
190mm |
|
Chip Cutting Speed |
16.7m/min |
|
Adjustment Range of Upper Pressure Roller |
0-15mm |
|
Slice Thickness |
0.6～15mm |
|
Power Supply |
220V 50HZ |
|
Power Motor |
1.1kw |
|
Machine Dimensions |
800×600×450mm |
|
Weight |
120kg |
