Execution Standards：
This tester is Designed in accordance with the corresponding provisions of UL1581-2006 section 1080 (VW-1 burning test), 1100 sections (horizontal sample / FT2 burning test).
Main function:

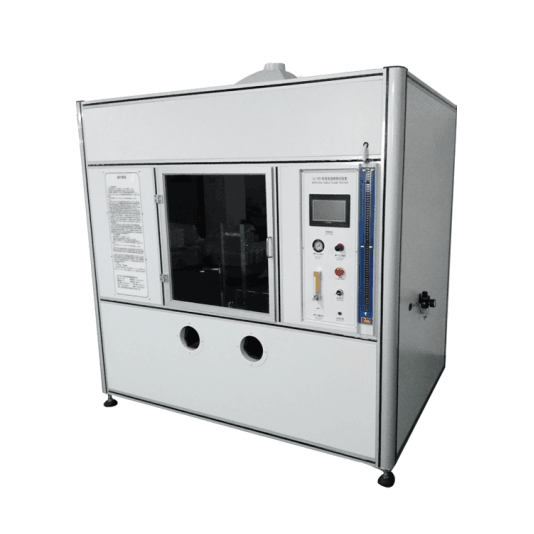

The UL1581 combustion chamber is suitable for testing the flame retardant properties of the insulation layer of wires and cables under abnormal conditions such as overheating and overcurrent. The laboratory consists of a test section and a control section. The control system has a high degree of automation. It has the functions of automatic ignition and temperature control, digital display of temperature and time, convenient observation and recording, and stable and reliable use.
Technical Parameters:
1.High anti-corrosion steel plate seal, spray high anti-corrosive paint, no air circulation during test
2.The front of the box is provided with a toughened glass observation door to facilitate the observation of the test
3.The operation panel is located on the right side of the observation door to facilitate observation of the test situation
4.Internal volume ≥ 4.0m3
5.Thermal sensor (electrolytic copper block 10.0±0.05g and thermocouple)
6.K-type thermocouple, jacket with 0.5mm diameter stainless steel tube
7.Intelligent PID temperature control table matched with K-type thermocouple, reading up to 1000°C
8.Timer: 0 ~ 99H99 / 99M99 / 99S99 can be set arbitrarily, minimum resolution up to 0.01S
9.The test flame takes 54s±2s to rise from 100°C±2°C to 700°C±3°C
10.Main fixtures: test stand and burner torch
11.Test stand: made of SUS304# stainless steel, horizontal bracket and vertical bracket
12.
|
Combustion torch |
Meets the requirements of ASTM D 5025-05, |
|
Standard power |
500W; |
|
Diameter of fire port |
0.90±0.03mm, |
|
length of fire port |
1.60±0.05mm, |
|
Inner diameter of nozzle |
9.5mm; |
|
Height of nozzle at air inlet |
100mm±10mm |
13.Low-noise industrial fan, rapid exhaust, test personnel can not completely touch the gas, harmless to the body
14.PLC control system and large screen touch screen, beautiful interface, easy to operate and easy to understand
15.Gas: Purity at least 98% Methane, self-provided by customer
16.Drive system uses stepper motor control, tilt angle can be set, precise and easy to operate
17.Configurable printer, print test report
18.Control System:
(1) Mainly include: flowmeter, differential pressure gauge;
(2) Flowmeter measuring range: 1000ml/min;
(3) Combustion pressure reducing valve: 1;
(4) U-type differential pressure meter: 1
Main accessories:
