Application:
Cable tester is designed according to the relevant standard requirements of IEC60332-1-1 and IEC60332-1-2.

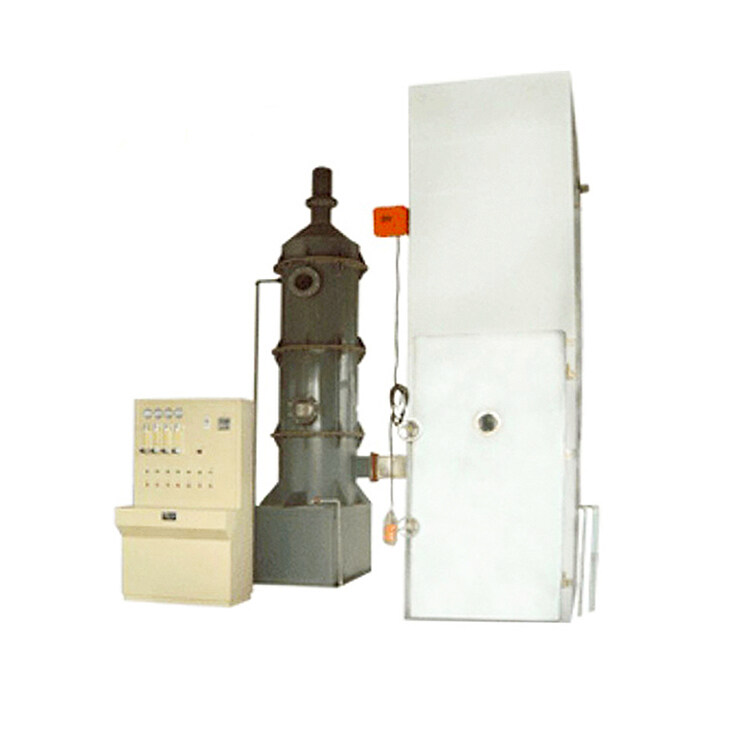

The Cable tester is composed by the test part and control part, using the integrated design, to facilitate the installation at the scene and debug.
The shell of the test chamber and the important components are all manufactured by stainless steel, resistant cigarettes and gas corrosion; The automatic degree of control system is high, has automatic ignition function, temperature and time figures show, so that the observation and records are facilitate and the use of it is stable and reliable
Technical parameter:
|
Flame standard |
IEC60695-11-2,1kw nominal pre-mixed flame |
|
Burner Tube |
IEC60695-11-2 Figure A |
|
Burning Angle |
45° |
|
The rmocouple |
Type K (Ni/Cr – Ni/Al),200°~1050° |
|
The Size O/D |
0.5mm |
|
Temperature Resolution |
1ºC |
|
Standard Copper Block |
weight 10 ± 0 .05 g before drilling. Cu-ETP |
|
Gas Supply |
Propane,min.95% purity |
|
Input Power |
220 V 50 Hz 3A or 115 V 60HZ Optional |
|
Inner Dimensions |
W*D*H=300mm*450mm*1200mm |
|
Conform to standard |
IEC60332-1-1,IEC60332-1-2,IEC60695-11-2 |
