Equipment Description:

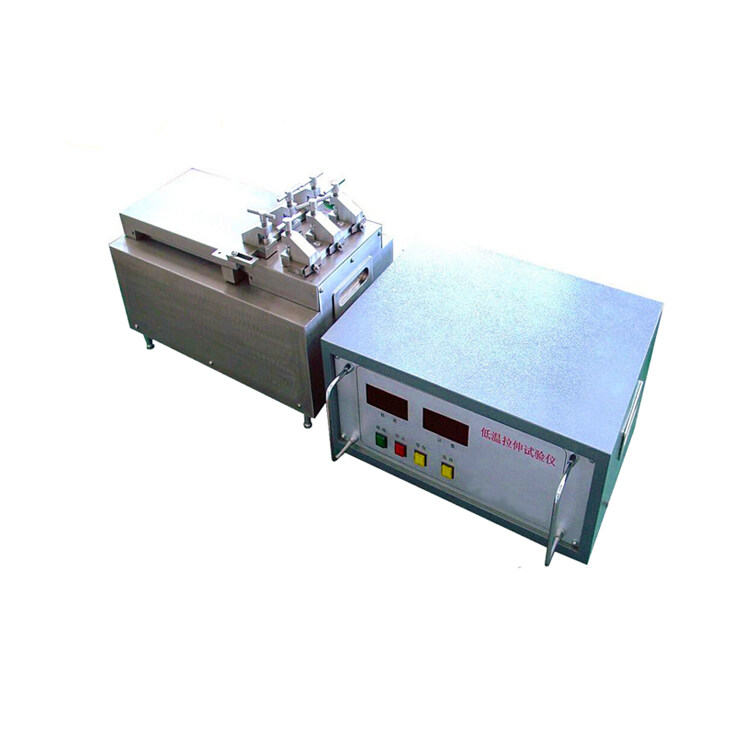

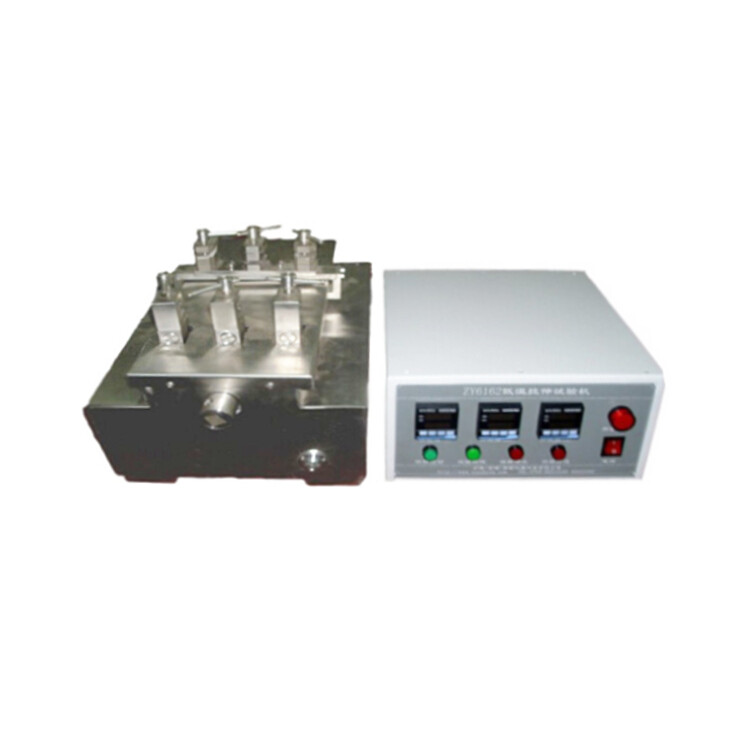

Wire & Cable universal tensile tester specifically used to do aging stretch and low-temperature stretch for polymer-materials (wire and cable insulation jacket rubber, plastics, etc.).This tester applies to wire and cable testing center, inspection station or wire and cable manufacturers as well as the development of polymer materials research institutions.
Corresponding Standard:
Wire & Cable universal tensile tester according to IEC540-9.3.9.4 and GB/T2951.2-1997, GB/T2951.4-1997
Technical Parameter:
|
Model |
ZL-1019 Wire & Cable universal tensile tester |
|
Power |
220V(AC)/50Hz |
|
Max stretching length |
280mm |
|
Drawing speed |
20—30mm/min. |
|
Tensile values |
0.1~500N |
|
Controller dimensions |
340×390×110mm |
|
Stretcher size |
490×265×240mm |
|
Chuck type |
Non-self-tight |
|
Station number |
A station |
|
Displacement accuracy |
Digital display ±1mm |
|
Speed accuracy |
Digital display ±1mm/min |
