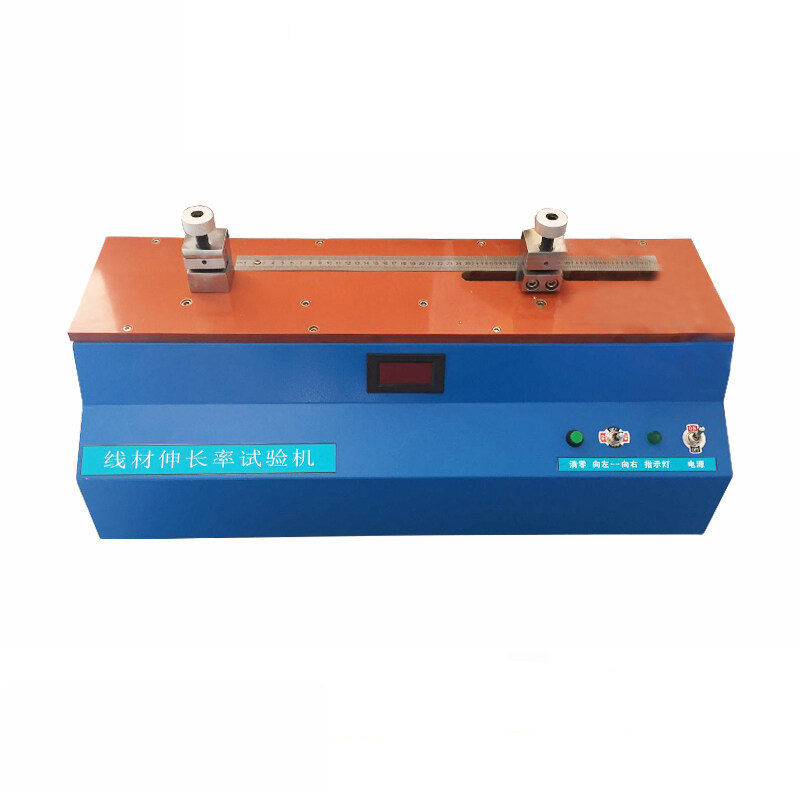

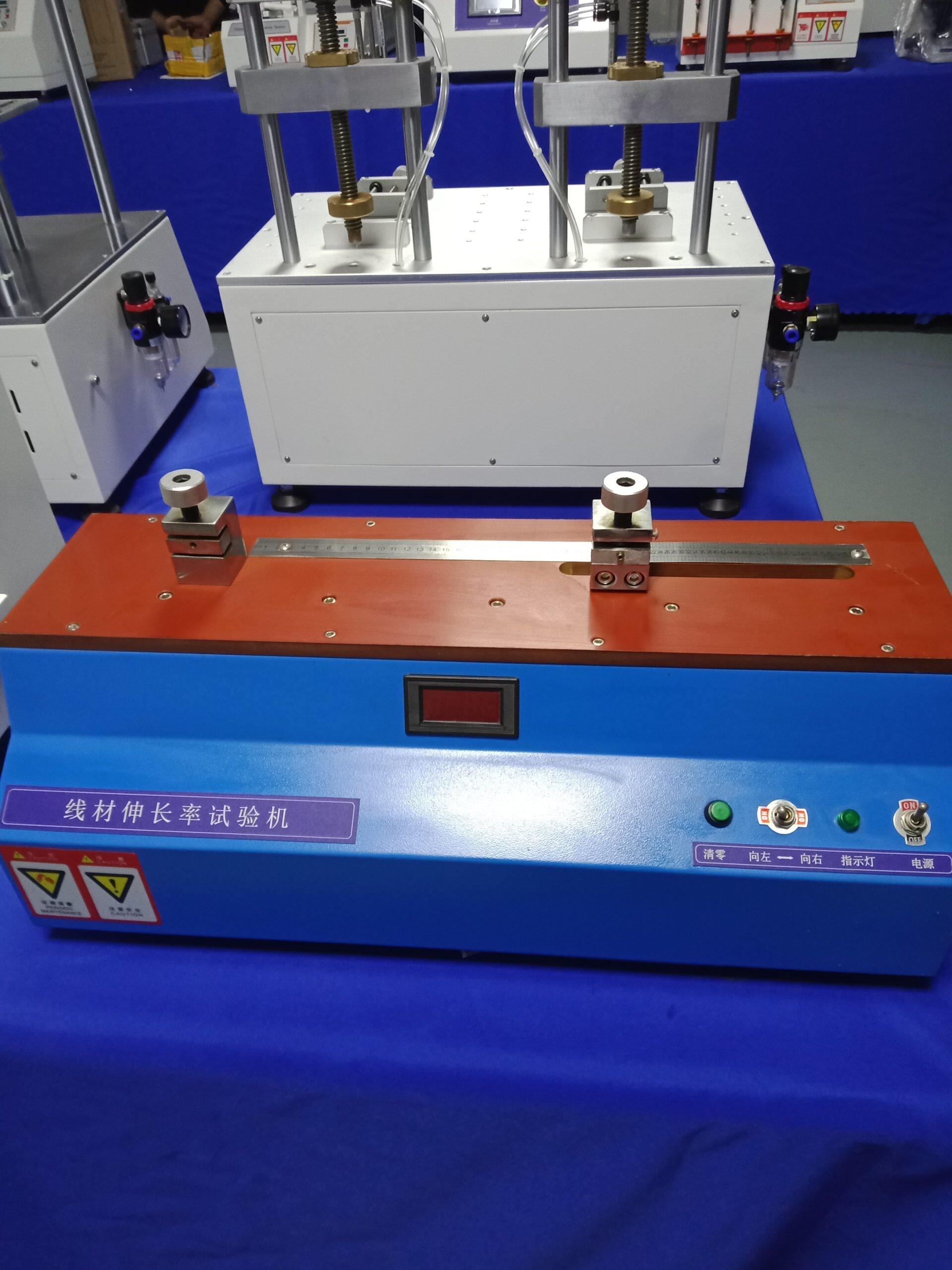

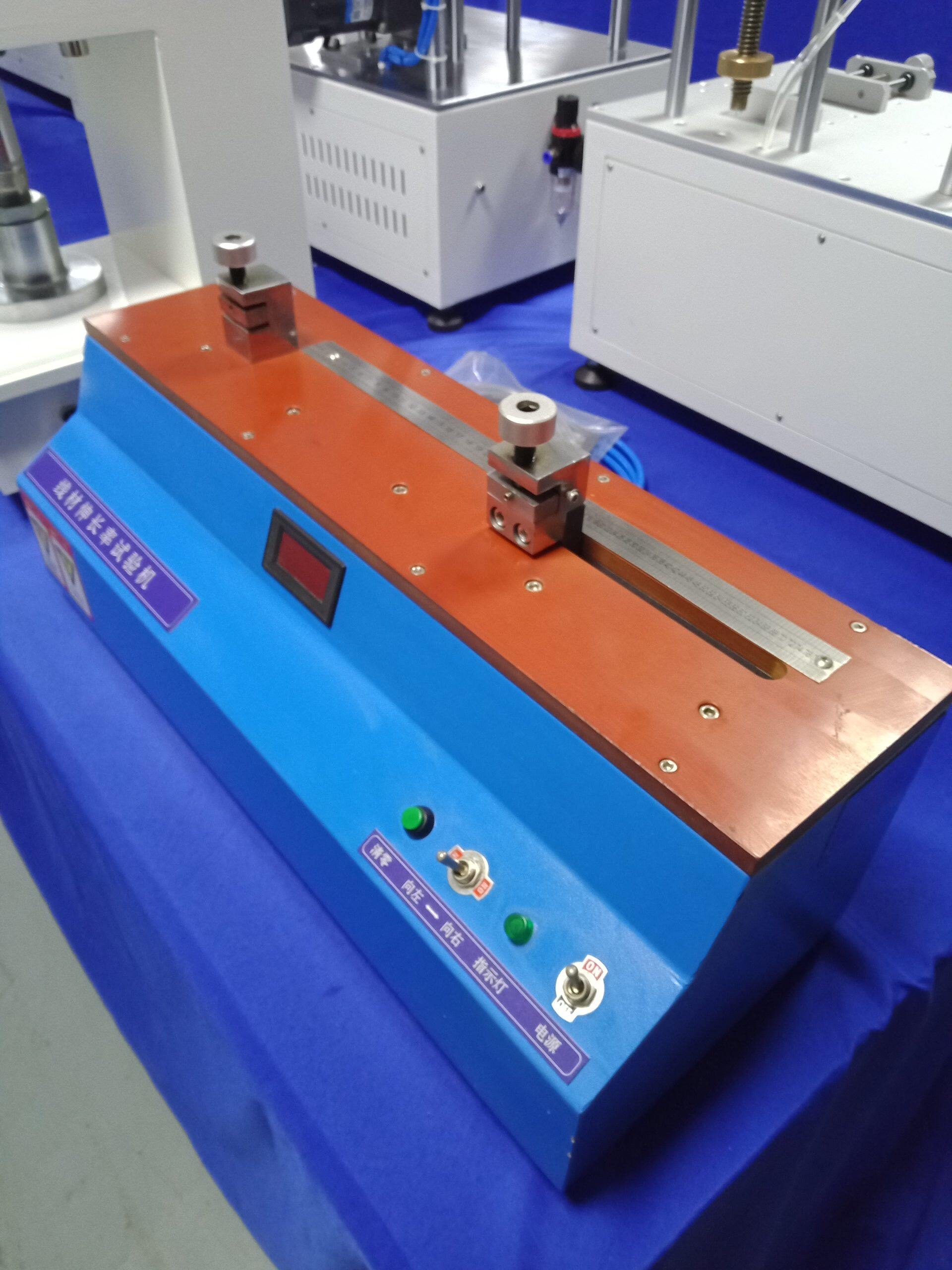

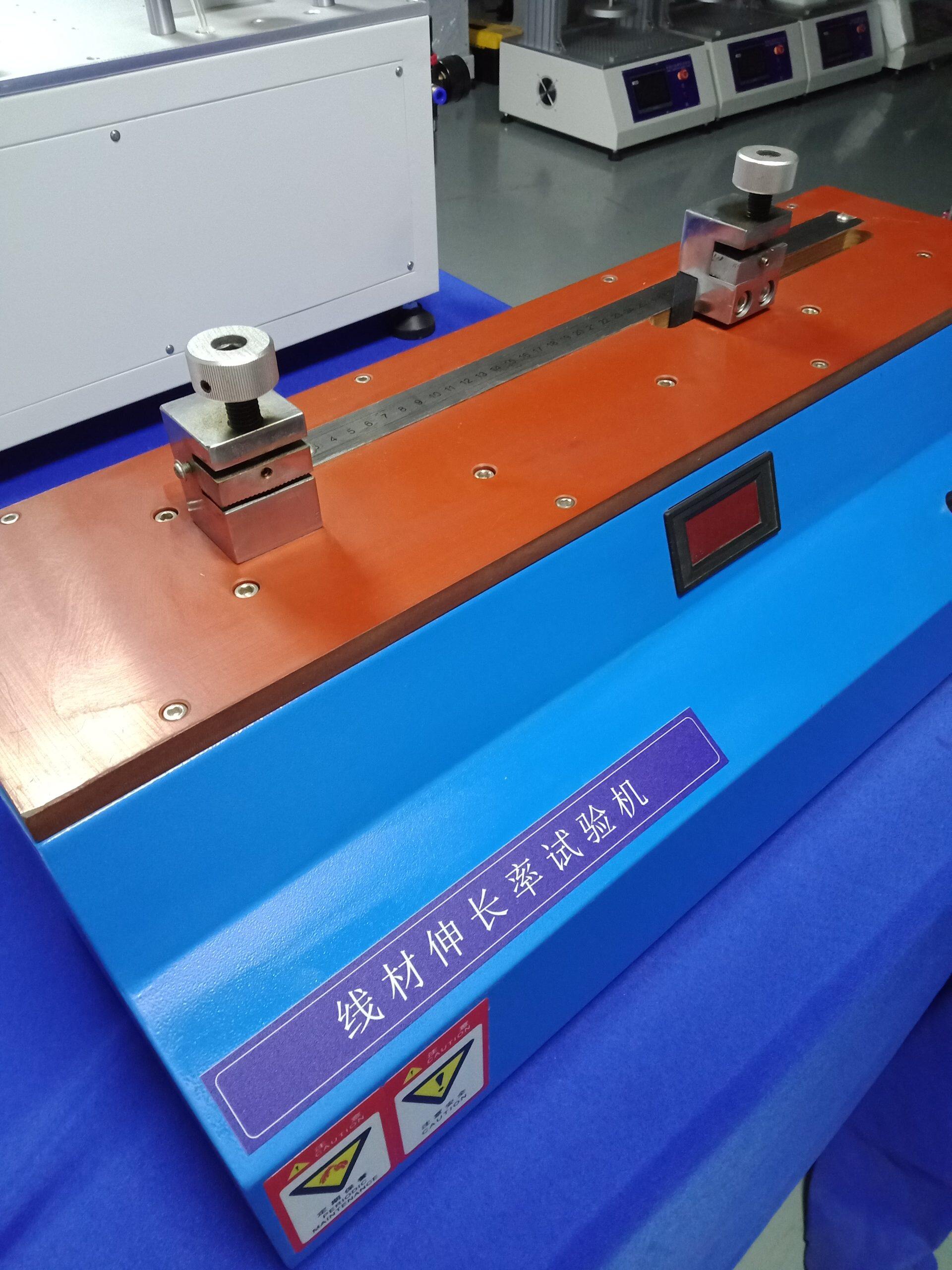

ZL-1009 wire and cable tester are suitable for aluminum, copper, iron and other metal materials to measure elongation. The tester is testing elongation of metal materials; Using advanced software program and sophisticated electronic sensing technology to measure the elongation of tensile specimen, Automatically converted into % and the value of LED display. According to the conductive wire, coupled with advanced control technology to enable this device automatically calculates the high-precision percentage, fully automatic features and simple operate, easy to read, accurate value.
Main features:
According to the conductive wire, coupled with advanced control technology to enable this device automatically calculates the percentage of high-precision, fully automatic features. Is a wire-like material of choice for elongation testing equipment.
Technical parameters:
|
Model |
ZL-1009 |
|
Diameter range |
0.08 ~ 0.8mm |
|
drawing speed |
250 ~ 300mm/minu |
|
Starting Length |
250mmu |
|
extended range |
0 ~ 48% |
|
Display Accuracy |
0.1% |
|
Input Power |
AC220V 50/60HZu |
|
Size |
50 × 21 × 24 (cm) |
|
Weight |
13kg |
