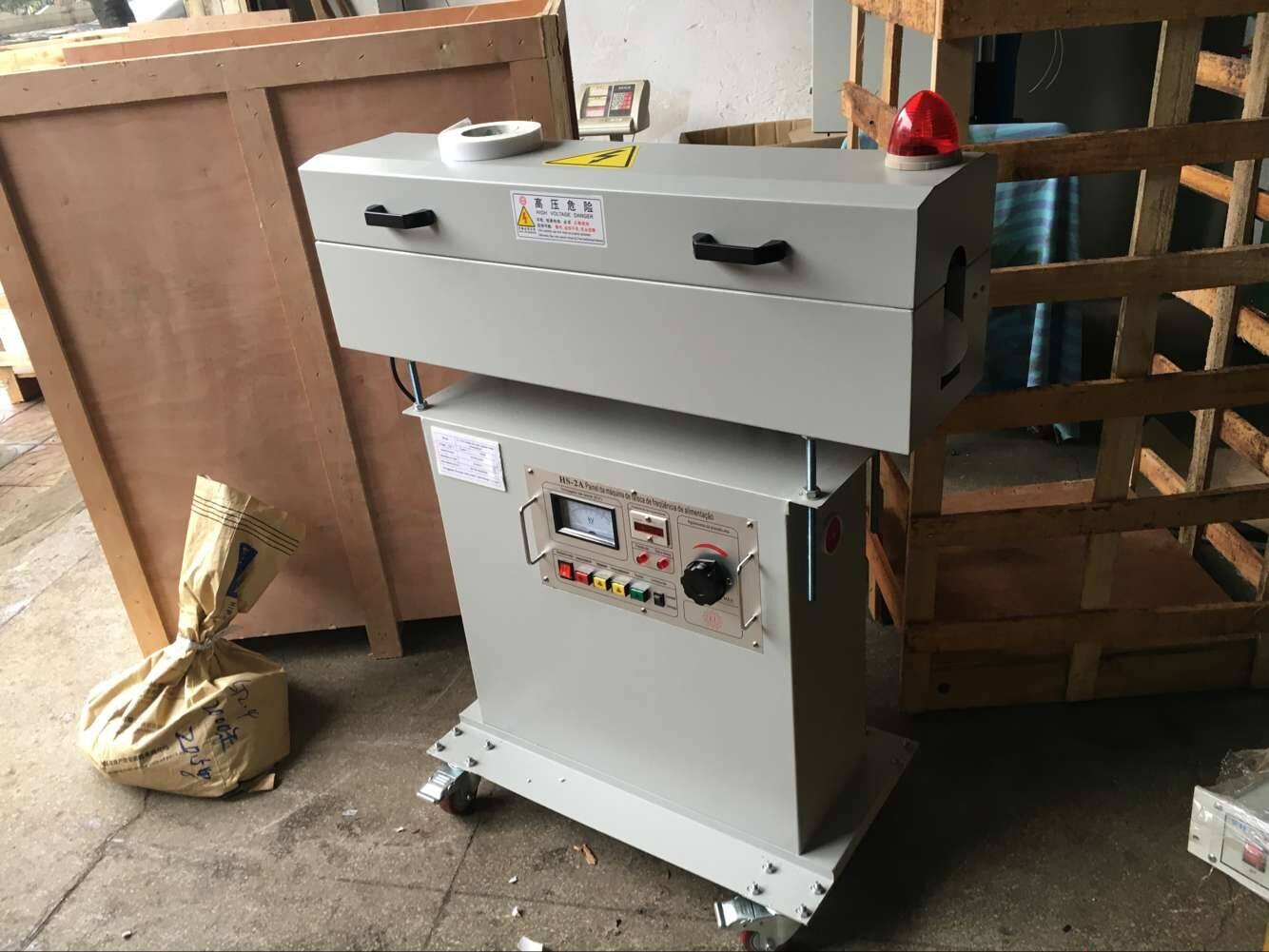

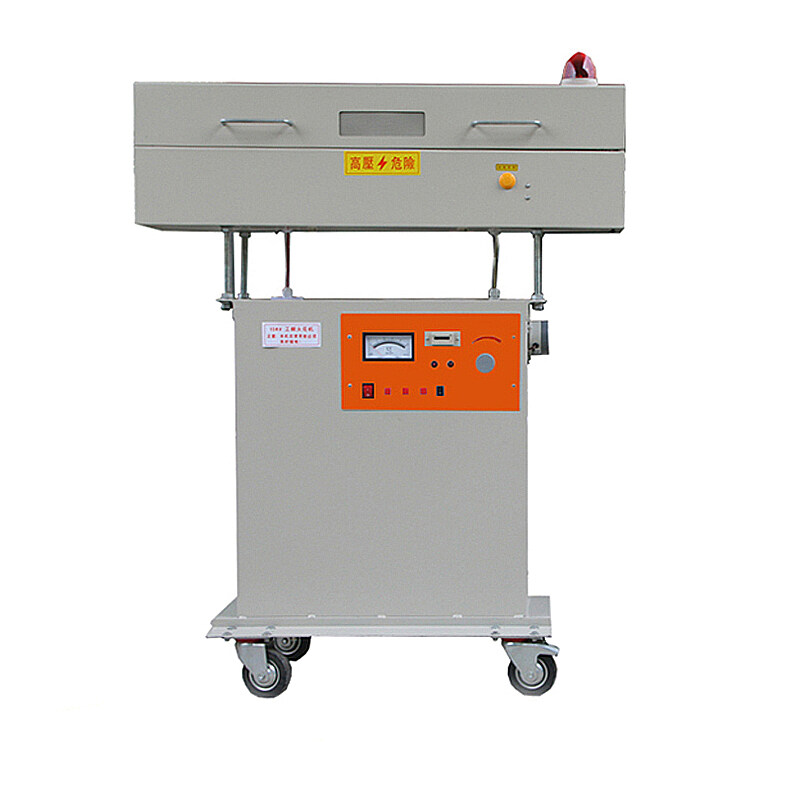

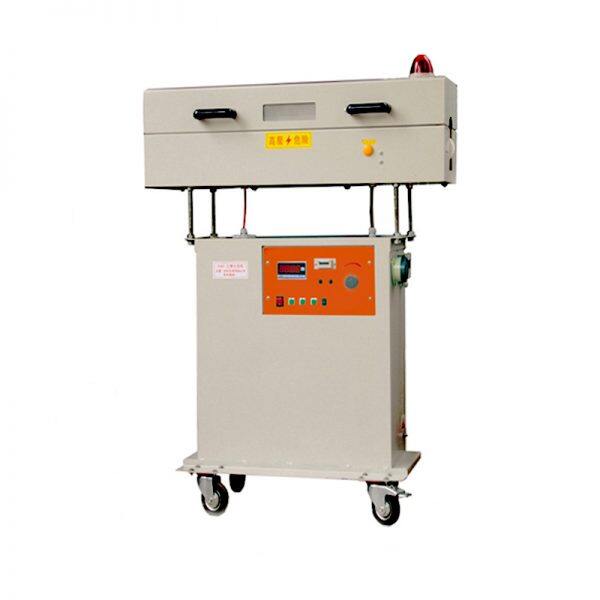

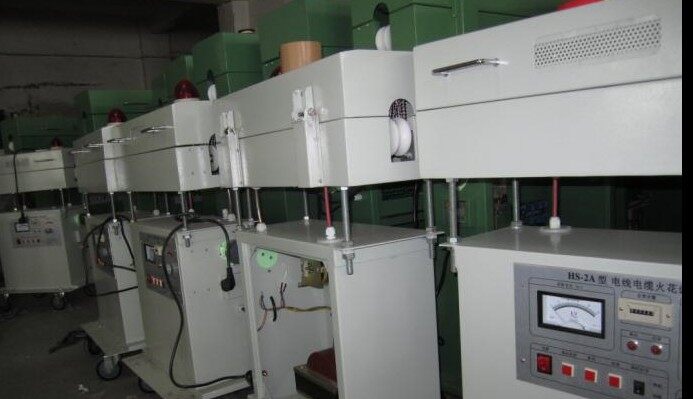

ZL-1008 Cable and Wire Sparkle Tester (Digital type)

1、 Product Description:

The power frequency spark machine is suitable for pinhole detection of insulation and coating layers of plastic, rubber and other wires and cables. It can also be used for intermediate inspection and routine testing of wires and cables. Used for online production inspection or finished product packaging process inspection of extrusion machines.



In the production process of wires and cables, in order to inspect the quality of the wire coating or insulation, the testing method applies a certain voltage between the conductor and the electrode for a certain period of time, and then checks whether it can withstand the voltage value. The electronic circuit also indicates the location of the pinhole and automatically counts. The necessary measuring equipment for inspecting the quality of insulation layer with high voltage is manufactured according to the following two standards: 1) It meets the requirements of China’s national standard GB3048.15-92 (Power frequency spark test method for insulated wire cores of wires and cables), with a sensitivity of less than 600 μ A. 2) Meets the requirements of UL1581-1990 standard in the United States. This machine complies with relevant domestic and international safety standards such as GB3048/UL1581, UL2556/CSA/VDE/JIS.



summary:

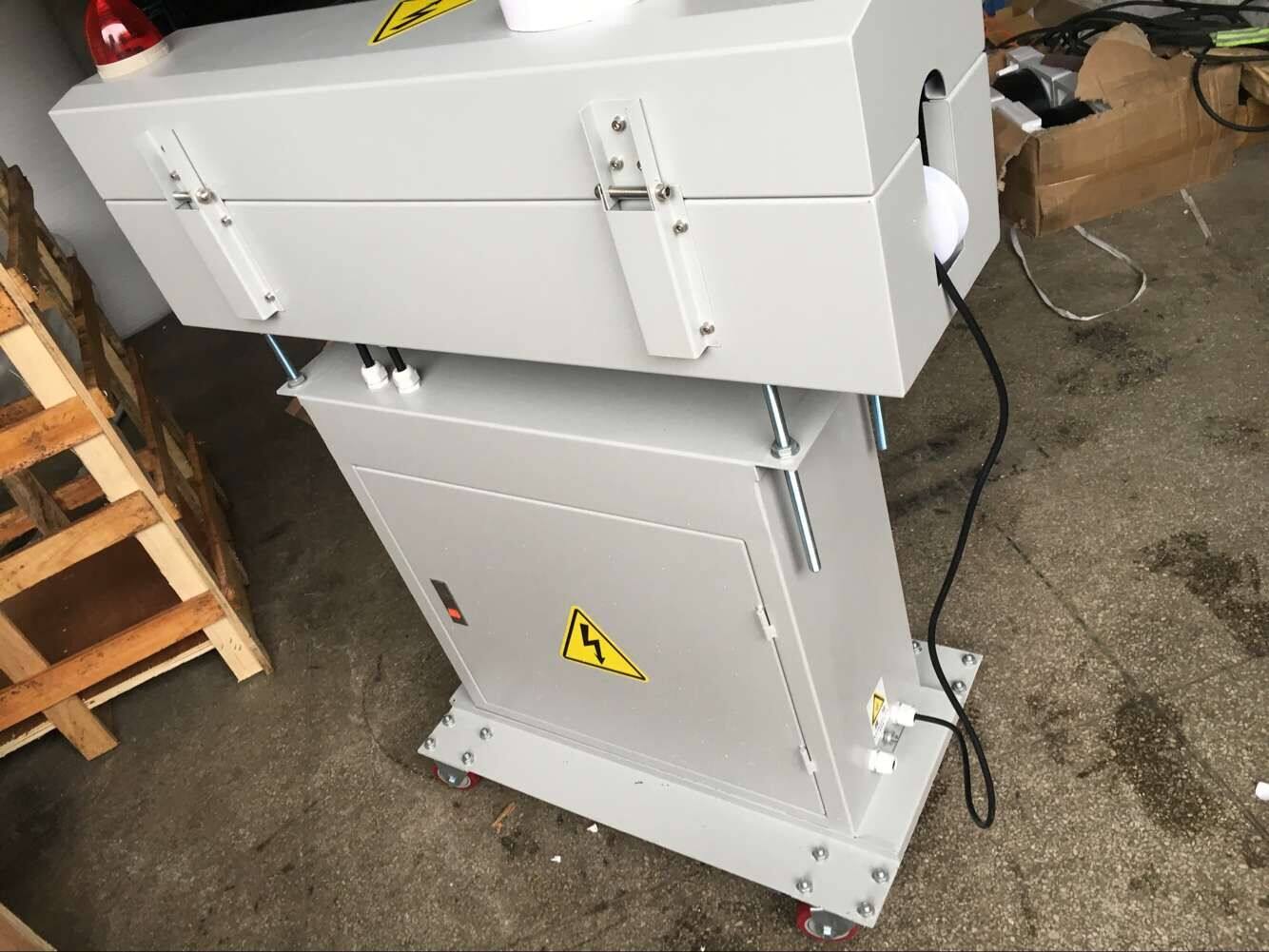

**Split structure, surface electrostatic spraying, beautiful and elegant.

**The output voltage is a continuously adjustable high voltage.

**Alarm mode: manual and automatic selection.

**This machine is of high current type and is equipped with insulation failure breakdown indicator (counting and alarm).

**The high-voltage part is completely enclosed, and there is a grounding protection device at both ends of the test electrode.

**The electrode box cover is equipped with a safety protection interlock switch control device, which automatically stops high voltage when the cover is opened.

**It has a self checking function, which can check its performance at any time to ensure the reliability of the test.

**There is a 24VDC contact output that can be linked and controlled with other production equipment.



Technical parameters:

model	ZL-1008
Power Supply	AC 220V / 49-61HZ
Output high voltage (AC)	0-15KV/300VA, adjustable
Test wire diameter	0-35mm (or customized larger)
Metal bead chain contact electrode	Compliant with national GB standards; Commonly used 304 # specification, diameter 4.0mm
Electrode length	600mm
The height of the electrode center from the ground	900mm-1250mm, adjustable
Test speed	GB/BS5099: not exceeding 720 meters per minute; UL1581/2556: Not exceeding 150 meters per minute
Sensitivity	GB/BS5099/VDE:  ≤600uA；    UL: ＜4mA
Stability	GB: Activate the manual breakdown device and perform 20 consecutive breakdowns without error counting
Instantaneous breakdown current	≤40mA
Fault indication	Sound and light alarm 1-15S adjustable, breakdown counting, 3C contact linkage
