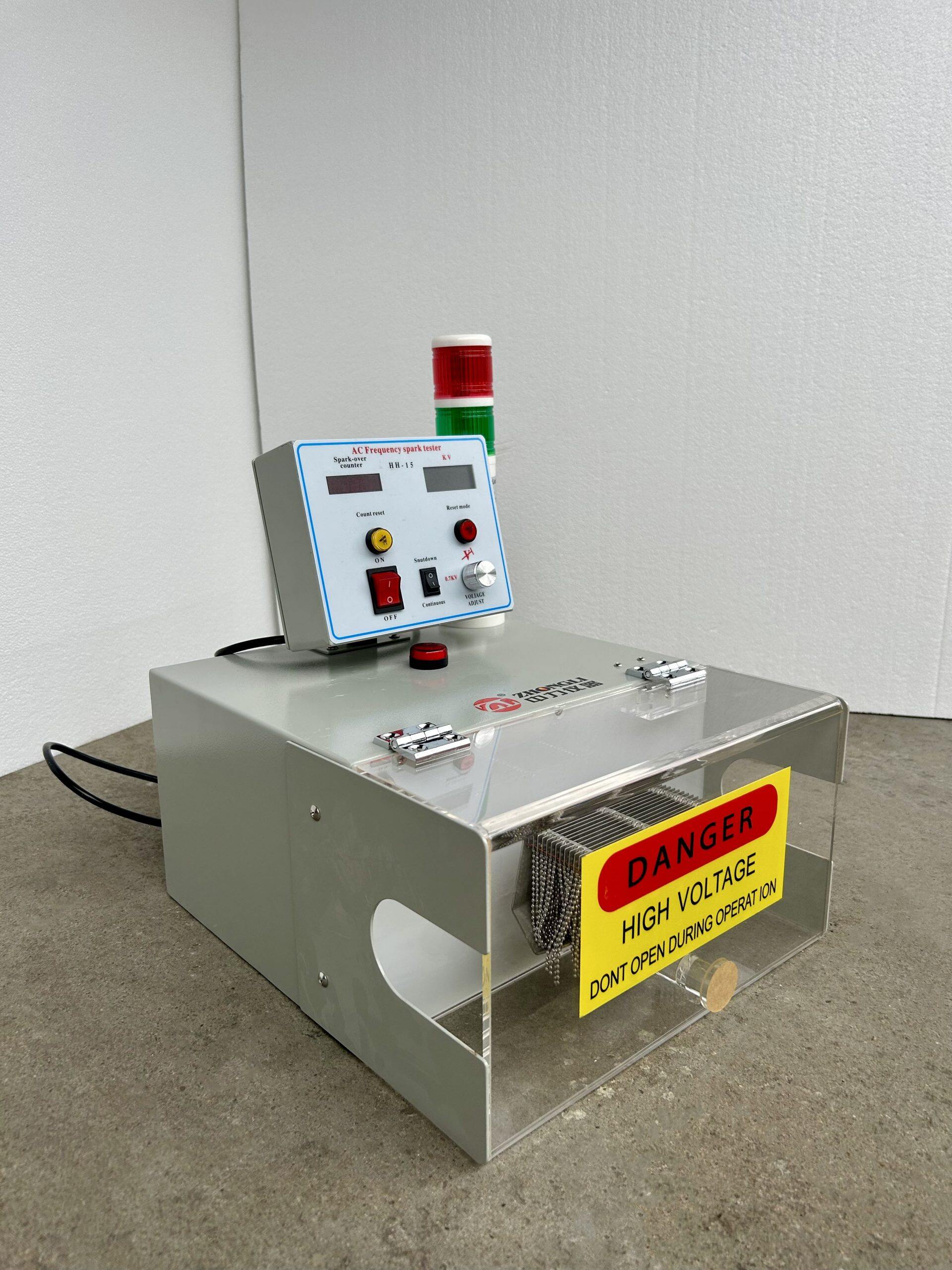

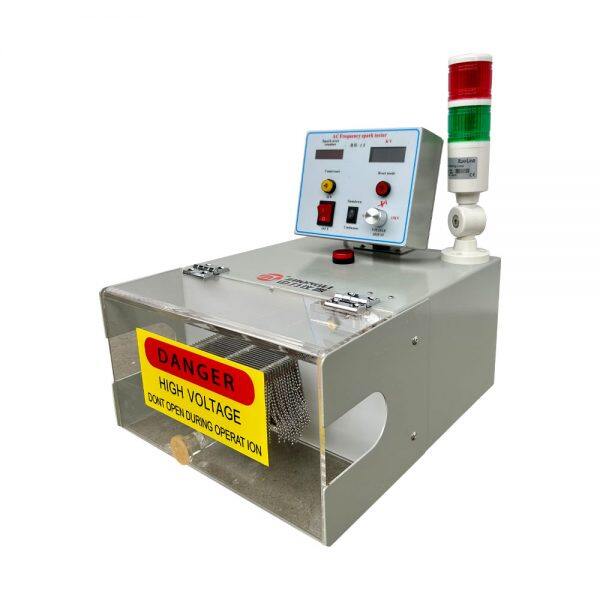

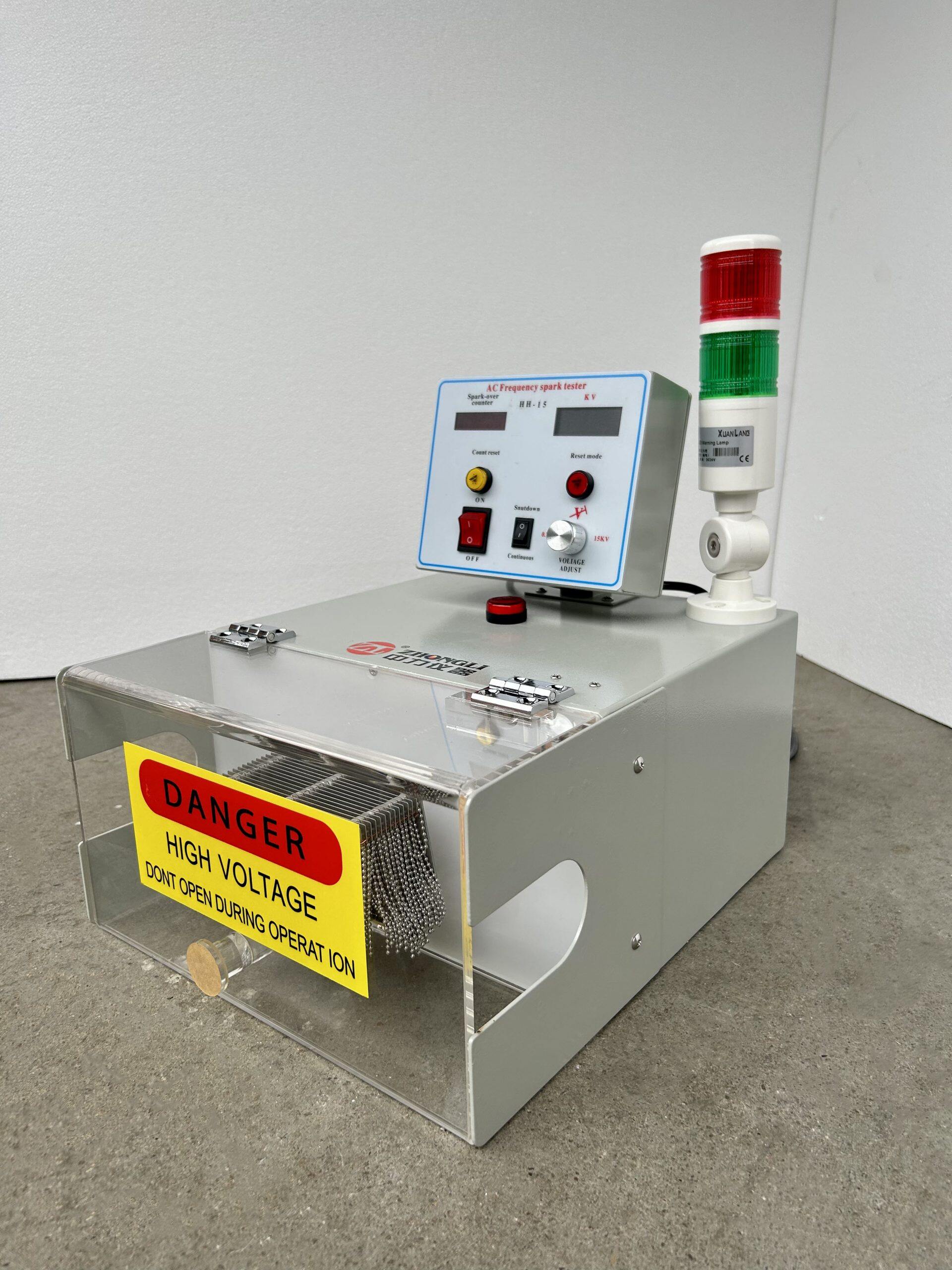

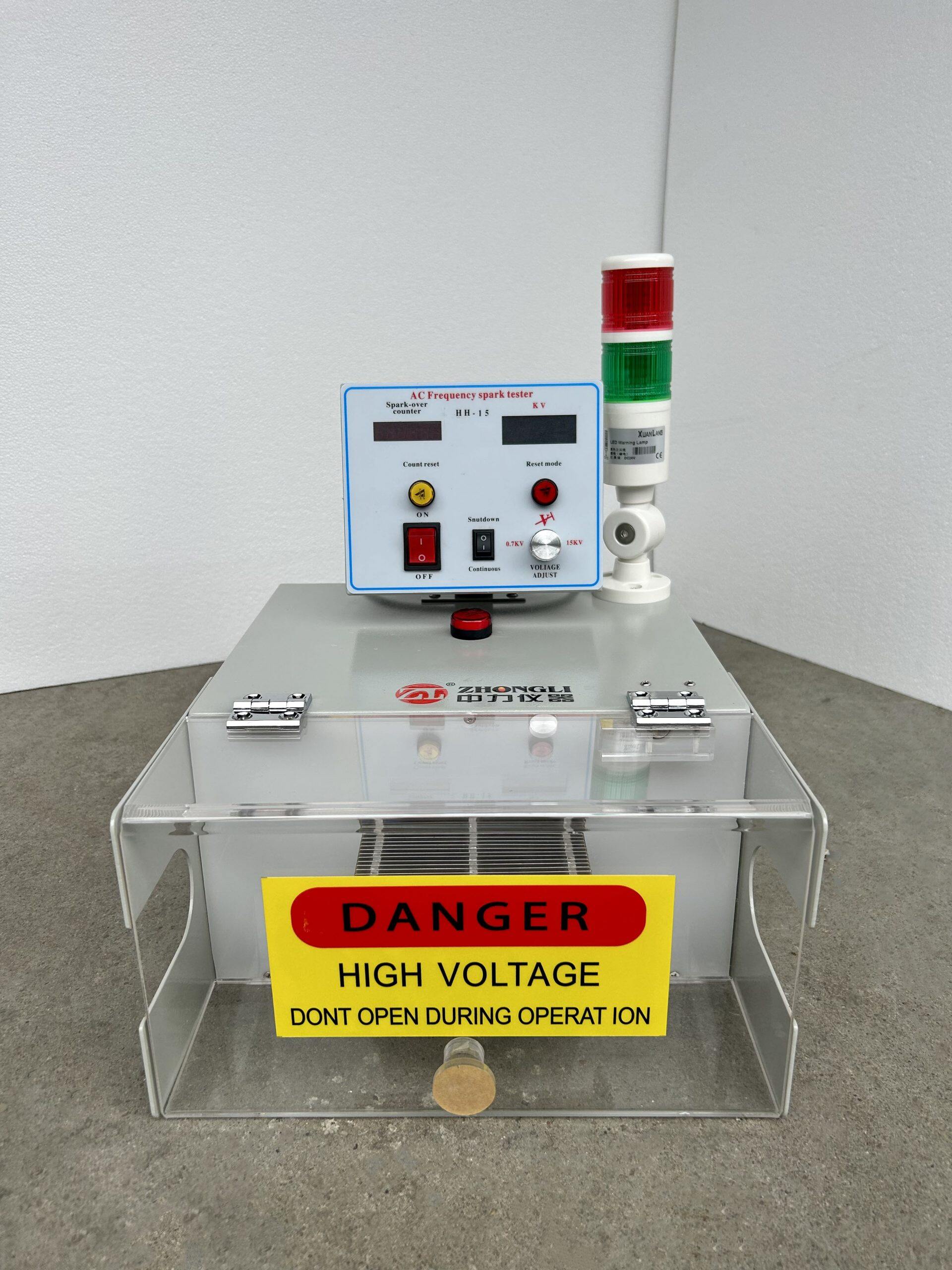

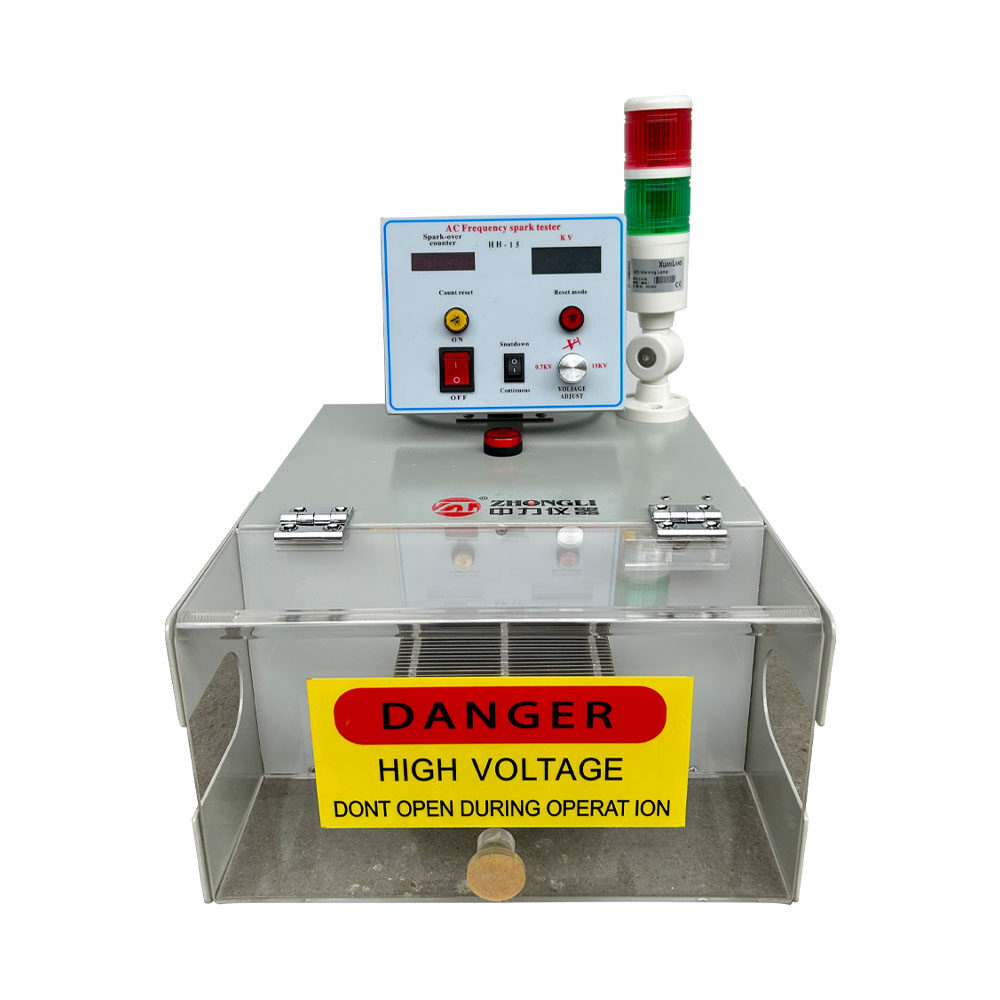

This series of wire and cable spark testing machines is an essential testing equipment used in the production process of wires and cables to inspect the quality of insulation layers with high voltage. This spark machine complies with the requirements of GB3048 “Test Method for Power Frequency Spark of Insulated Wire and Cable Cores”, with a sensitivity of<600 μ A and UL1581-1990 requirements. This series of spark machines uses epoxy cast high voltage transformers with good moisture resistance and strong anti-interference ability. It is equipped with a self check button to check whether the work is normal at any time (breakdown, counting, sound and light alarm), ensuring accurate testing. The high voltage is pointer type.
Specifications:
Test Voltage:1.0~15.0KV. Cable Diameter: 0~25mm. Output Frequency: 2.5-3.5KHz normal. Fast recovery time after fault (0.1s)
The Sine Wave Spark Tester is a fast and reliable instrument used in distinguish wire faults and detecting bare wires. Its high-speed fault detection feature gives you prompt information without worsening the condition of the wire after the test.
The use of high frequency (3KHz) enables a traditional commercial power frequency bead chain electrode to be shortened to 120mm HS015E Model.
The Sine Wave Spark Tester is quality-assured to meet your needs.
Basic Function
Basic Specification:
|
Specification |
ZL-1007 High Frequency Spark Tester For Cable |
|
Output Voltage |
0.0~15.0KV R.M.S. |
|
Test Voltage |
1.0~15.0KV R.M.S. |
|
Cable Diameter |
0~25mm |
|
Maximum Load Current |
4mA Resistive,40mA Capacitive |
|
Output Frequency |
2.5-3.5KHznormal |
|
Electrode lengths |
Bead Chain 120mm |
|
Fault Indication |

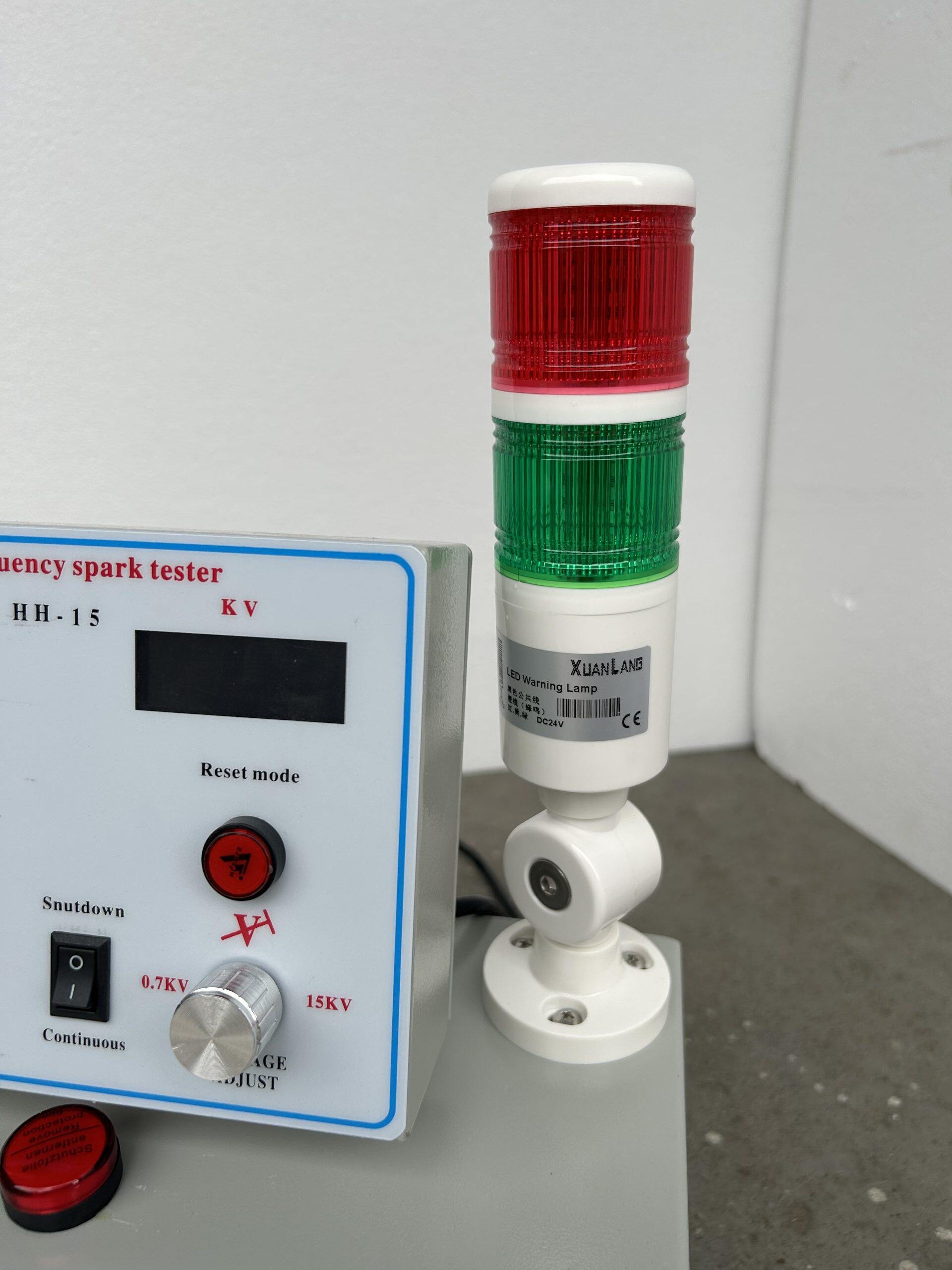

Indicating lamp,Counting by Digital Counter |
|
Output Control |
1 Form C relay Contacts(220VAC/5A)for all wire faults and bare wire faults detected |
|
Input Control |
SP1, SP2 input interlock control |
|
Operating Model |
Extruder Continuous Application |
|
Power Source |
175~264 Volts, 180VA, Single phase, 50/60 Hz |
|
Operation Temperature |
+4~45°C |
|
Operation Humidity |
<90%RH |
|
Signal Cable Lengths |
5M |
|
Weight |
Control Unit =5 kgs, Electrode = 8.5 kgs |
|
Dimension Controller |
360(L)x485(W)x90(H) mm |
|
Gauge Head |
330(L)x200(W)x390(H) |
|
Line Speed |
2000 M/min. maximum* |
*Follow UL 44, any point on the wire being traveled for not less than a total of 18 positive or negative crests of the supplied voltage.
