Wire and cable, power frequency voltage withstand test, because there is a very large capacitance between the Shih-frequency voltage greater processing of capacitive current and therefore require a larger capacity transformers. Cables larger the longer the cable, capacitance greater need transformer capacity will be.
Main functions:Wire and cable, power frequency voltage withstand test, because there is a very large capacitance between the Shih-frequency voltage greater processing of capacitive current and therefore require a larger capacity transformers. Cables larger the longer the cable, capacitance greater need transformer capacity will be.The maximum test voltage 5kV pressure machine, it can withstand 5A the following capacitive current capacity up to 25kVA.
Main features:1) Has a voltage is preset auto step-up feature2) Voltage Automatic step-up mode
Corresponding standard:
This series of pressure tester in line with electrical products standards and IEC (International Electro-technical Commission) standards.
Applicable Industry:
Suitable for motor, household appliances, instruments, electronic components, insulation material, and wire and cable for high voltage test.
Technical parameter:
|

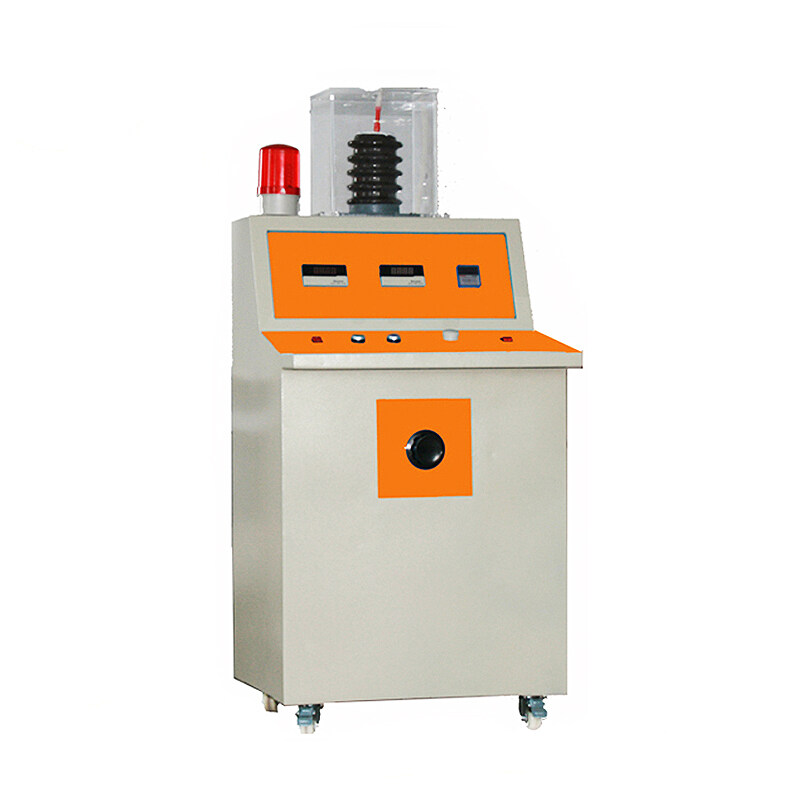

Model |
ZL-1003 |
|
Input voltage |
220V/50HZ |
|
Output voltage |
0~10KV/0~15KV/0~25KV |
|
Striking current |
1,2,5,10,20,100mA |
|
Testing time |
1~99.99 Min |
|
Volume |
60X150X70cm |
|
Weight |
100KG |
