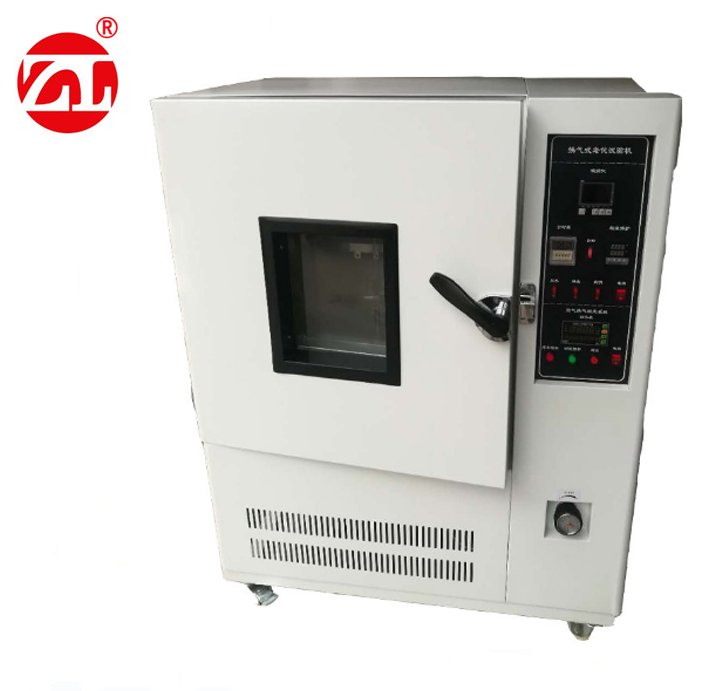

Application:Ventilated aging test chamber is suitable for heat resistance test of electrical insulation materials, electronic parts, plasticized products, etc.; to assess and judge its adaptability to storage and use under high temperature environment conditions. After the sample is aged in air under simulated high temperature and atmospheric pressure, its performance is measured and compared with the performance of the unaged sample.
Test Standard:
In accordance with ASTM D5423-1993, ASTM D5423 Standard Specification for Laboratory Forced Convection Oven for Electrical Insulation Evaluation;
Cabinet-type hot air aging chamber using fan forced convection ventilation, with an air exchange rate of 5 to 20 times per hour.
| Model | ZL-6010 |
| Test Standard | ASTM D5423-1993, ASTM D5423 |
| Inner Dimensions | Width 500×depth 500×height 600mm |
| Outer Dimensions | Width 1200×depth 750×height 1650mm, subject to the actual product |
| Operation Panel | The control operation panel is located on the right side of the machine; (as shown in the figure) |
| Door Opening Method | Single door opens from right to left |
| Observation Window | The door has a tempered glass window, specification |
| Observation Window | W250*H350mm |
| Inner Material | 304# stainless steel sand panel, thickness 1.2mm |
| External Material | cold-rolled steel plate, 1.2mm thick standard plate, powder coating treatment; (wrinkle grayish white) |
| Product Material | A set of two built-in turntables, 300mm in diameter |
