Equipment Name:

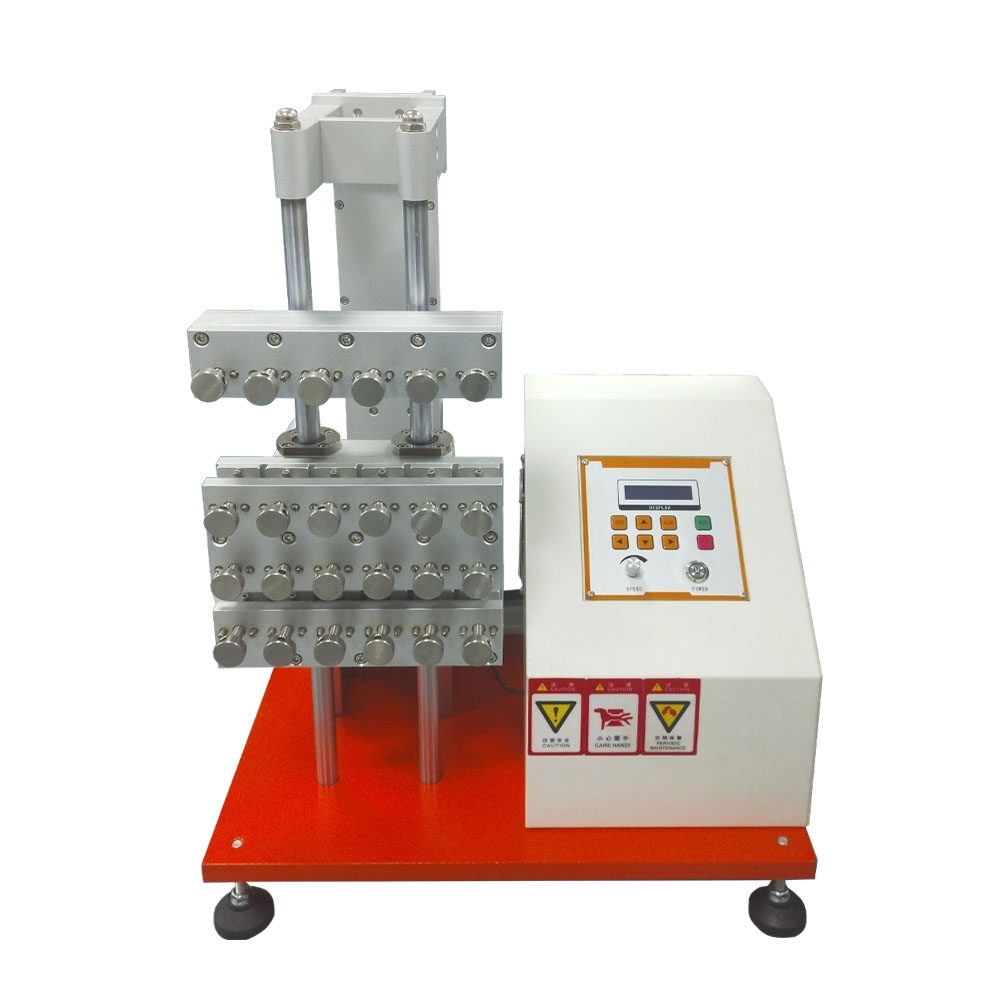

ZL-3006B Rubber Fatigue Cracking Tester
Equipment Use:
Continuous bending fatigue of rubber, leather, synthetic leather, shoe soles, etc., observe the degree of cracking to understand or compare their durability.
Applicable Standards:
JIS K6260 Dematia method
ISO 132 Demesia type
ASTM D813 Rubber Deterioration—Test Method for Crack Growth
ASTM D430 Rubber Deterioration—Test Method for Dynamic Fatigue
BS-903 Physical tests of rubber: Determination of abrasion resistance
GB/T 13934 Vulcanized rubber or thermoplastic rubber – Determination of flex cracking and crack growth
Performance Characteristics:
All controls are integrated on one board, touch buttons, connector connection, extremely convenient operation and maintenance
Technical Parameters：
| Motor | 1/4HP |
| Volume | 550*440*690 mm |
| Counter | 0~999,999, automatically stop and alarm when reaching the set number of times |
| Weight | 78kg |
| Power Supply | 1∮, AC220V, 3A |
