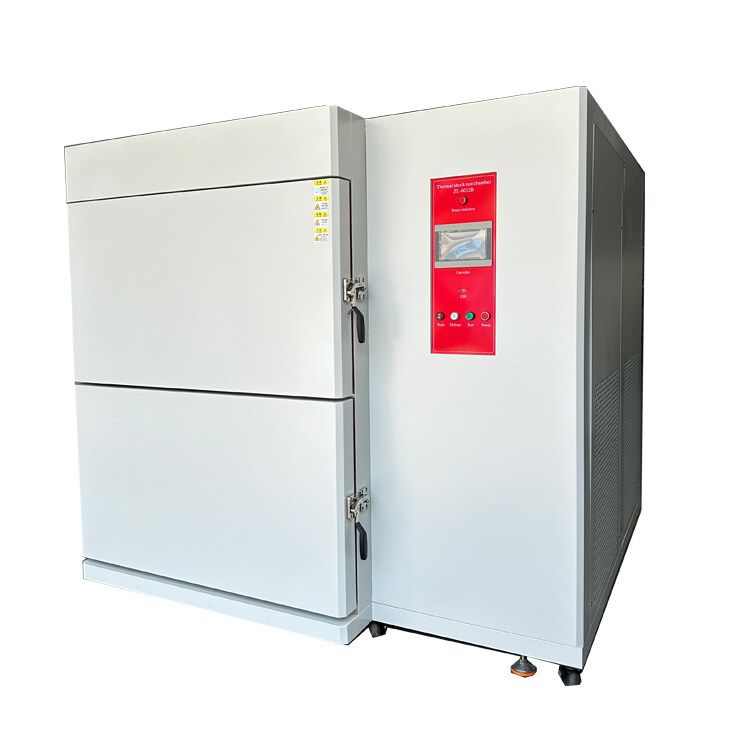

Zone Thermal Shock Test Chamber system structure is divided into high-temperature tank (preheating zone), low-temperature tank (pre-cooling zone), part, the sample is placed in the test area, the impact of high temperature or low temperature zone temperature through the high pressure cylinder drive basket high and low temperature zone switch for temperature shock, so as to achieve the purpose of the temperature change, the test products for static type. The test chamber is suitable for assessing the ability of the whole product, components, parts, materials, etc. to withstand rapid temperature changes, the temperature shock test in order to assess the test sample in the shortest possible time due to thermal expansion and contraction.
Product parameters：
Model:ZL-6012
Impact Temperature:-40℃~+150℃
High-Temperature Range:80℃~170℃
Low-Temperature Range:-60℃~-10℃
Heating Rate:2-3℃/min
Cooling Time:1 ℃ /min
Temperature Stability:±0.5℃
Temperature Accuracy:±1℃
ImpactRecover Time:High-temperature（150℃）about 30min
Low-temperature（-40℃or-55℃or-60℃）about 30min
Impact recover time 5min
