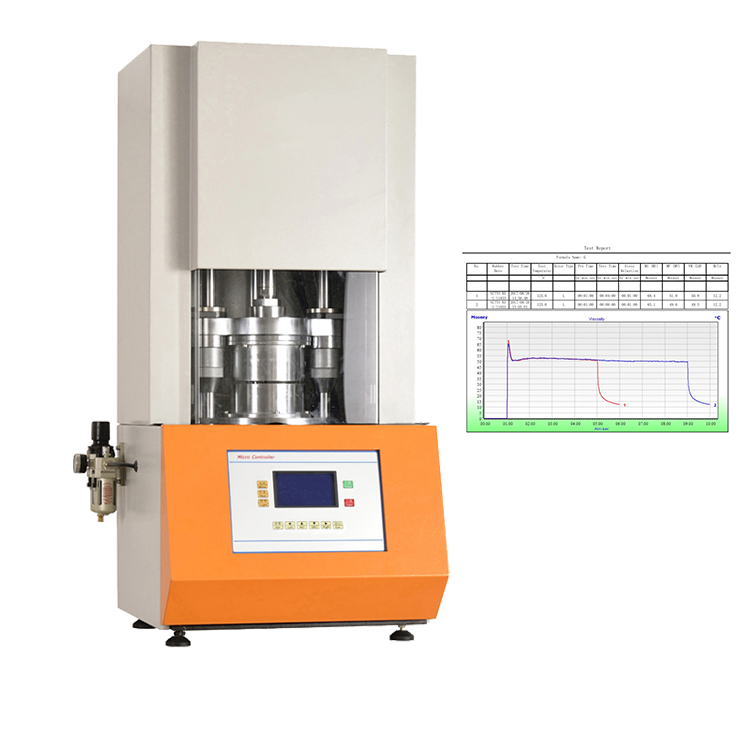

Mooney viscometer

Curve：
1. Viscosity curve
2. Early scorch curve
3. Stress relaxation curve
4. Upper and lower die temperature curve

Data：
1. VM, MOONEY viscosity test, the lowest viscosity value in the last 30 seconds
2. LM, MOONEY viscosity test, the lowest value from the test process to the end point
3. The lowest value of MV, MOONEY viscosity and SCORCH test to the end point
4. Scorch time of T3 T18 (S), T5 T35 (L)
5. Vulcanization index of T18 3 T35 5 (L)
6. TRLX stress relaxation time
7. MRLX stress relaxation value

Main Features：
1. Viscosity and time axis can be switched automatically and set arbitrarily
2. The computer does not need to insert any interface card, the wiring is simple, and the installation and maintenance are easy
3. Easy to operate, users can automatically test, print and file automatically without touching the computer
4. The computer automatically displays the test value/temperature and time, which is convenient for users to view
5. All graphics can be set in different units (ib-in, kg-cm, N-m, dN-m, Moony)
6. There are two modes of graphic range, automatic and manual, for you to choose
7. The test data is stored in a database, which meets the needs of modernization
8. With export and import functions, it is convenient for data transmission and storage
9. More than 20 report items to meet various purposes
10 .Multiple curves can be displayed at the same time, and the cursor can be used to read any point data on the curve
11.The report items can be added or modified without omission
12. Windows operating system, support traditional/simplified/English/, convenient for international people to use
13. The circuit design adopts the PCB method that is not easy to fail, and makes the maintenance extremely convenient
14. Temperature control has PID automatic calculation function
15. The upper and lower mold cavities are easy to disassemble, easy to clean and maintain
16. After the test is over, the upper and lower molds are automatically opened, and the rotor is automatically ejected. It is very convenient to take out the rotor
17. The temperature and Mooney value can be freely set and corrected on the computer
Main Technical Parameters:
Model
ZL-3002
Manufacturing, Inspection, Quality,
Executive Standards
ASTM-D2084, ASTM-D5289, ISO-6502, ASTM-D1646, IOS-289, JSC-K6300
Temperature Control Range
Room temperature ~ 200 ℃
Temperature Display Resolution
0.1 ℃ temperature fluctuation ± 0.3 ℃
Heating Time
Room temperature → 100 ℃ ~ 6min
temperature recovery time ~ 1 min
Mooney Measurement Range
200 Mooney values,
Mooney Display Resolution
0.1 Mooney value
Rotor Mode
large (L) small (S) two
Rotor Speed
2±0.02r/min
Air Pressure
5KG
Machine Quality
about 270KG
Volume
550×570×1130 mm3
Total Power
680W
