ZL-6016C IPX78 Rain Test Chamber

Equipment Overview:

Application Background: The damage to products and materials caused by natural water (rain, seawater, river water, etc.) causes incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength loss, swelling, mold, etc., especially electrical products due to rainwater caused by short circuit and very easy to cause fire. Therefore, for a specific product or material shell protection water test is essential a key procedure.

General application areas: outdoor lamps and lanterns, household appliances, auto parts and other electronic and electrical products.

Equipment function: The main role of the equipment is used for electronic electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulation of rainfall climate conditions, the physical and other related properties of the product testing. After the test, through the test to determine whether the performance of the product to meet the requirements, so that the product design, improvement, calibration and factory inspection use.



Implementation Standards:

Comply with IEC60529:1989 +A1:1999 +A2:2013 “Degrees of protection provided by enclosures (IP Code)”, GB4208-2008 “Enclosure protection level (IP Code)” 14.2.7 and GB7000.1 “Luminaires Part I: General requirements and tests” 9.2.8. General requirements and test” 9.2.8 requirements.

1.Characteristics of the equipment: suitable for conducting IPX7 waterproof level test of products.

2.This box allows a maximum water depth of 1.2 meters, the bottom area: 600 * 600mm. (can be customized)

a, the inner layer is made of tempered glass, to ensure long time use without rust, no leakage, b overall beautiful and generous.

3.Inlet and outlet water pipeline is installed under the tank, and the water inlet valve is located above the back.

4.stainless steel bottom frame with load casters and foot cups, easy to move and fixed.

5.The stainless steel ruler accurately displays the water level.

6.A stainless steel hook is welded above the inner tank, which is convenient for users to take and put test samples.



Technical parameters:

External dimensions of Water Tank	Approx. length 650*depth 650*height 1400mm
Box Size	L600*W600*H1200mm
Maximum Test Water Depth	1.2m
Inner Box Thickness	1.5mm
Water Level Adjustment Method	Water inlet/drain valve, manually adjustable
Water Level Display	Stainless steel ruler (accuracy 1mm), horizontal visual inspection



III. Main configuration table:

Name	Specification	Quantity
Inner Box	Tempered glass homemade	1 set
Tempered Glass	Thickness 12mm	1 piece
Caster	Global/3	4
PP-R Valve Valve	6 points	2
Stainless Steel Ruler	1.5m (accuracy 1mm)	1 hand
Piping Accessories	PP-R	1 batch



1. Random accessories：
2. a copy of the operating instructions;
3. a copy of the factory certificate of conformity;
4. a copy of the equipment warranty card;
5. 3 meters of water pipe (2).



Conditions of use：

The user guarantees the following conditions and completes the corresponding connection



Use site

Level ground, smooth drainage, waterproof treatment of ground and wall, installation of floor drain or drainage ditch

The ground load-bearing capacity is not less than 200kg/m2

The site is well ventilated

No strong vibration around the equipment

No flammable, explosive, corrosive substances and dust around the equipment

Appropriate space for use and maintenance around the equipment:

Rear side, left and right side, top of the equipment: 600mm; front side of the equipment: 800mm



Environmental Conditions

Temperature: 5℃～35℃

Relative humidity: ≤85%

Barometric pressure: 86kPa～106kPa



Product Real Shot:

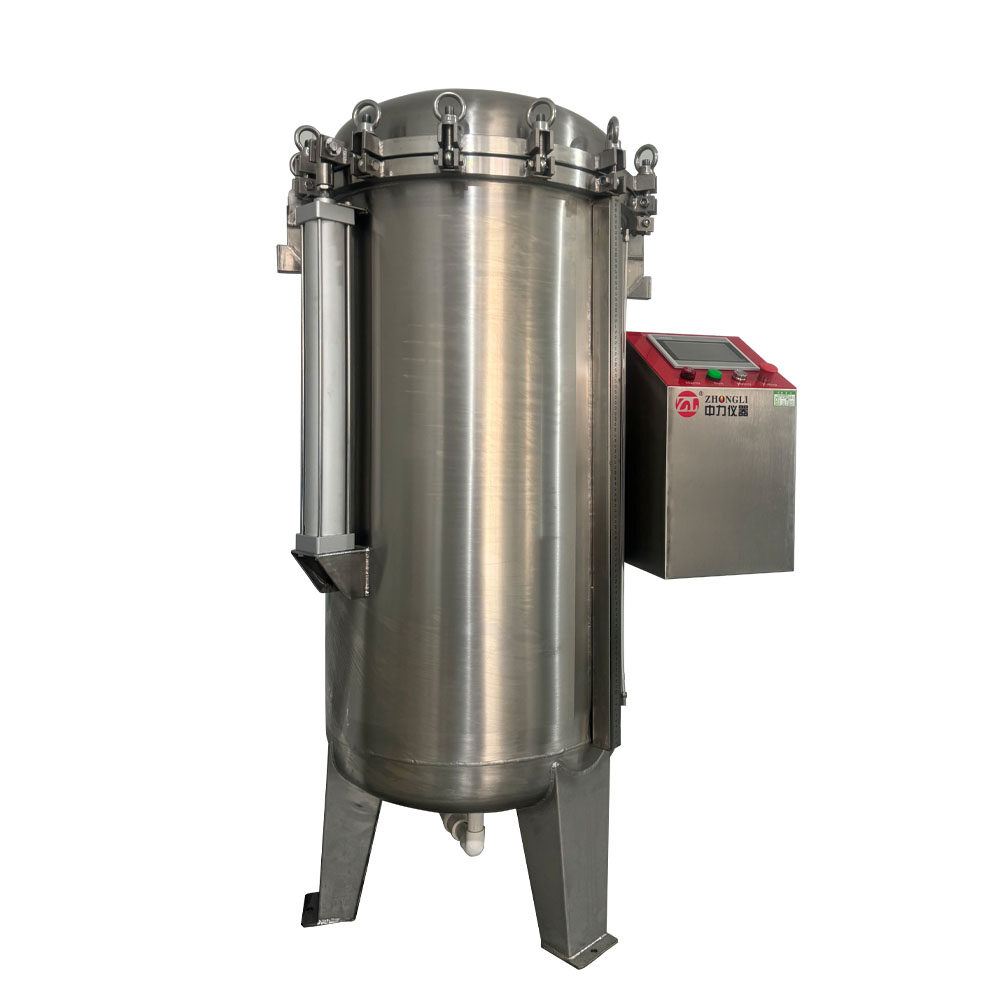

Box structure

The box is stainless steel, stainless steel tank thickness: 3mm

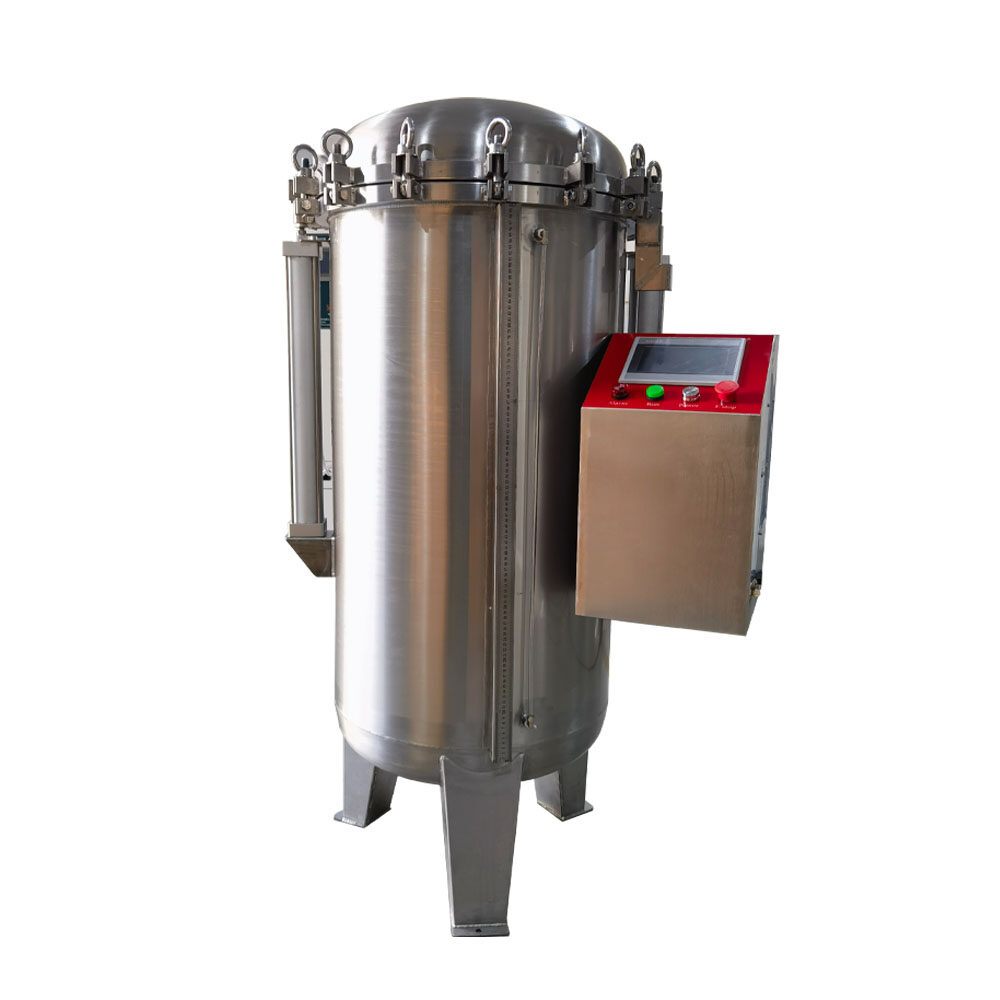

Cylindrical box, save laboratory space
