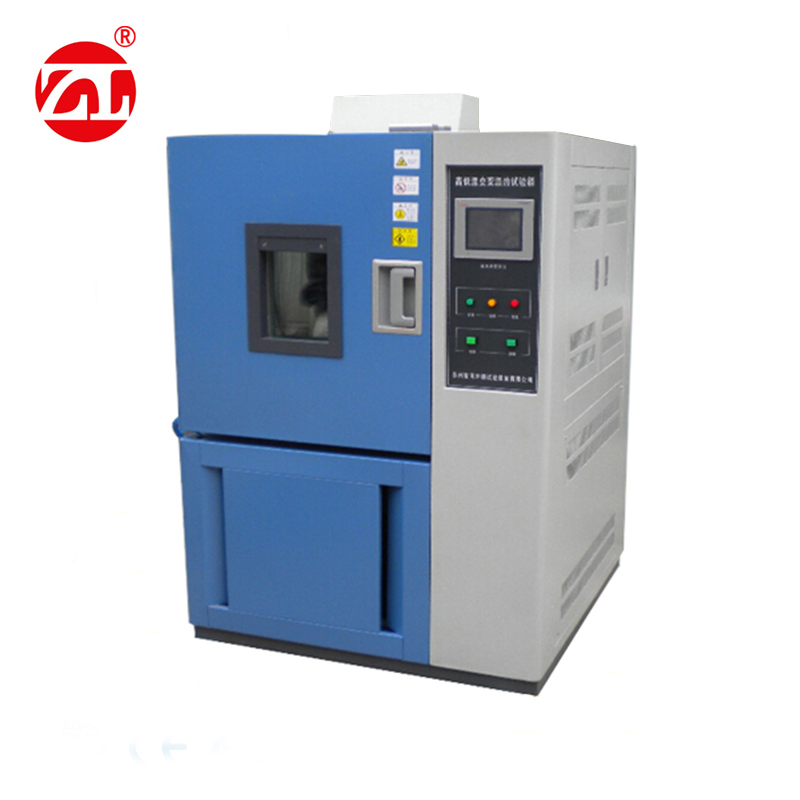

ZL-6019 High and Low Temperature Testing Chamber

Equipment Summary:

 Temperature test chamber can test the material property in high and low temperature, such as electrical, electronic products, as well as their original devices, The testing equipment is mainly made according to the national standard and user-defined requirements, it simulate the environment to test proformance of material as well as other relevant characteristics of physical at low temperature or high temperature, Through testing to determine product performance whether it is still be able to meet the intended requirements.



Applicable Industries :

Applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals,  chemicals, building materials, aerospace, medical care … and so on.



Technical Parameter:

Model		ZL-6019-80	ZL-6019-100	ZL-6019-150
Inner Size D×W×H		40*50*40 cm	40*50*50 cm	50*60*50 cm
Index	Temperature	-40℃ to 150℃
	Fluctuate/ Uniformly	≤±0.5℃/.+2℃ to 3℃
	Heating-up Time	-40℃ to 100℃  about 55min
	Cooling Time	25℃ to -70℃   about 80min
Control System	Controller	LED digital P,I,D, +S,S,R.microcomputer controller
	Accuracy	Setting accuracy temperature ±0.1oC,directed accuracy temperature ±0.1℃,resolution ±0.1℃
	Sensor	Platinum resistance PT100Ω/MV
	Heating System	Independent system, nickel-chromium alloy electric heating type heater
	Cooling System	Totally enclosed air-cooled single-stage compression refrigerate mode / original from French “Taikang” / totally enclosed air-cooled re-compression refrigerate mode
	Circulatory System	Temperature, low-noise, air-conditioning-type motor. Multi-vane centrifugal wind wheel
Material	Outer Material	High-quality carbon steel plate. Phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment
	Inside material	SUS304 High-quality stainless steel light board
	Insulation Material	Rigid polyurethane foam, ultra-fine glass fiber cotton
	Insulation	Double-resistant high-temperature aging of silicone rubber  seal
Standard collocation		A set of Multi-heated glass window attached lighting, testing product shelf 2 pcs, test leads holes (25,50 mm) 1 pcs
Protector		Leak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection
Timer		0.1 to 999.9 (S,M,H)adjustable
Voltage		AC380V±10%,  50±0.5Hz  Three-phase five-wire system
Environmental Temperature		5℃ to 30℃ ≤85%R.H
annotation 1. Above data were measured at temperature (QT) 25℃ and no-load condition. 2. Can be customized non-standard-type high-low-temperature testing mechine according to uses   requirements



Detailed Configuration And Software Features:

1. Structure and Material：
2. Inner box material: mirror stainless steel plate (SUS 304 thick 1.0mm);
3. Outer box material: stainless steel plate (1.0mm thick);
4. Insulation layer design: effectively avoid condensation on the top of the box;
5. Insulation layer: insulation layer (rigid Polyurethane foam, 100mm thick);
6. Box door: single piece door, single window, left opening. Flat recessed handle, back knob:SUS #304.Double insulation airtight tight, effectively isolate insulation from heat exchange inside and outside the box;
7. Observation window: three layers of vacuum glass, easy to observe the use of test products, size: 320X250X40mm.
8. Window anti-sweat: electric heating device, to prevent water condensation;
9. Lighting design: high brightness window lighting energy-saving lamps, easy to observe the test products;
10. Test hole: 50mm diameter on the left side of the body with a stainless steel hole cover and a silicone plug (optional multiple or 100mm);
11. 10.Machine pulley: easy to move (to adjust the placement) and strong bolts (fixed position) supporting the use;
12. Box shelves: stainless steel SUS # 304 square perforated steel shelves 2 pieces and 2 sets of tracks (to adjust the spacing);
13. Machine weight: about 200KG



1. Temperature Electric Heating Circulation System:
2. Heating system spinning: heat dissipation ring electric heater;
3. Humidification tube: the use of seamless stainless steel casing, insulation resistance greater than 50MΩ, and has anti-dry burning control;
4. Circulation system: The wind uses a multi-wing centrifugal rewind fan, with a reinforced shaft and high and low temperature resistant placement blades made of aluminum alloy and stainless steel extensions. Axial circulation motor to reach the forced return circle convection
5. Wind guide design: can be adjusted up, down, left, right, to ensure uniform distribution of temperature and humidity;
6. Control mode: balance temperature control system (BTHC), P.I.D. control SSR solid state relay to achieve high precision non-contact switch Control, so that the system of heating and humidification is equal to the amount of humidity and heat loss, so it can be long-term stable use.



III. Refrigeration system:

1. Refrigeration System:original French Taikang compressor (in accordance with the low-temperature range to determine the power);

    1.1 Overview: the heart of the compressor refrigeration system, using compression → condensation → expansion → evaporation (heat absorption) of the refrigeration cycle,thereby reducing the ambient temperature.

    1.2 Structure: A. shell B. motor C. cylinder D. piston

1. Starter and thermal protector F. Cooling system components

    1.3 Features:A.High efficiency and low turndown rate of large volume F-class insulated motor, ensuring high refrigeration capacity, low power consumption and operational safety.

1. Series 1/12-12 hp, ten series, hundreds of models. The most prestigious in the commercial refrigerator industry.

       C.Long-term application in different climatic conditions in different regions of China and Southeast Asia, time-tested, stable and reliable performance.

1. The best balance design, so that the compressor vibration is small, low noise, more stable operation.
2. Wide voltage design, single camera working voltage 180-240V, triple camera 340-440V, suitable for China voltage requirements.
3. Heat and Cold Exchange System: super high efficiency SWEP refrigerant heat and cold exchange design (environmental protection refrigerant R404A);
4. Heat Load Regulation:automatic adjustment of refrigerant flow, effectively taking away the heat emitted by the heat load;
5. Air-cooled condenser: finned type with heat dissipation motor;

  4.1 Overview: Air-cooled condenser a supporting in Freon refrigeration equipment with the use of air for cooling cooling equipment.

  4.2 Features:

1. The shell is made of high-quality steel plate, the surface is sprayed, corrosion-resistant, beautiful appearance, high strength, corrosion-resistant, easy to assemble and combine.
2. Adopt high efficiency external rotor fan with low speed and large air volume. Smooth operation and low noise.
3. Independent switch, safe and convenient. The fan motor has high waterproof performance (IP65) and long life.
4. The copper tube is made of high purity seamless purple copper tube, which has long life and is not easy to break and corrode.
5. Large contact surface to enhance the strength of fins and air disturbance effect.

               F.Applicable to R22/R134A/R404A/R407C refrigerants

5. Finned Evaporator: finned multi-stage automatic load capacity adjustment;

  5.1 Overview:

   Evaporator is a very important part of the four major components of refrigeration, low-temperature condensing gas through the evaporator, and the outside air for thermal exchange, liquefy heat absorption, to achieve the effect of refrigeration.

5.2 Structure:

   Mainly by the heating chamber and evaporation chamber consists of two parts. The heating chamber provides the heat needed for evaporation to the liquid, and induces the liquid to boil and vaporize; the evaporation

   Room so that the gas-liquid two phases are completely separated from the vapor produced in the heating room with a large number of liquid foam, to a larger space after the evaporation room, these liquids by self

  The role of their own cohesion or defoamer, etc. can be separated from the vapor. Usually the defoamer is located in the top of the evaporation chamber.

5.3 The Characteristics of Operation:

  Engineering, evaporation process only separates part of the solvent from the solution, and the solute still remains in the solution, therefore, evaporation operation that is a make the solution

  The separation process of volatile solvent and non-volatile solute in the solution. Because the vaporization rate of solvent depends on the heat transfer rate, so the evaporation operation is a heat transfer process.

  Heat transfer process, evaporation equipment for heat transfer equipment, however, evaporation operation and general heat transfer process comparison, there are the following characteristics:

1. Solution boiling point rises

  Because the solution contains non-volatile solute, therefore, at the same temperature, the vapor pressure of the solution is smaller than that of the pure solvent, that is to say, at the same

  Under the same pressure, the boiling point of the solution is higher than that of the pure solvent, and the higher the concentration of the solution, the more significant this effect is.

1. Material and process characteristics

  In the process of concentration, solutes or impurities are often deposited on the heating surface, precipitating crystals and forming a scale layer, which affects heat transfer; some solutes are thermally

  Some solutes are heat-sensitive, easy to deteriorate at high temperatures for too long a stay; some materials have greater corrosiveness or higher viscosity, etc.

1. Energy recovery

  The evaporation process is a solvent vaporization process, and because the latent heat of solvent vaporization is large, the evaporation process is a large energy consumption unit operation. Therefore, energy saving Energy saving is an important issue that should be considered for evaporation operation.

6. Other Accessories: Denmark filter drier        Japan Herumiya solenoid valve
7. System Features:according to different working conditions automatically switch the flow of refrigeration system, constant section cut off excess system to maintain energy-saving operation, cooling control multi-stage evaporator Combination of multi-stage evaporator, can obtain more uniform and efficient cold exchange efficiency and refrigeration output; flow control by the respective matching solenoid valve automatically adjusts flow control by the respective matching solenoid valve automatic adjustment.



1. Temperature and humidity control system：

1.Control Specifications: original South Korea TEMI300 digital controller, membrane button type data input.

  Temperature and humidity at the same time can be programmable controller, English and 3.1 “LCD liquid crystal display controller

      Accuracy: ±0.5℃       ±1%R.H

      Resolution: 0.1℃       1%R.H

2.It can hold 99 groups of program memory storage function, you can choose single-segment control or multi-segment program control.

  Operation in menu mode, direct programming and curing curve function and with RS-232 communication interface.

3.It can be connected to the computer, and the computer can directly monitor the programming operation, and also can record and print the data with the temperature recorder and print data! (Optional)

4.The main components of each system are equipped with safety check and interface devices, when an abnormal fault occurs, the Immediately through the LCD text display fault status and cut off the power

5.With cumulative time display function for machine running time and reference

6.Sensor: PT100 test sensor

7.With temperature and humidity control chart



1. Safety Protection Devices：
2. Earth leakage and overload protector, compressor overload protector
3. Over-temperature, over-humidity power-off protection
4. Water shortage and phase loss protection
5. Compressor high and low pressure protection
6. Humidifier (compressor) overheat protection
7. Temperature limit protection device, compressor current protection



Standard Accessories：

1. Stainless steel adjustable shed plate two groups, can change the distance at will
2. Vacuum glass see-through window, explosion-proof type
3. Wide-angle projection lighting equipment, using power-saving high-efficiency fluorescent lamps
4. The body is equipped with adjustable fixed shaft and movable wheel 4 groups and control indicator
5. Test cable lead out 50mmΦ hole a pair
