Fulfill The Standard:
1.GB11158 high temperature test chamber technical conditions
2.GB10589-89 low temperature test chamber technical conditions
3.GB10592-89 high and low temperature test chamber technical conditions
4.GB/T10586-89 Technical conditions of damp heat test chamber
5.IEC60068-2-1.1990 Low temperature test chamber test method
6.IEC60068-2-2.1974 High temperature test chamber test method
Use Description:

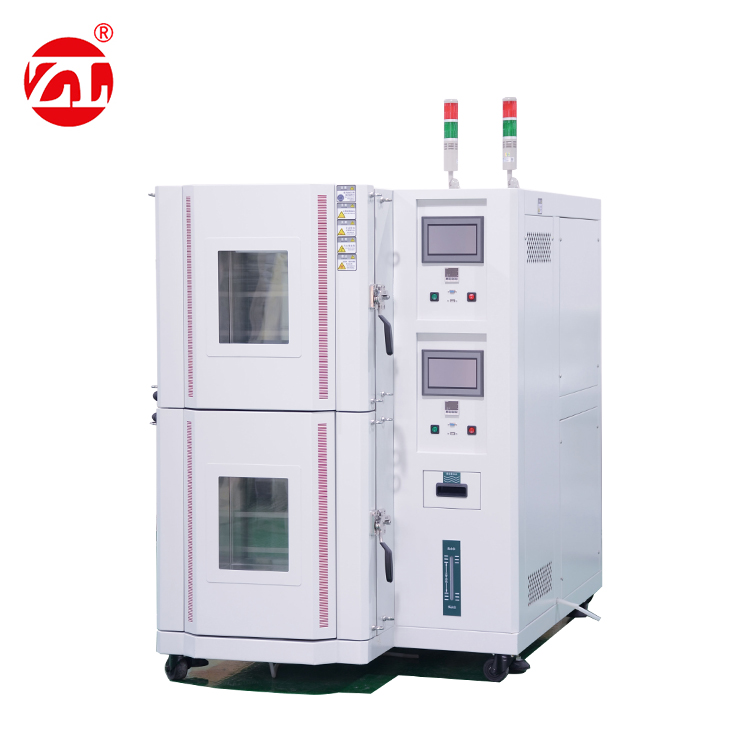

This test chamber provides a simulated environment of high temperature, low temperature, high humidity, and low humidity to detect the materials and strong attenuation of rubber, plastic, and electronic products before and after the test. The machine can also simulate the container environment to detect the discoloration and shrinkage of rubber and plastic under high temperature and high humidity. Test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. It is suitable for the quality inspection of industrial units in electronics, electrical appliances, batteries, universities, research institutes, inspection and quarantine bureaus, paper products, food, vehicles, auto parts, metals, chemicals, building materials and other industries.
Technical Parameter:
|
Inner Box Size |
W×H×D: 300×500×400 (mm) (2 independent control boxes) or customized size |
|
Outer Box Size |
W×H×D: 1150×2050×780 (mm) (approximate outer box size) |
|
Temperature Range |
-40℃~+100℃ |
|
Humidity Fan Range |
20% RH ~98% RH |
|
Control Stability |
Temperature ±0.5℃; Humidity ±2% |
|
Distribution Uniformity |
Temperature ±2.0℃; Humidity ±3.0% |
|
Temperature Rise Rate |
3℃/min (from -40℃ to 30℃ for about 25 minutes) nonlinear no-load |
|
Temperature Drop Rate |
rate of 1℃/min (from 30℃ to -40℃ for about 70 minutes) nonlinear no-load |
|
Temperature Limit |
maximum temperature +100℃; Minimum temperature-40℃ |
