Introduction：

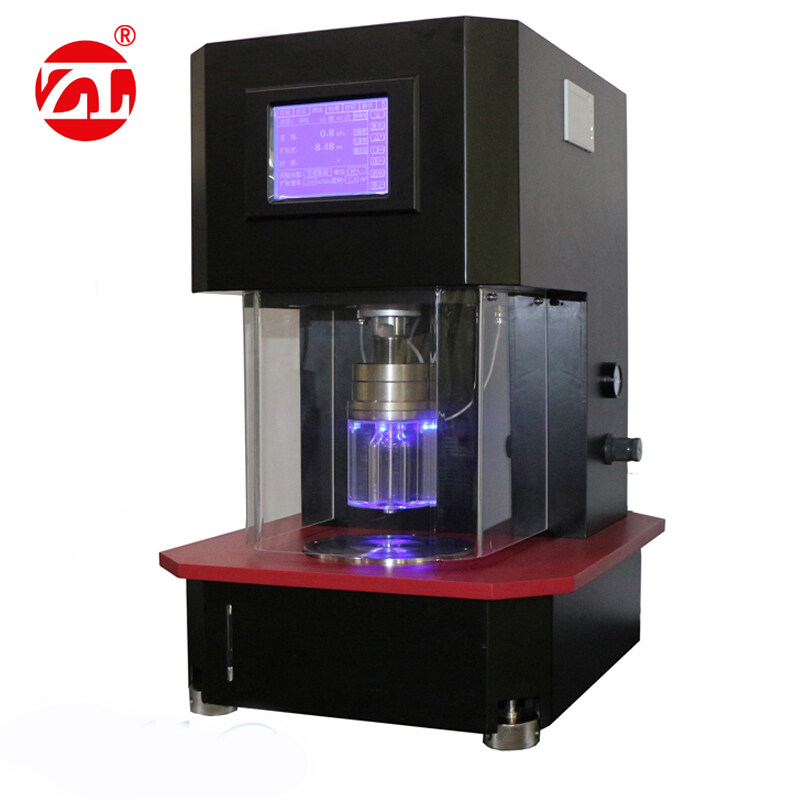

Textile fabrics having no particular directions cannot be tested its strength in tensile testers;a multidirectional force generated by hydrostatic pressure is applied on fabric to check the strength of that fabric, this phenomenon is called bursting strength testing. Automatic Hydraulic Diaphram Bursting Tester is specially designed to perform the bursting strength testing of kitted fabrics, with pneumatic control.It can also be used for leather, paper & card Boards etc.
Usage：
To determine the bursting strength and distension at burst of woven and knitted fabrics as well as technical textiles,non-wovens,bonded fabrics,plastics,leather (artificial and natural) and cardboard.
Technical Details：
Areas of Application:
Textiles:Knitted and woven apparel, Technical textiles
Nonwovens:Wet wipes, surgical gowns/masks
Plastics:Food packaging, bin liners, sacks and various plastic products
Medical:Organ patches, hernia patches, wound dressings, animal skin
Paper:Kitchen paper, Toilet tissue, Other paper products
Pressure Measurement Range:
|
Model |
-2 Model |
-10 Model |
|
Range |
2.00Mpa |
10.00Mpa |
|
Minimum Graduation Value |
0.001Mpa |
0.003Mpa |
|
Distension Measurement Range |
Up to 75 ± 0.02 mm |
|
a.Measuring Areas |
7.3cm² (Ø 30.5mm),50cm² (Ø 79.8mm) |
|
b.Optional |
7.1cm²(Ø30.1mm),7.55cm²(Ø31mm),7.8cm²(Ø31.5mm), 10cm²(Ø35.7mm),100cm²(Ø113mm) |
|
Hydraulic Oil Volume Rate Range And Accuracy |
8ml/min~500ml/min (adjustable) |
|
Measurement Range and Resolution of Bursting Strength |
0-2000KPa, resolution 1KPa |
|
Control Accuracy of Bursting Strength |
≤ ± 1% |
|
Expansion Measurement Range |
0.1-70mm, accuracy ± 0.1mm |
|
Unit of Measurement |
kPa – kgf/cm² – mmHg – lb/in² – atm |
|
Test Methods |
Constant Rate – Constant Pressure – Constant Distension –Timing |
|
Hydraulic System Rate of Flow (Adjustable) |
20-600mL/min |
|
Hydraulic Oil |
Glycerine 85%, distilled water 15% |
|
Safety Sensor |
Over scale auto-stop |
|
Diaphragm Rubber Thick |
≤ 2 mm |
|
Data Port |
RS232 port for printer connection and 3 pin Mini-DIN connector for PC. |
|
Dimensions |
630 x 440 x 675 mm |
|
Power Supply |
220V,50Hz or 110V,60Hz |
|
Air Requirements |
600-800kPa |
|
Weight |
150 Kg |
Accessories Supplied With The Instrument：
|
Main Unit |
01 No. |
|
Test Kit 7.3cm² (Ø 30.5mm) and 50cm² (Ø 79.8mm) |
01 No.(each) |
|
Synthetic Rubber Diaphragms(Maufacturer James Heal) |
05 Nos. |
|
Diaphragm Unit Tightening wrench |
01 No. |
|
Air Pipe (To connect with compressor) |
01 No. |
|
Glycerol (500mL) |
01 No. |
|
USB software |
01 No. |
|
Power Cord |
01 No. |
|
This User’s Manual |
01 No. |
|
Inspection & Conformance Certificate |
01 No. |
Testing Standards：
ASTM D 3786 Standard Test Method for Hydraulic Bursting Strength of Textile Fabrics
Diaphragm Bursting Strength Tester Method
BS 4768 Determination of Bursting Strength and Bursting Distension
ISO 13938-1 Textiles – Bursting properties of fabrics, Hydraulic method for determination of bursting strength and bursting distension
ISO 2758 Paper – Determination of bursting strength
ISO 2759 Board – Determination of bursting strength
ISO 3303 Rubber – or plastics-coated fabrics – Determination of bursting strength – Hydraulic method
WSP 030.1.R3(12),BS 3424(PT6),ERT 80-4-20,EN 12332-2,IWS TM 29,ASTM D751,JIS L-1018
Test Procedure：
The Burst Tester is designed for measuring the bursting strength of fabric materials subjected to an increasing hydrostatic pressure. This pressure is applied to a circular region of the specimen via an elastic diaphragm. The specimen is firmly held round the edge of this circular region by a pneumatic clamping device. When the pressure is applied, the specimen deforms together with the diaphragm. The bursting strength corresponds to the maximum pressure supported by the specimen before failure. Identical, in the principle to the multi-directional tensile test, Ball Burst Method for Fabrics, this measurement is independent from the cutting direction of the sample (machine or cross) since the failure naturally occurs in the least resistance direction.
Salient Features：
1.Touch screen panel for a simple and intuitive use of the instrument.
2.Pneumatic operated clamping ensures repeatable test result.
3.Automatic test cycle with breaking detection and auto-return to initial test position.
4.Smooth precision engineered components for excellent performance.
5.Safety protection around the measuring area and illuminated viewing area can easily view tests in progress.
6.Test methods:Constant Rate – Constant Pressure – Constant Distension –Timing
7.Maximum distension height 75mm.
8.Equipped with cross mode to indicate strength of rubber diaphragm at the time of determining true value of bursting strength of sample.
9.Glycerol deposit store of 200 cc capacity, facilitating a easy drain of the air out of the system.
10.PC & PRINTER connection.
11.Supplied with calibration & inspection certificates.
