Product Overview:

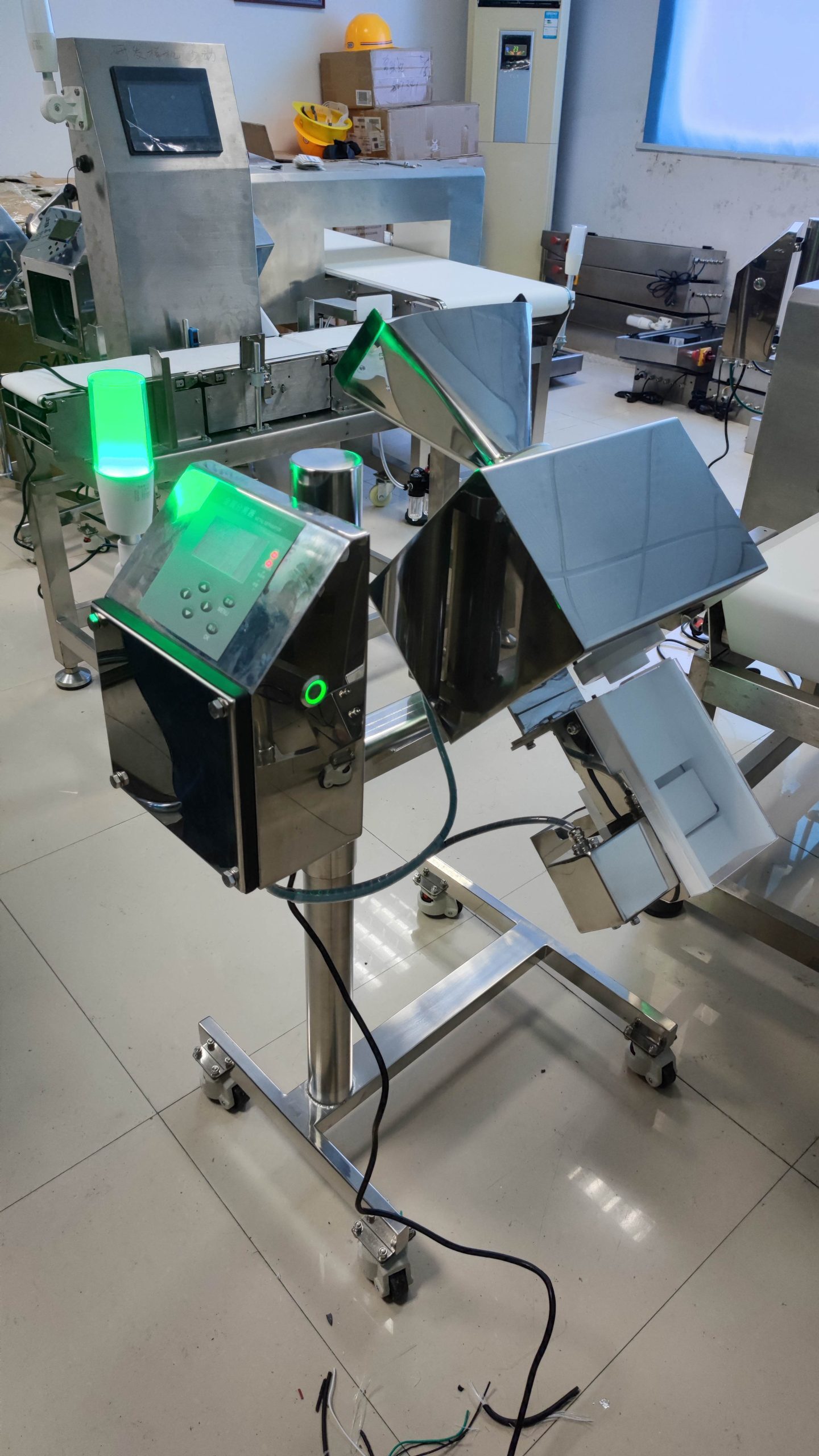

Pharmaceutical Metal Separator is specially designed for pharmaceutical and health‑care industries requiring ultra‑high detection accuracy. Adopting German‑based technology, it delivers ultra‑high sensitivity and stable reliable performance, and can rapidly reject products contaminated with metal foreign bodies.
Scope of Application:
Suitable for detecting metal contaminants in pills, tablets, capsules, granule instant drinks and fine powders.
Product Features:
Human‑oriented intelligent operating system with 7‑inch high‑definition touch screen for intuitive and convenient operation. The user‑friendly interface allows operators to obtain valid information easily without complicated operations.
With unique high precision, it can detect tiny metal fragments inside pharmaceuticals. Maximum throughput reaches approximately 15,000 pieces per minute.
Capable of handling various pharmaceutical products. Compact frame design saves installation space. It can work in conjunction with tablet presses, capsule fillers, tablet sifters and elevators, or be used standalone.
Constructed of SUS304 mirror‑finish stainless steel. The reject device and product‑passing tubes are made of food‑grade material to meet pharmaceutical‑grade requirements.
Product‑parameter memory function; stores detection parameters for up to 100 products. Saved settings can be recalled directly for next batch without readjustment.
One‑click auto‑setup function. Pass the test product through the detection channel 3‑4 times following the program; parameters will be automatically set and saved accurately without manual adjustment. Simple operation enables fast product change‑over on production lines and minimizes setup time.
Manual adjustment for frame height and tilt angle. Equipped with lockable casters for easy movement and cleaning.
Modular components for quick and easy maintenance. Product‑contact detection parts are fully detachable for cleaning. Anti‑vibration whole‑machine design with strong adaptability to environmental and temperature changes.
Access permission setting; independent passwords for administrator and operator accounts.
Multi‑language selection (Chinese, English, Japanese, etc. Custom languages available upon request).
Date‑filtered production log query for precise production monitoring. Reject‑count display for detailed product pass‑rate analysis.
Wide‑range power supply 110‑240V, 50‑60Hz, no external transformer required.
| غرض |
مواصفة |
| قطر أنبوب التصريف |
40 ملم |
| حساسية الكشف |
حديد (Fe): Φ0.2 مم
غير حديدي (NON Fe): Φ0.5 مم
فولاذ مقاوم للصدأ (SUS): Φ0.4 مم |
| مادة الهيكل |
فولاذ مقاوم للصدأ SUS304 بسطح لامع |
| ارتفاع المدخل |
680 مم (بحد أقصى +200 مم) |
| ارتفاع المخرج القابل للتعديل |
370 مم (بحد أقصى +200 مم) |
| مزود الطاقة |
110 فولت - 240 فولت، 50-60 هرتز |
| وضع الإنذار والرفض |
إنذار صوتي ومرئي، وإبعاد اللوحات |
| زاوية قابلة للضبط |
30° ~ 40° |
